Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD30T |
Minimum Order Quantity: | 1 SET |
Price: | 9000-17000 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 5-8 working day |
Supply Ability: | 300 SETS/MONTH |
Rate Loading Weight: | 3000 KG | Mast Stage: | 2 Normal /2 Fully Free/3 Fully Free |
---|---|---|---|
Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power: | 36.8/35.3/35.4 KW | Transimission: | Hydraulic Manual /Auto 2R,0,2F |
Fork Size: | 920/1070/1220/1500 Mm | Tire Type: | Air / Solid |
Front Tire: | 12-16.5-14PR | Rear Tire: | 27x10-12-12PR |
Overhead Guard Height: | 2210 Mm | Overall Length(without Fork): | 2940 Mm |
Overall Height: | 3000mm : 4350mm | Overall Height (Mast Extended/lowered): | 3000mm : 2185mm |
Total Weight: | 4900 KG | Front Overhang: | 545 Mm |
Angle Of Mast Inclination: | Backward 15° | Load Center: | 500 Mm |
Ground Clearance: | Wheel Base Center Point: 310 Mm | Wheel Base: | 1850 Mm |
Wheel Track: | 1250/1205 Mm | Minimum Turning Radius: | 2910 Mm |
Max.Travel Speed(no-loading): | 22 Km/h | Max. Lifting Speed(full Loading): | 440 Mm/s |
Highlight: | All-Terrain Forklift Truck,Goods Movement Forklift Truck,Reliable All-Terrain Forklift Truck |
1. Products Description

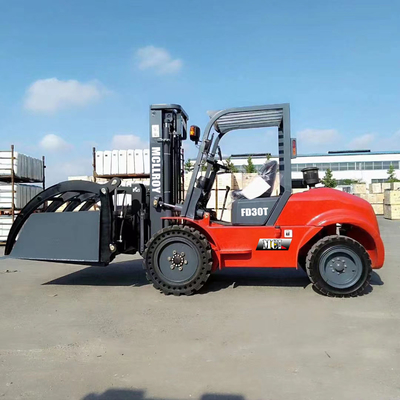

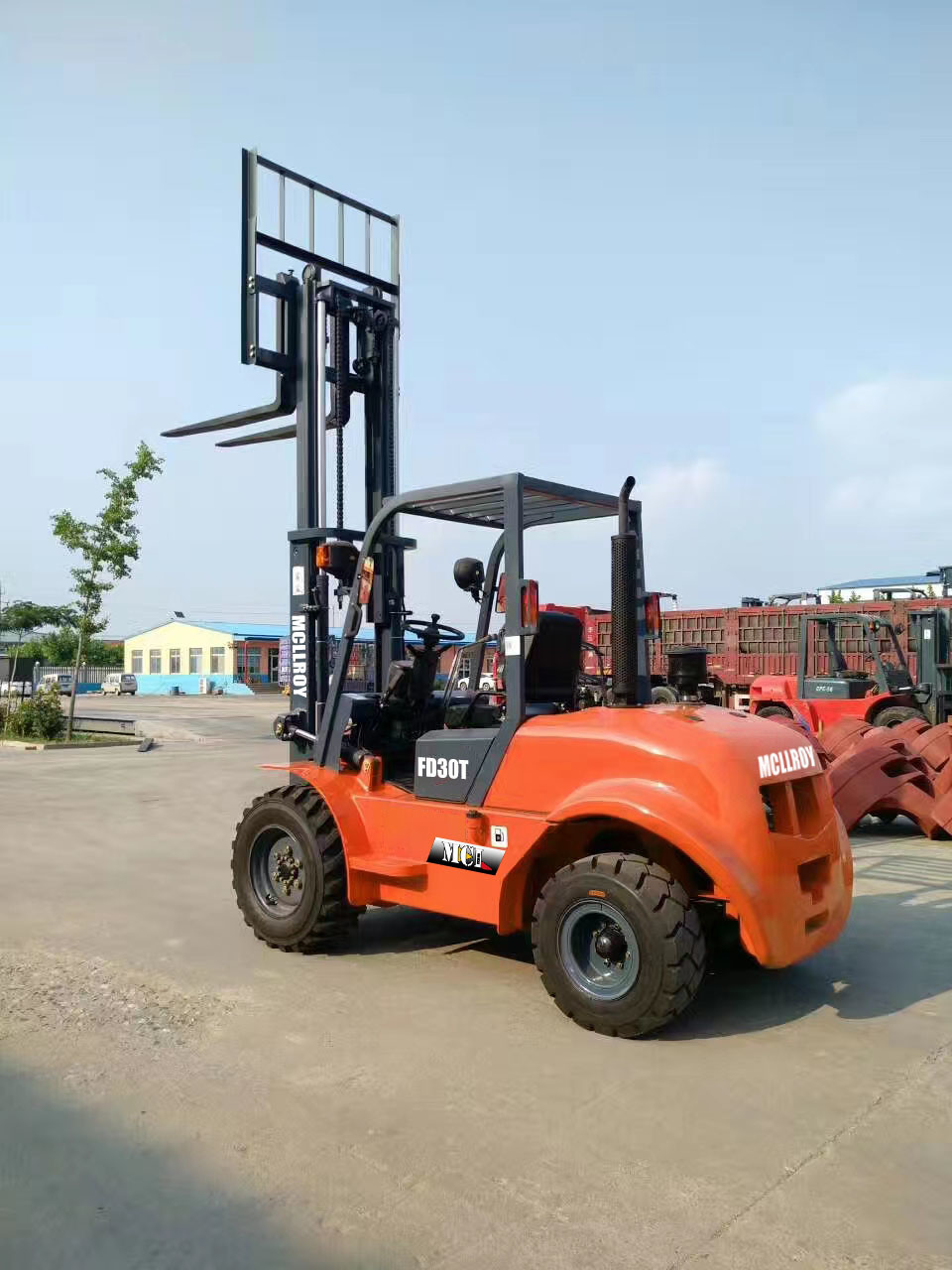

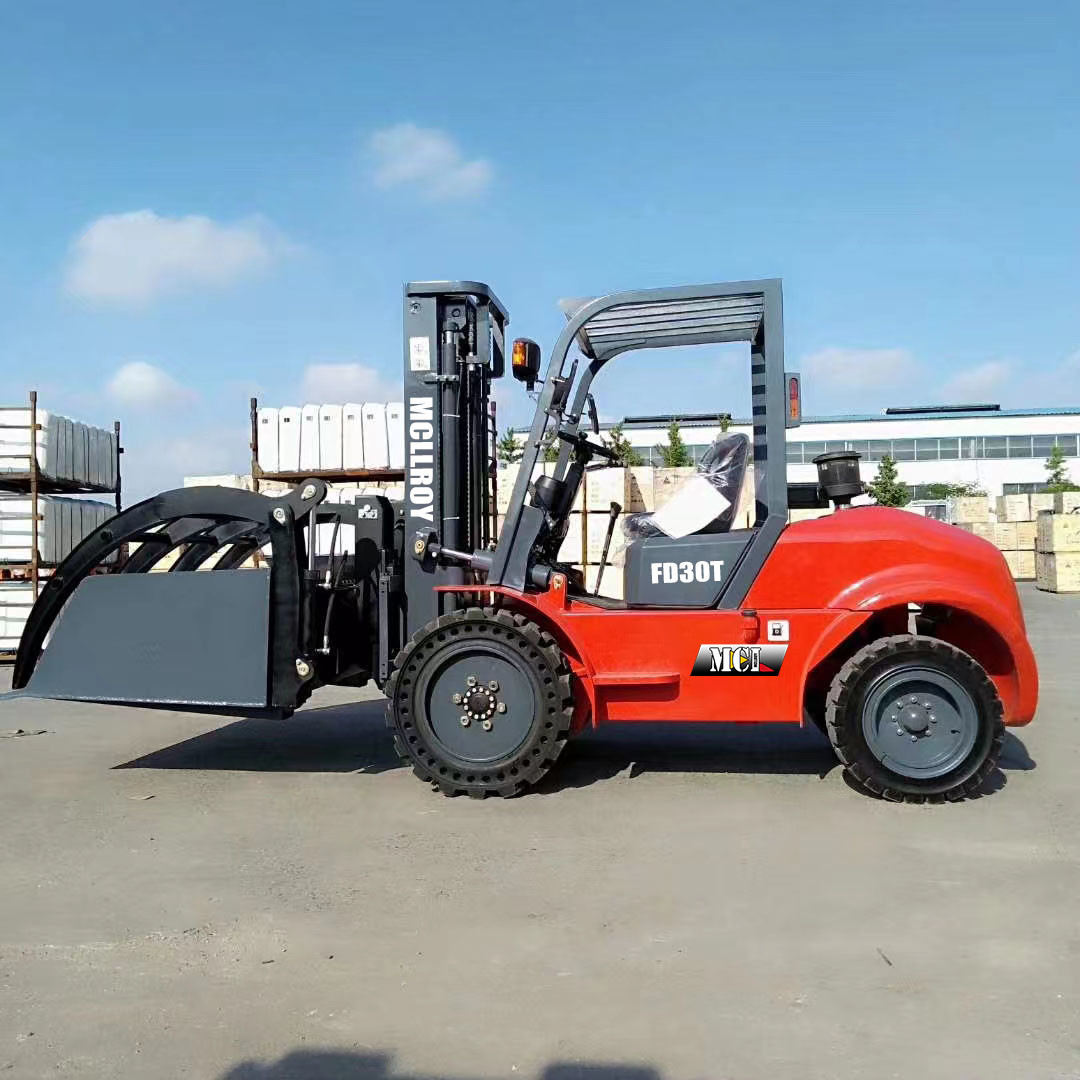

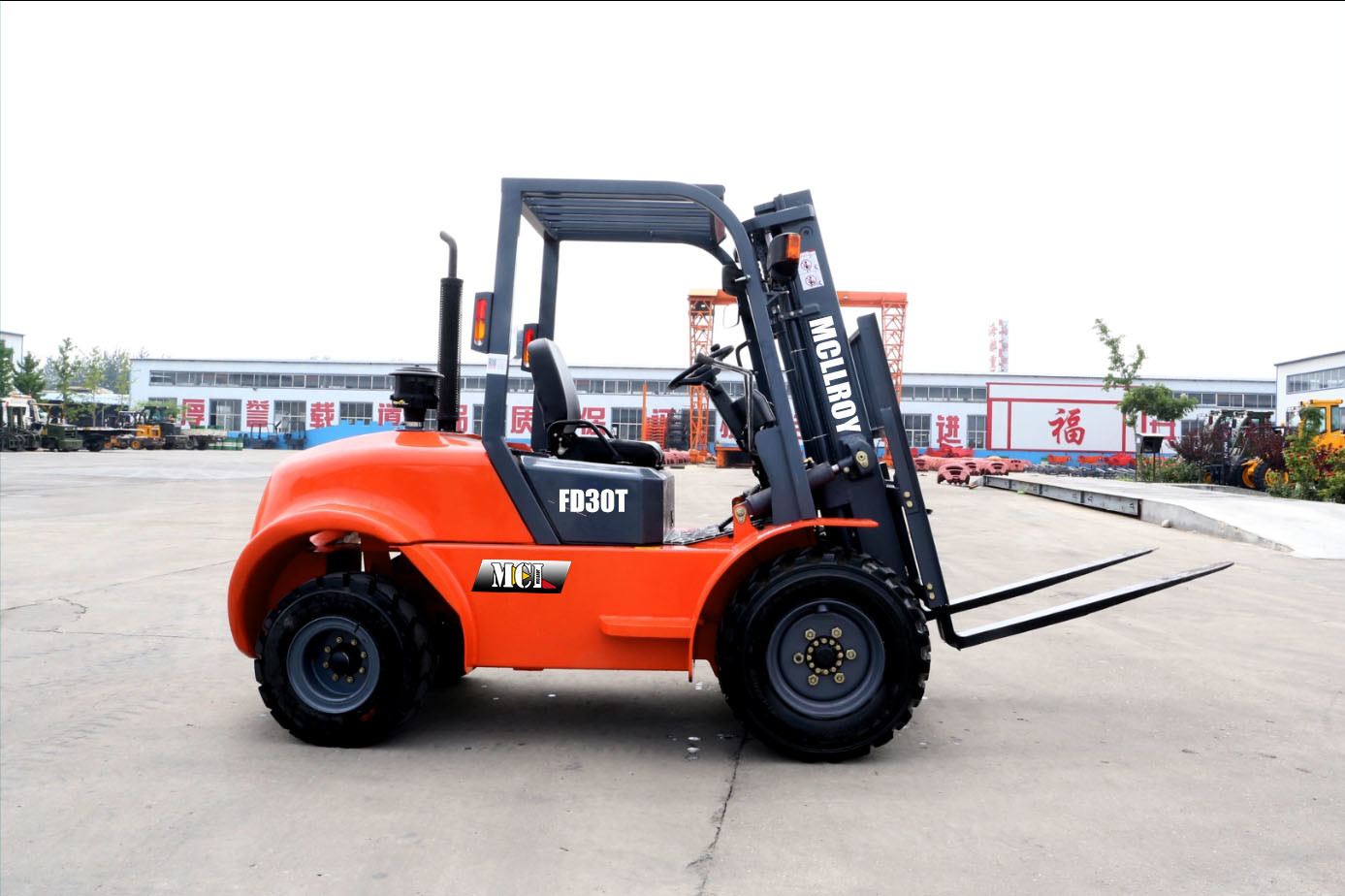

The MCLLROY’S FD30T-2/4 rough-terrain forklift is the ideal truck for extreme handling conditions. Quarries, mining operations, construction sites, wood industry are all activities for which this truck is extremely efficient. The MCLLROY masts offer excellent robustness on rough-terrain conditions, they lift up to 6.5 m. For a better performance, a wide choice of tires is available on this truck, you can adapt to all situations.
2. Specification
Specification | FD30T - 2WD |
Rate Loading Weight | 3000 KG |
Mast Stage | 2 Normal /2 Fully free/3 Fully free |
Lifting Height | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power | 36.8/35.3/35.4 KW |
Transimission | Hydraulic auto 1R,0,1F |
Fork Size | 920/1070/1220/1500 mm |
Tire Type | Air / Solid |
Front Tire | 12-16.5-14PR |
Rear Tire | 27x10-12-12PR |
Overhead Guard Height | 2210 mm |
Overall Length(without fork) | 2940 mm |
Overall Width | 1550 mm |
Overall Height (Mast extended/lowered) |
3000mm : 4350/2185 mm |
Total Weight | 4900 KG |
Front Overhang | 545 mm |
Angle of Mast inclination (forward /backward) |
5°/15° |
Load Center | 500 mm |
Ground Clearance | Mast point: 220 mm Wheel base center point: 310 mm |
Wheel Base | 1850 mm |
Wheel Track | 1250/1205 mm |
Minimum Turning Radius | 2910 mm |
Max.Travel Speed(no-loading) | 22 km/h |
Max. Lifting Speed(full Loading) | 440 mm/s |
3. Details and Advantages
The MCLLROY all-terrain forklift trucks are full of advantages::
Exceptional crossing capacity on all types of ground
Maximum safety for operators
Comfort of use Easy to drive
Several choices of masts available
Ergonomic driver's cab 360-degree visibility from the cab
High versatility
Wide choice of tires (off-road, but also mixed, grass/sand, low pressure)
Easy to maintain and service
4. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
No | Part No | Description |
26 | FD30(35)-L1023 | Pin |
27 | FD30(35)-L1024 | StrutL.H |
28 | FD30(35)-L1025 | Spring |
29 | FD30(35)-L1026 | Rod |
30 | FD30(35)-L1027 | Pin |
31 | FD30(35)-L1028 | Washer,spring |
