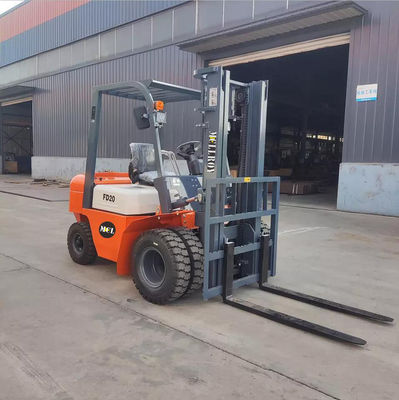

Welcome to MCLLROY！
| Place of Origin: | Shangdong Province |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | ISO/CE |
| Model Number: | FD20 CPC20 CDPC20 |
| Minimum Order Quantity: | 1 SET |
| Price: | 2000-4000 USD |
| Packaging Details: | bubble cotton，fixed fasten package |
| Delivery Time: | 5-8 working day |
| Supply Ability: | 100 SETS/MONTH |
| Loading Capacity: | 2000kg | Total Weight: | 3320kg |
|---|---|---|---|
| Fork Size: | 1220*125*45mm | Rear Tyre: | 6.00-9 |
| Max Working Speed: | 17/19km/h | Mast Tilt Angle: | 6°-12° |
| Overhead Guard Height: | 2070mm | ||
| High Light: | Diesel Powered Forklift 2000kg,Multifunctional Diesel Powered Forklift,Construction Diesel Powered Forklift |
||
1. Products Description
Engine:China Xinchai C490BPG engine, Japanese ISUZU or Mitsubishi Engine
Transmission:Electric hydraulic automatic transmission
Mast:standard duplex 3m mast(3m-6m duplex or triplex mast are optional)
Tires:Air tires (solid tires are optional)
Forks :standard 1070mm forks, fork extension are optional
Seat :Standard PU seat with safety belt, luxury fully suspension seat optional
Attachment:side shifter, fork positioner, all kinds of clamps such as bale clamp, paper roll clamp, etc.
2. Specification
| Model | FD20/CPC20/CDPC20 |
| Item | Data |
| engine power | 40KW |
| capacity | 2000kg |
| load center | 500mm |
| free lifting height | 150mm |
| wheel base | 1600mm |
| ground clearance | 110mm |
| turning radius | 2170mm |
| total weight | 3320kg |
| front tyre | 7.00-12 |
| rear tyre | 6.00-9 |
| fork size | 1220*125*45mm |
| max working speed | 17/19km/h |
| max gradeability | 20%-21% |
| mast tilt angle | 6°-12° |
| min angle aisle width | 3900mm |
| overhead guard height | 2070mm |
3. Details and Advantages
China Xinchai C490 engine
Japan Original Isuzu C240 engine
Japan Original Mitsubishi S4S engine
Electric hydraulic automatic transmission
steering wheel
Toyota seat with shock absorption function
rain-proof overhead guard
LED warning light
light protection frame
wide-view back mirror
tilt cylinder dust proof cover
copper radiator
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Steel plate cutting:
The cutting of the steel plate is closely related to the drawing design, workers' technique and cutting equipment.
Normally there are three types of cutting machines, you can see from the pictures here.
Flame cutting is used for iron plates over 40mm thick.
While plasma cutting is for steel plate that in between 20-40mm.Effectively process metal thickness of 0.3mm or more thermal processing(cutting, welding, brazing, hardening, painting, etc.)
Laser cutting is for steel plate between 8-20mm.
It is great for cutting that requires high precision. For example, cutting steel components for bumper, hood, and driver's cab. The advantages of laser cutting are: low temperature, so the plate is not likely deformed; the disadvantage is that it consumes a lot of power.
When the steel sheet is uneven or the cutting speed is not steady, a melting point or break-point will form; so during the cutting process, workers need to go back and forth to check.
