Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD30T |
Minimum Order Quantity: | 1 SET |
Price: | 9000-17000 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 5-8 working day |
Supply Ability: | 300 SETS/MONTH |
Rate Loading Weight: | 3000 KG | Mast Stage: | 2 Normal /2 Fully Free/3 Fully Free |
---|---|---|---|
Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power: | 36.8/35.3/35.4 KW | Transimission: | Hydraulic Manual /Auto 2R,0,2F |
Fork Size: | 920/1070/1220/1500 Mm | Tire Type: | Air / Solid |
Front Tire: | 12-16.5-14PR | Rear Tire: | 27x10-12-12PR |
Overhead Guard Height: | 2210 Mm | Overall Length(without Fork): | 2940 Mm |
Overall Height: | 3000mm : 4350mm | Overall Height (Mast Extended/lowered): | 3000mm : 2185mm |
Total Weight: | 4900 KG | Front Overhang: | 545 Mm |
Angle Of Mast Inclination: | Backward 15° | Load Center: | 500 Mm |
Ground Clearance: | Wheel Base Center Point: 310 Mm | Wheel Base: | 1850 Mm |
Wheel Track: | 1250/1205 Mm | Minimum Turning Radius: | 2910 Mm |
Highlight: | Customizable Attachments Off-Road Forklift Truck,Off-Road Forklift Truck |

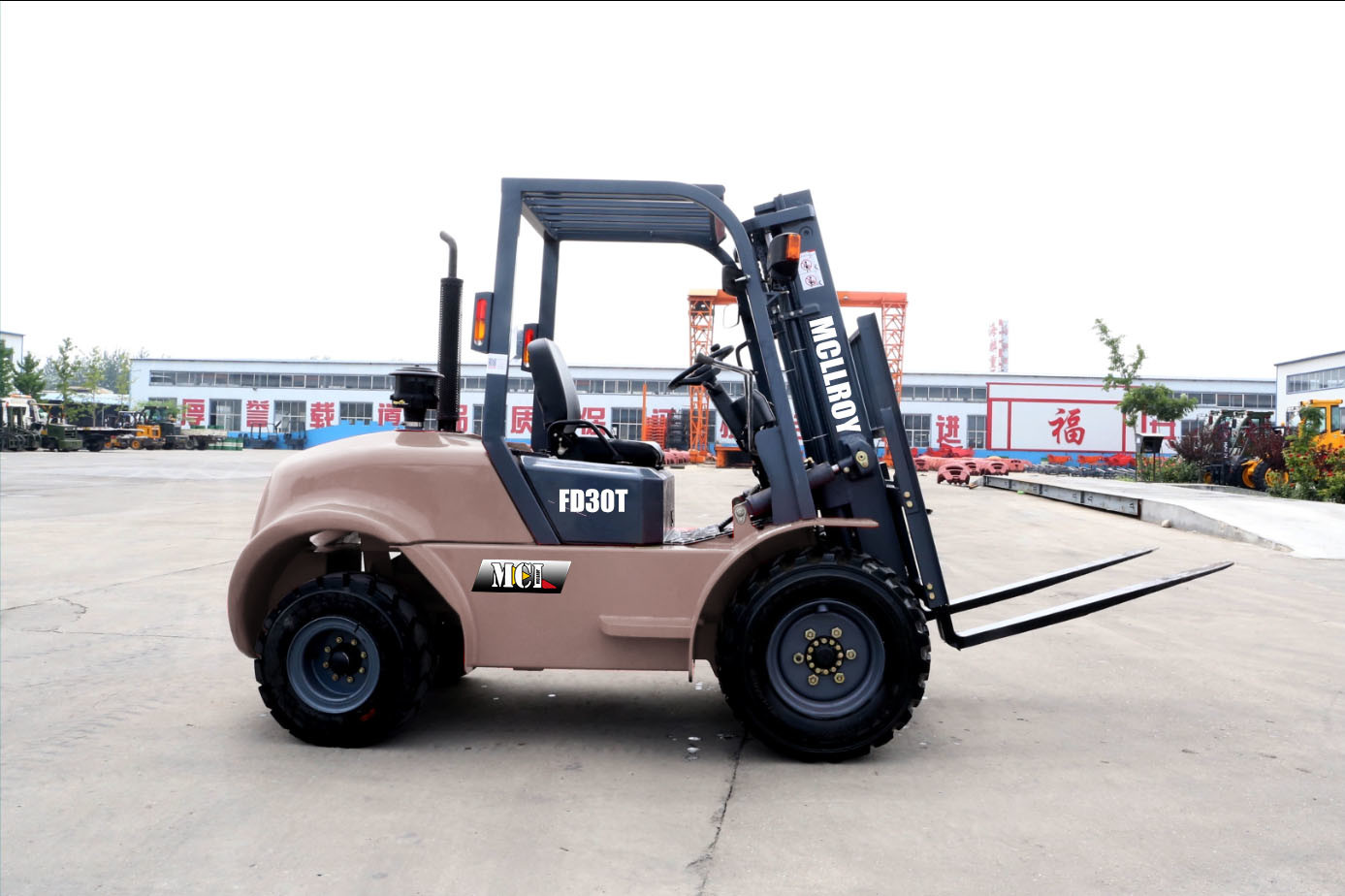

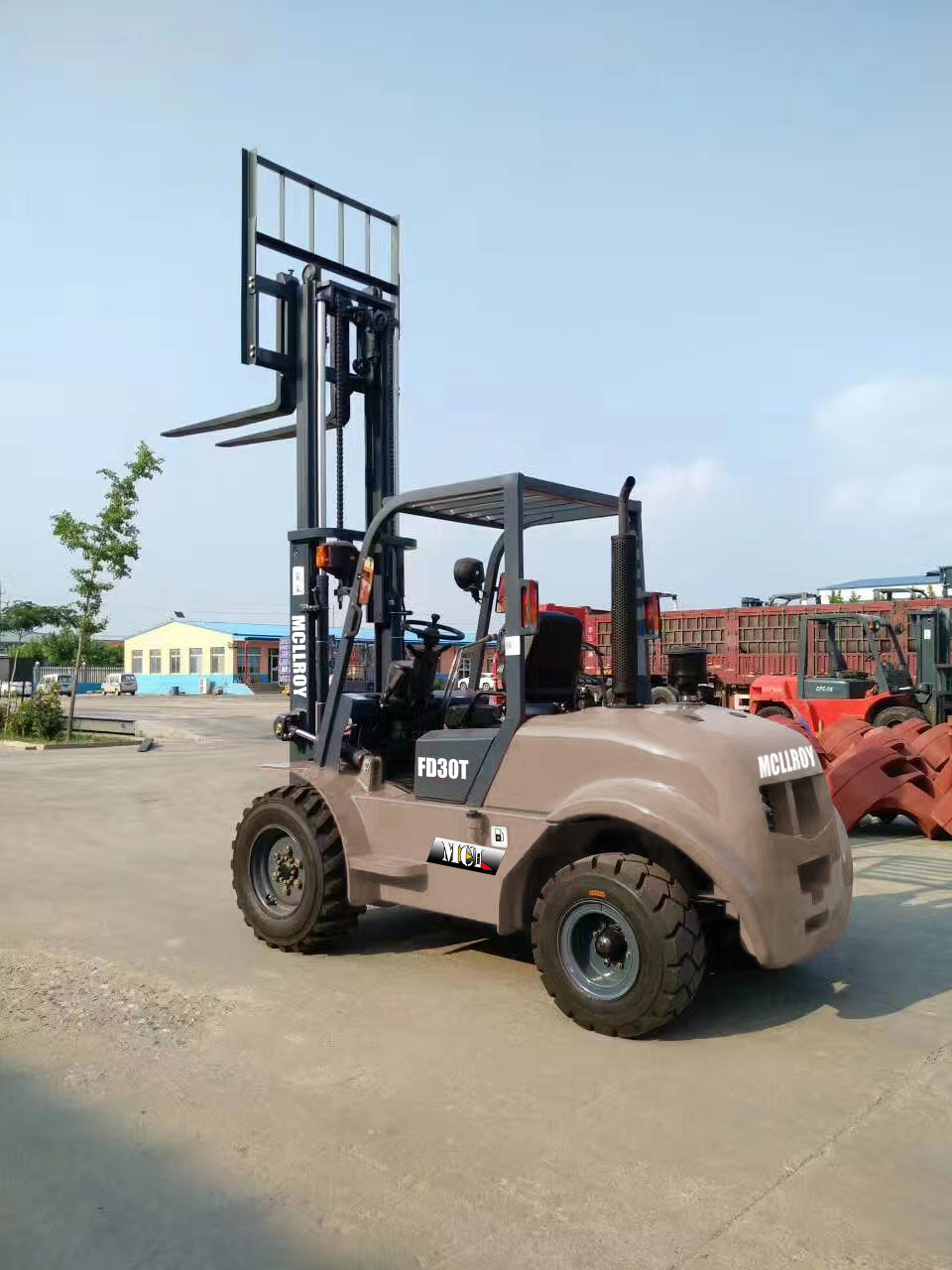

1. Products Description
Offering supreme performance and longevity, our two wheel drive rough terrain forklifts boasts two forward & one reverse gears resulting in higher speeds and greater grade ability. Perfect for moving heavy loads across rugged terrains, they can be easily operated in harsh environments such as mud, snow or ice. As a result, they make the perfect partner in lumber yards, retail, brick, block, and pipe applications. Tough and compact in every sense, the reliable truck is equipped with wide-base tires and enhanced brakes which provide ultimate traction. This allows operators to drive them over uneven or loose terrain and climb slopes as great as 45 degrees.
2. Specification
Specification | FD30T - 2WD |
Rate Loading Weight | 3000 KG |
Mast Stage | 2 Normal /2 Fully free/3 Fully free |
Lifting Height | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power | 36.8/35.3/35.4 KW |
Transimission | Hydraulic auto 1R,0,1F |
Fork Size | 920/1070/1220/1500 mm |
Tire Type | Air / Solid |
Front Tire | 12-16.5-14PR |
Rear Tire | 27x10-12-12PR |
Overhead Guard Height | 2210 mm |
Overall Length(without fork) | 2940 mm |
Overall Width | 1550 mm |
Overall Height (Mast extended/lowered) |
3000mm : 4350/2185 mm |
Total Weight | 4900 KG |
Front Overhang | 545 mm |
Angle of Mast inclination (forward /backward) |
5°/15° |
Load Center | 500 mm |
Ground Clearance | Mast point: 220 mm Wheel base center point: 310 mm |
Wheel Base | 1850 mm |
Wheel Track | 1250/1205 mm |
Minimum Turning Radius | 2910 mm |
3. Details and Advantages
The MCLLROY Rough Terrain Forklifts offer a load of benefits:
Excellent for transporting items across rocky, hilly, or unstable surfaces
Easy to use for maximum performance
Accurate steering response for precise lifting and driving
Improved shock absorbers and full floating seat for enhanced comfort
Tough and compact for driving on rough terrain surfaces
4. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |

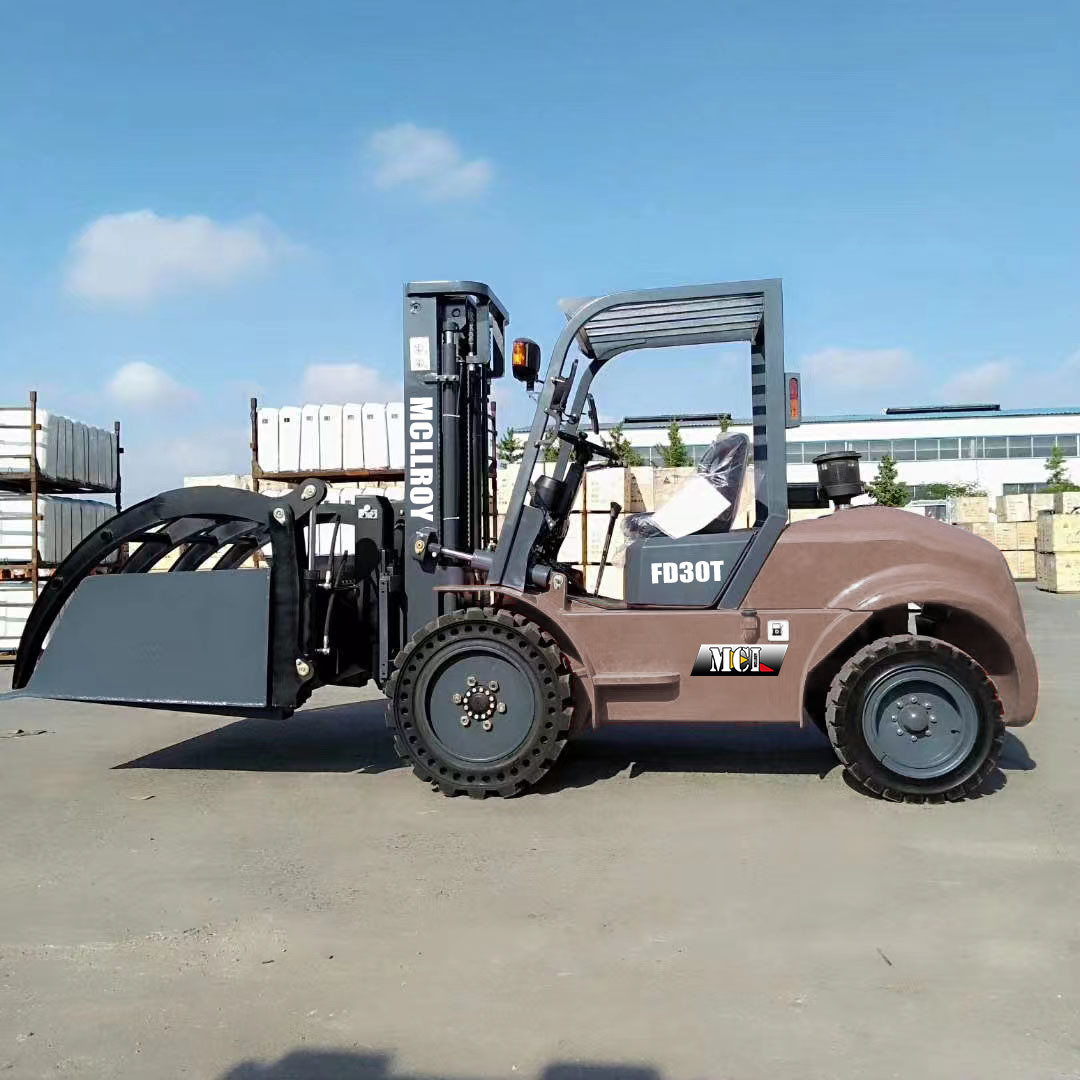

5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
No | Part No | Description |
26 | FD30(35)-L1023 | Pin |
27 | FD30(35)-L1024 | StrutL.H |
28 | FD30(35)-L1025 | Spring |
29 | FD30(35)-L1026 | Rod |
30 | FD30(35)-L1027 | Pin |
31 | FD30(35)-L1028 | Washer,spring |
