Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD30T |
Minimum Order Quantity: | 1 SET |
Price: | 9000-17000 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 5-8 working day |
Supply Ability: | 300 SETS/MONTH |
Rate Loading Weight: | 3000 KG | Mast Stage: | 2 Normal /2 Fully Free/3 Fully Free |
---|---|---|---|
Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power: | 36.8/35.3/35.4 KW | Transimission: | Hydraulic Manual /Auto 2R,0,2F |
Fork Size: | 920/1070/1220/1500 Mm | Tire Type: | Air / Solid |
Front Tire: | 12-16.5-10PR | Rear Tire: | 12-16.5-10PR |
Overhead Guard Height: | 2450 Mm | Overall Length(with / Without Fork): | 4160 /3090 Mm |
Highlight: | Heavy Duty Diesel Forklift Truck Tire,Solid Diesel Forklift Truck Tire |

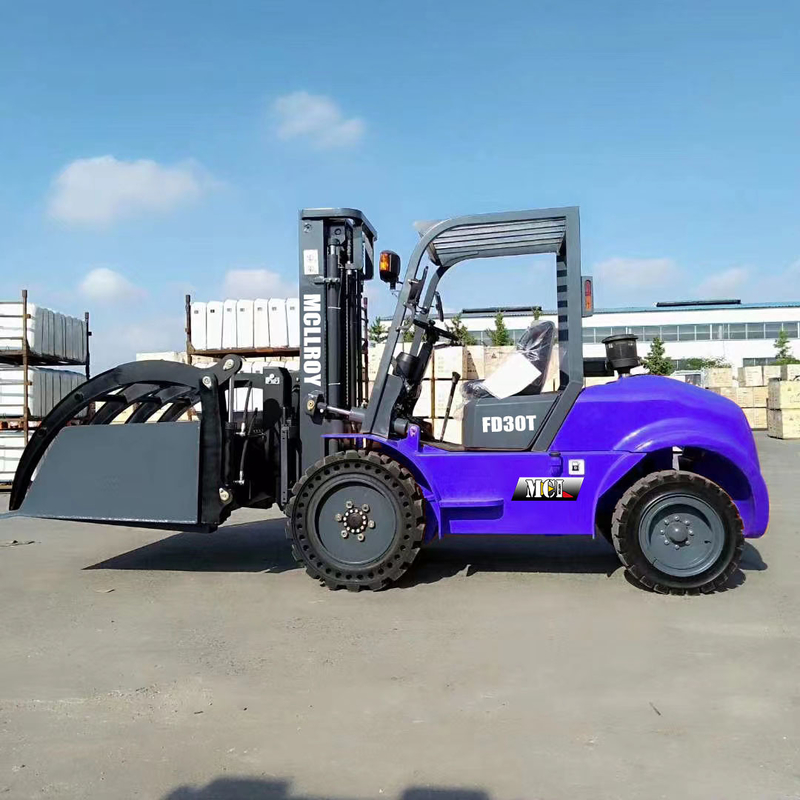

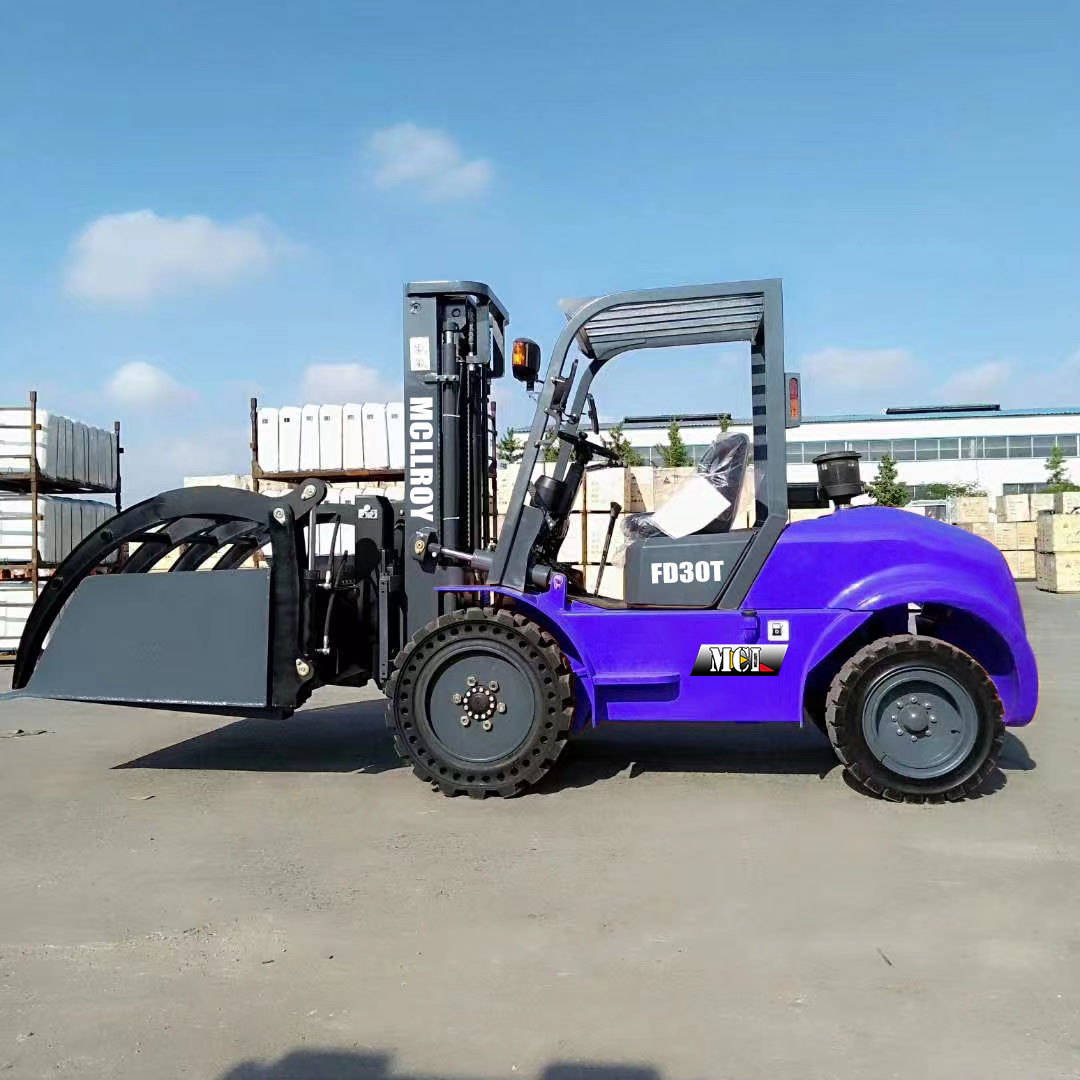

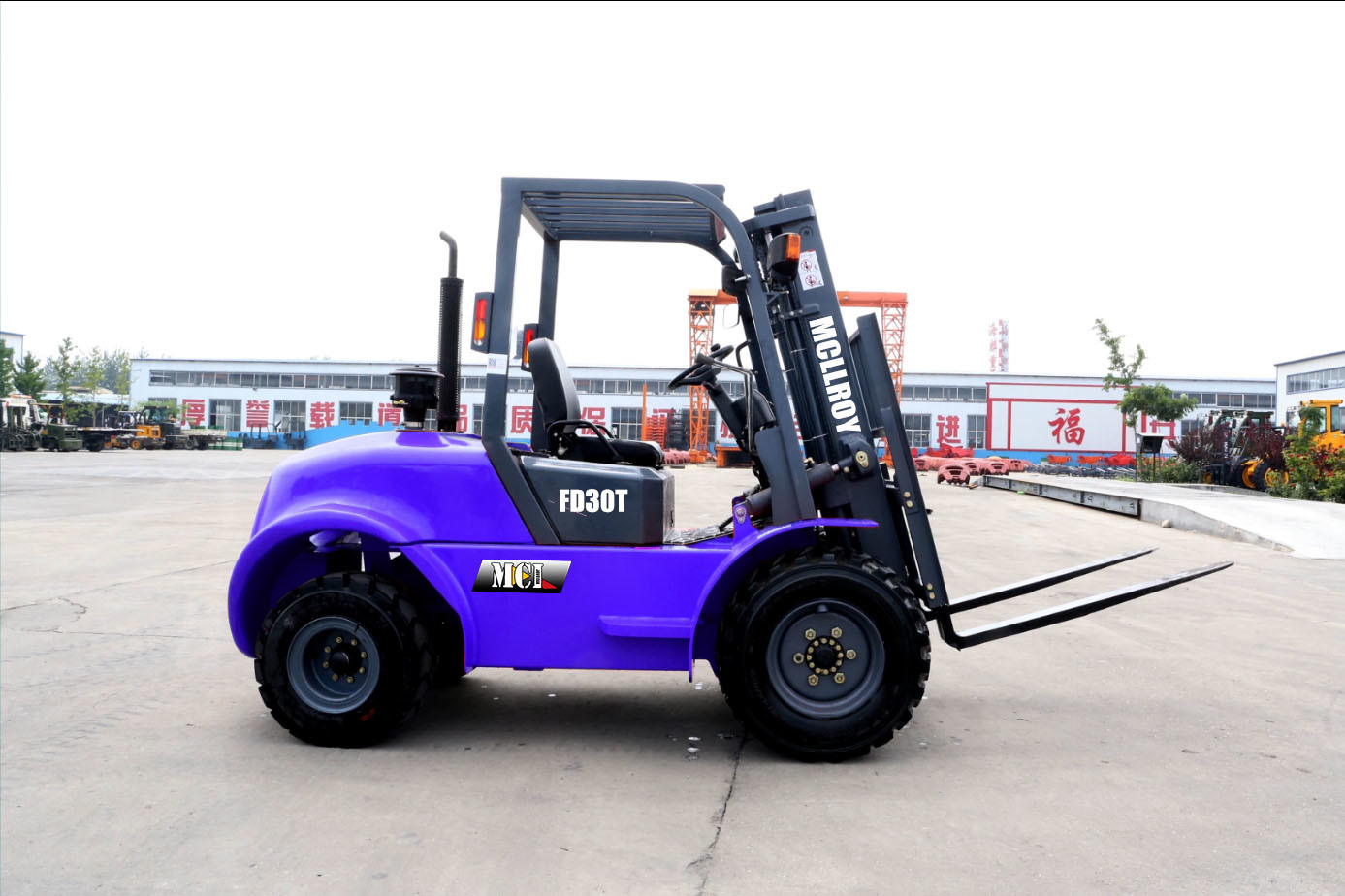

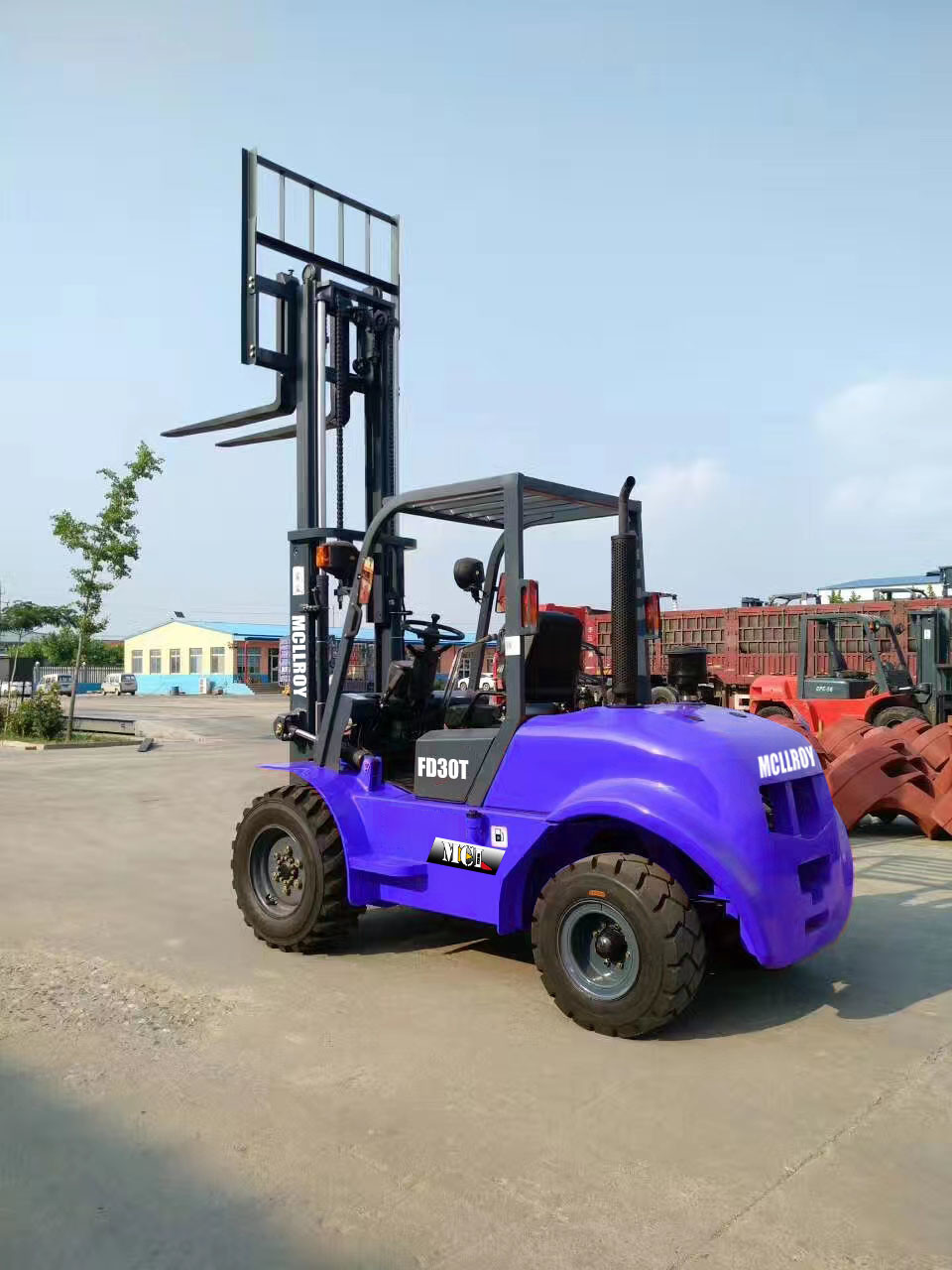

1. Products Description
When the going gets ‘rough’ these workhorse-like machines provide the Ideal solution, especially working in natural terrain and disturbed terrain construction sites. Enjoy greater manoeuvrability and accessibility in less favourable applications, thanks to their large heavy-duty pneumatic cushion tires, ensuring easier navigation through rough terrain.
For more arduous applications, MCLLROY-Forklift two and four wheel drive Rough Terrain Forklifts provide a perfect solution. Designed to excel in demanding outdoor applications, whilst providing ultimate driver comfort, our robust rough terrain forklifts guarantee maximum performance, no matter how hard the conditions are.
2. Specification
Specification | FD30T-4WD |
Rate Loading Weight | 3000 KG |
Mast Stage | 2 Normal /2 Fully free/3 Fully free |
Lifting Height | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power | 36.8/35.3/35.4 KW |
Transimission | Hydraulic Manual /Auto 2R,0,2F |
Fork Size | 920/1070/1220/1500 mm |
Tire Type | Air / Solid |
Front Tire | 12-16.5-10PR |
Rear Tire | 12-16.5-10PR |
Overhead Guard Height | 2450 mm |
Overall Length(with / without fork) | 4160 /3090 mm |
Overall Width | 1600 mm |
Overall Height (Mast extended/lowered) |
3000mm : 4350/2235 mm |
3. Details and Advantages
The MCLLROY Rough Terrain Forklifts offer a load of benefits:
Excellent for transporting items across rocky, hilly, or unstable surfaces
Easy to use for maximum performance
Accurate steering response for precise lifting and driving
Improved shock absorbers and full floating seat for enhanced comfort
Tough and compact for driving on rough terrain surfaces
4. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
No | Part No | Description |
26 | FD30(35)-L1023 | Pin |
27 | FD30(35)-L1024 | StrutL.H |
28 | FD30(35)-L1025 | Spring |
29 | FD30(35)-L1026 | Rod |
30 | FD30(35)-L1027 | Pin |
31 | FD30(35)-L1028 | Washer,spring |
