Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD20 CPC20 CDPC20 |
Minimum Order Quantity: | 1 SET |
Price: | 4500-6500 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 5-8 working day |
Supply Ability: | 300 SETS/MONTH |
Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | Engine Power: | 36.8/35.3/35.4 KW |
---|---|---|---|
Rate Loading Weight: | 2000kg | Overall Length(with/without Fork): | 3523/2453 Mm |
Overall Width: | 1160 Mm | Overall Height: | 3000mm: 4220/2060 Mm |
Total Weight: | 2660 KG | Load Center: | 500 Mm |
Working Pressure: | 18.5 MPA | Battery: | 12V/80Ah |
Front Tire: | 7.00-12-12PR | Rear Tire: | 6.00-9-10PR |
Wheel Base: | 1600 Mm | Wheel Track: | 970/970 Mm |
Minimum Turning Radius: | 2220 Mm | Max.Travel Speed(full Loading): | 19 Km/h |
Highlight: | Enhances Speed Maneuverable Forklift Truck,Accuracy Maneuverable Forklift Truck,Inventory Management Processes Maneuverable Forklift Truck |

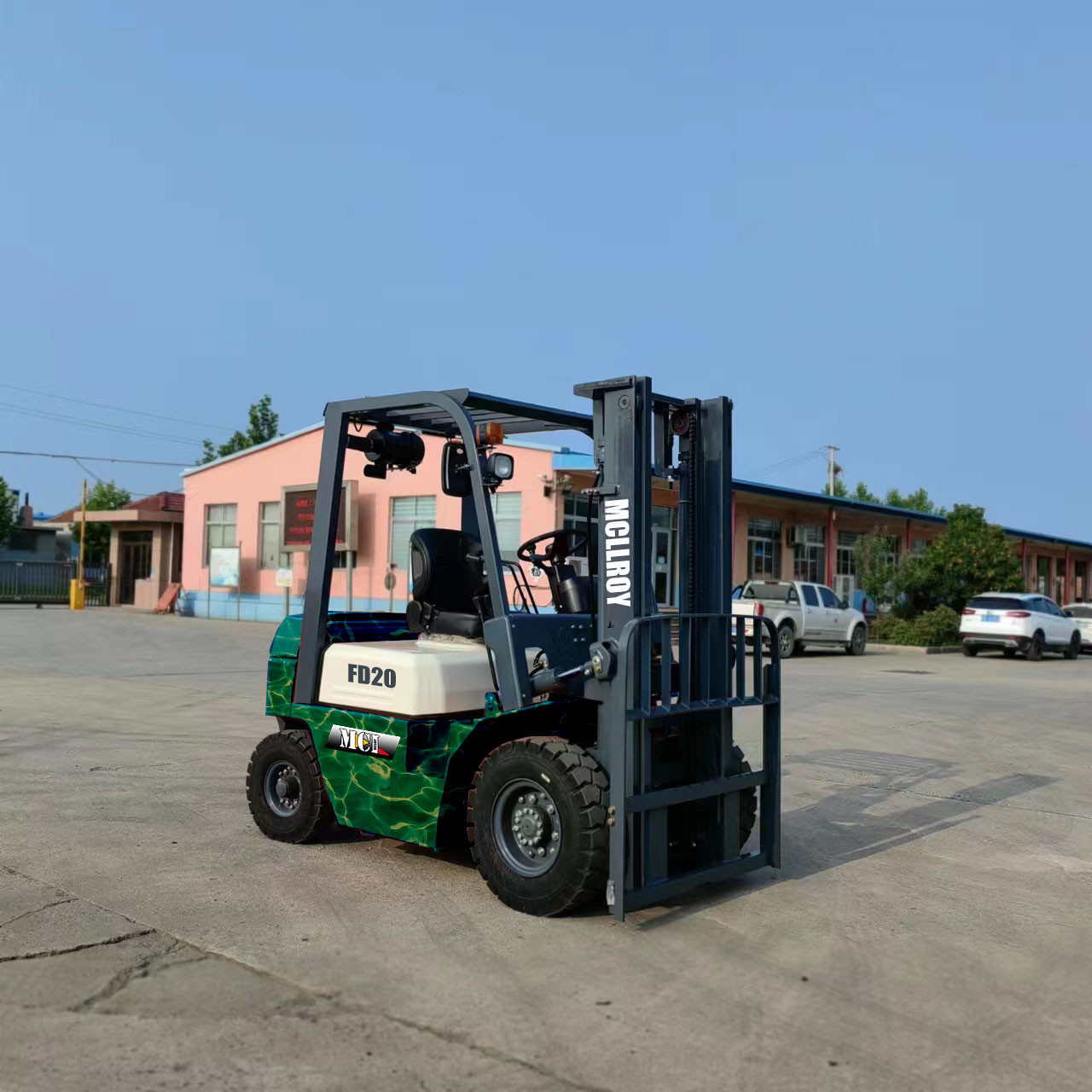

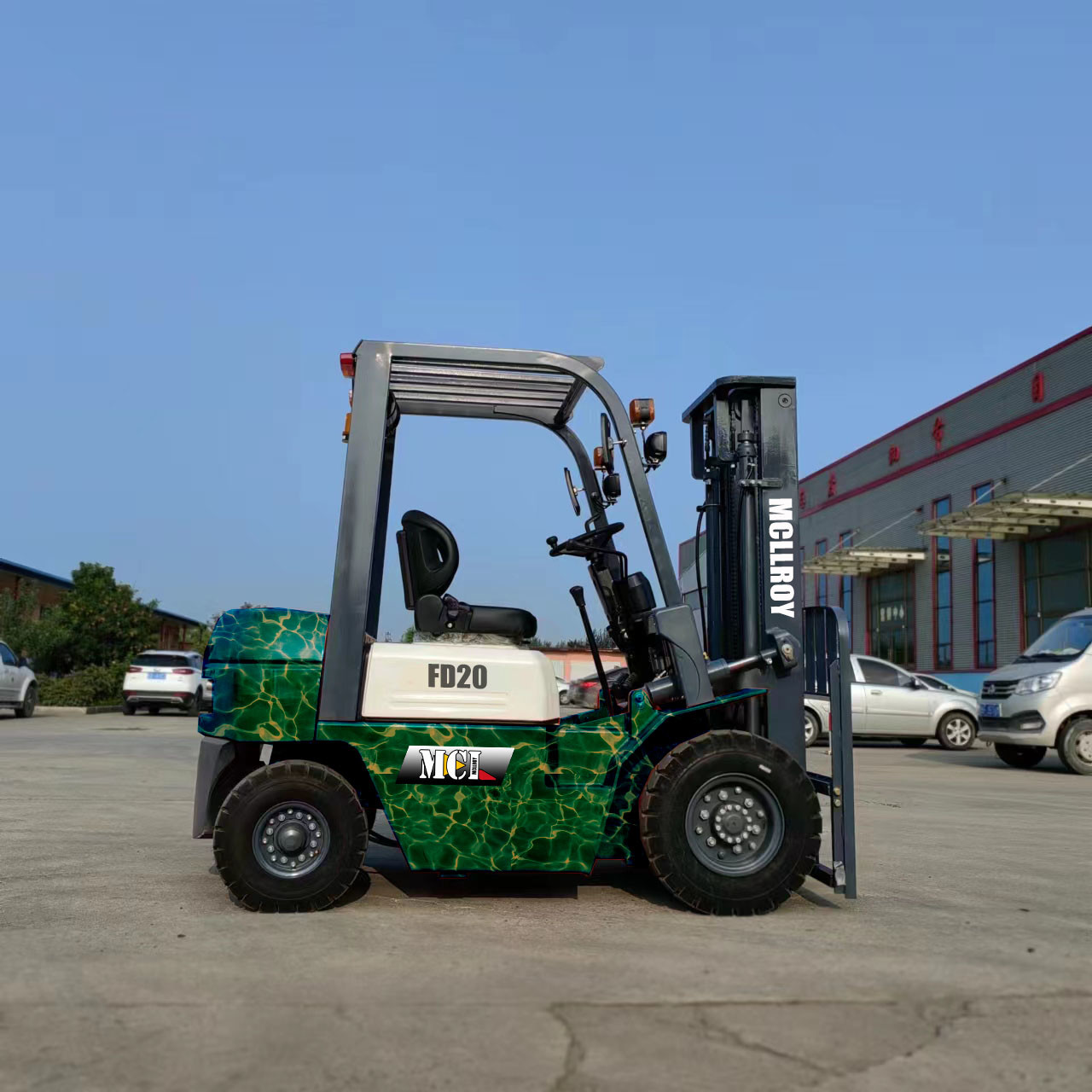

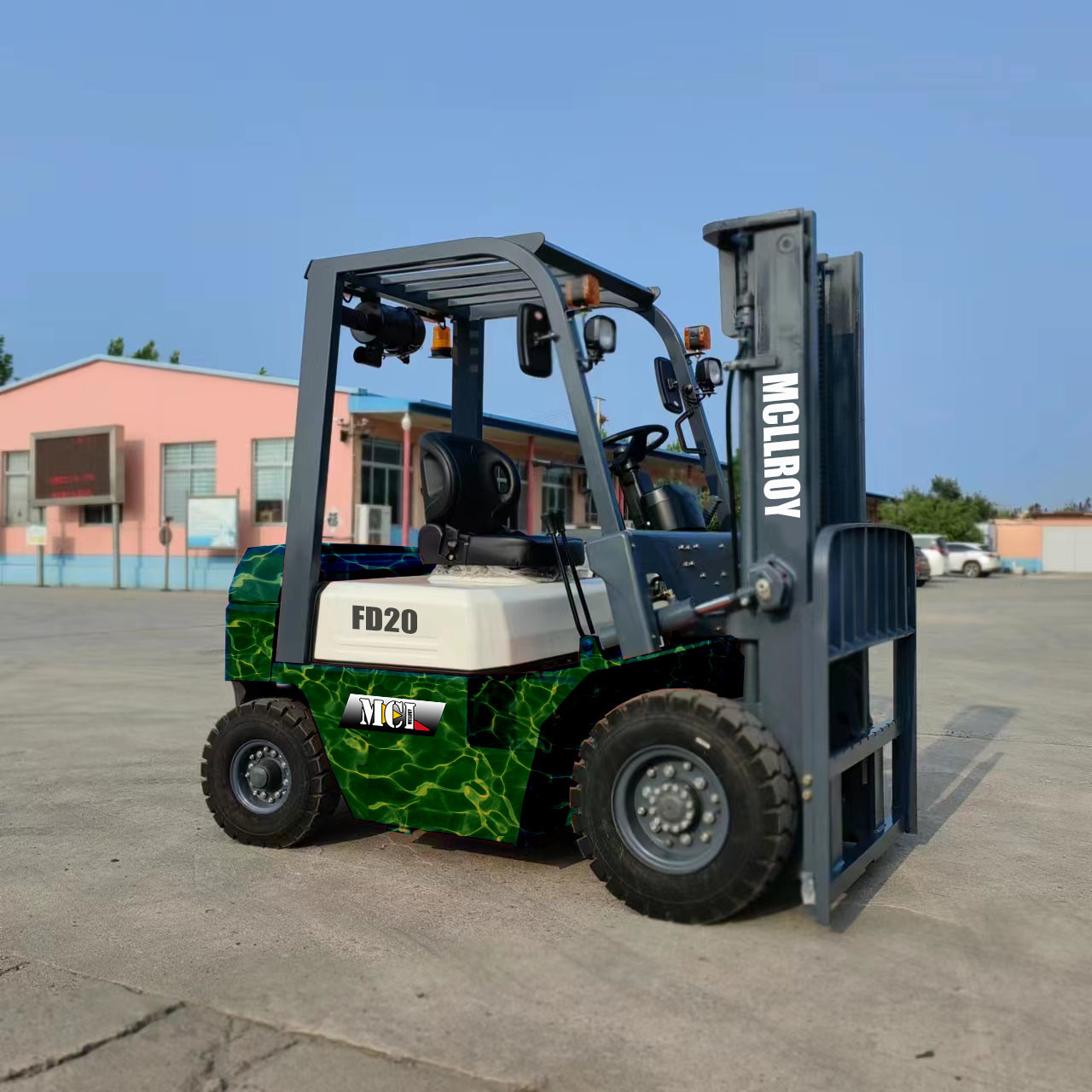

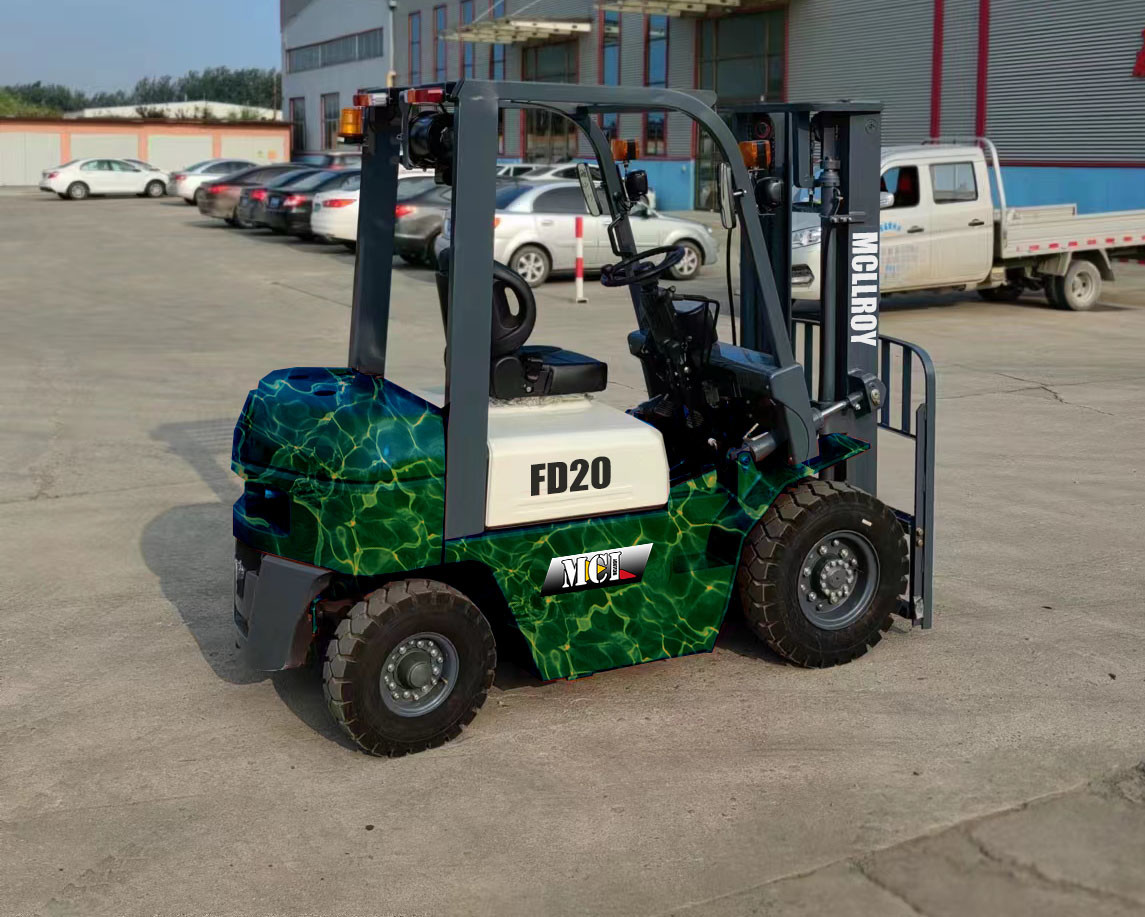

1. Products Description
The forklift, referred to as Green Diamond, embodies environmental sustainability, exceptional quality, reliability, and high investment value similar to diamonds, substantiating its title.
Operators will appreciate the minimal noise and vibration levels, comfortable working environment, and the latest advancements in Ergo Centric steering, hydraulics, and controls.
Safety features like the IPS2 Integrated Presence System and advanced braking systems are integrated to ensure operator safety.
Moreover, each system and component is carefully designed and chosen to minimize downtime and maintenance costs.
2. Specification
Specification | FD20 |
Rate Loading Weight | 2000 KG |
Mast Stage | 2 Normal /2 Fully free/3 Fully free |
Lifting Height | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power | 36.8/35.3/35.4 KW |
Transimission | Manual/Hydraulic auto 1R,0,1F |
Fork Length | 920/1070/1220/1500 mm |
Tire Type | Air / Solid |
Front Tire | 7.00-12-12PR |
Rear Tire | 6.00-9-10PR |
Overhead Guard Height | 2140 mm |
Overall Length(with/without fork) | 3523/2453 mm |
Overall Width | 1160 mm |
Overall Height (Mast extended/lowered) |
3000mm: 4220/2060 mm |
Total Weight | 2660 KG |
Front Overhang | 448 mm |
Free Fork Height | 100 mm |
Angle of Mast inclination (forward /backward) |
6°/12° |
Load Center | 500 mm |
Ground Clearance | 120 mm |
Wheel Base | 1600 mm |
Wheel Track | 970/970 mm |
Minimum Turning Radius | 2220 mm |
Max.Travel Speed(full loading) | 19 km/h |
Max. Lifting Speed(full Loading) | 550 mm/s |
Max. Traction Force(full loading) | 12.3 KN |
Maximum Permissible Gradient | 20 ° |
Battery | 12V/80Ah |
Working Pressure | 18.5 MPA |
3. Details and Advantages
Small diameter steering wheel, tilting steering column, and full hydrostatic steering enable precise and responsive maneuvering.
An adjustable steering column with a unique, time-saving memory function ensures the optimal driving position consistently.
Convenient access to the operator's compartment is facilitated by strategically placed grab bars and footsteps.
An open step, convenient grab bar, and seat hip restraint provide three secure aids for easy entry and exit from both sides.
Drivers can select simultaneous and independent fork control options based on their preferences.
4. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
No | Part No | Description |
A | FD20-35-L0003 | Transmissiln control linkage |
1 | FD20-35-L1031 | Knob |
2 | FD20-35-L1032 | Nut |
3 | FD20-35-L1033 | Lever(lnc.23) |
4 | FD20-35-L1034 | Bracket(left) |
5 | FD20-35-L1035 | Bolt |
6 | GB/T93-1987 | Washer |
7 | FD20-35-L1036 | Bolt |
8 | FD20-35-L1037 | Washer |
9 | FD20-35-L1038 | Shaft |
10 | FD20-35-L1039 | Link |
11 | FD20-35-L1040 | Pin |
12 | FD20-35-L1041 | Pin |
13 | GB/T93-1987 | Washer |
14 | FD20-35-L1043 | Bracket(lower) |
15 | FD20-35-L1044 | Boss |
16 | FD20-35-L1045 | Link |
FD20-35-L1046 | Link | |
FD20-35-L1047 | Link | |
17 | GB/T39-1988 | Nut(left) |
18 | FD20-35-L1049 | Bearing |
19 | GB/T39-1988 | Nut |
20 | FD20-35-L1051 | Link |
21 | FD20-35-L1052 | Bolt |
22 | FD20-35-L1053 | Bearing |
23 | FD20-35-L1054 | Bushing |
