Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD20 CPC20 CDPC20 |
Minimum Order Quantity: | 1 SET |
Price: | 4500-6500 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 5-8 working day |
Supply Ability: | 300 SETS/MONTH |
Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | Engine Power: | 36.8/35.3/35.4 KW |
---|---|---|---|
Rate Loading Weight: | 2000kg | Overall Length(with/without Fork): | 3523/2453 Mm |
Overall Width: | 1160 Mm | Overall Height: | 3000mm: 4220/2060 Mm |
Total Weight: | 2660 KG | Load Center: | 500 Mm |
Working Pressure: | 18.5 MPA | Battery: | 12V/80Ah |
Front Tire: | 7.00-12-12PR | Rear Tire: | 6.00-9-10PR |
Wheel Base: | 1600 Mm | Wheel Track: | 970/970 Mm |
Minimum Turning Radius: | 2220 Mm | Max.Travel Speed(full Loading): | 19 Km/h |
Highlight: | C240 Forklift truck,Low noise levels Forklift truck,Engine XinChai 490 BPG Forklift truck |

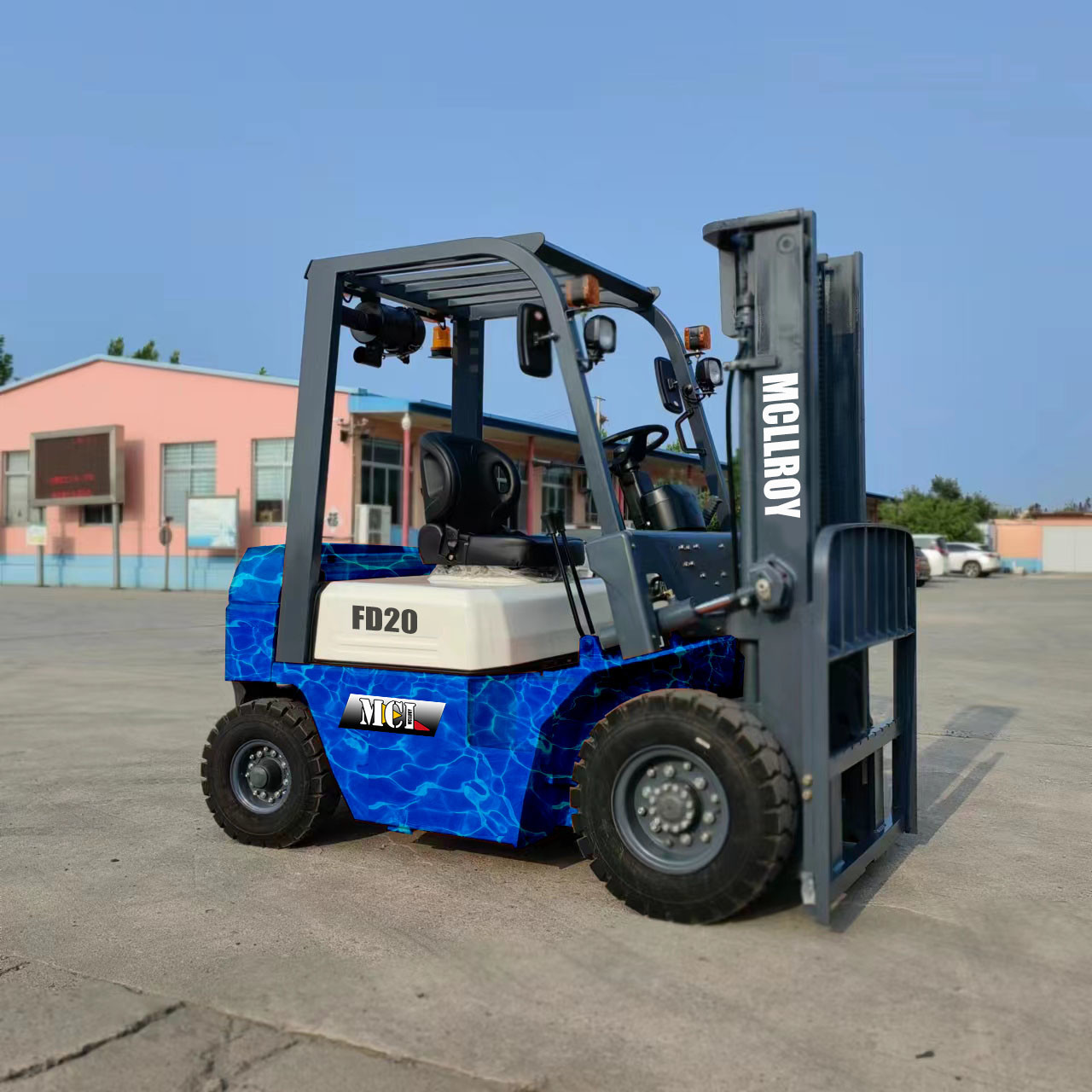

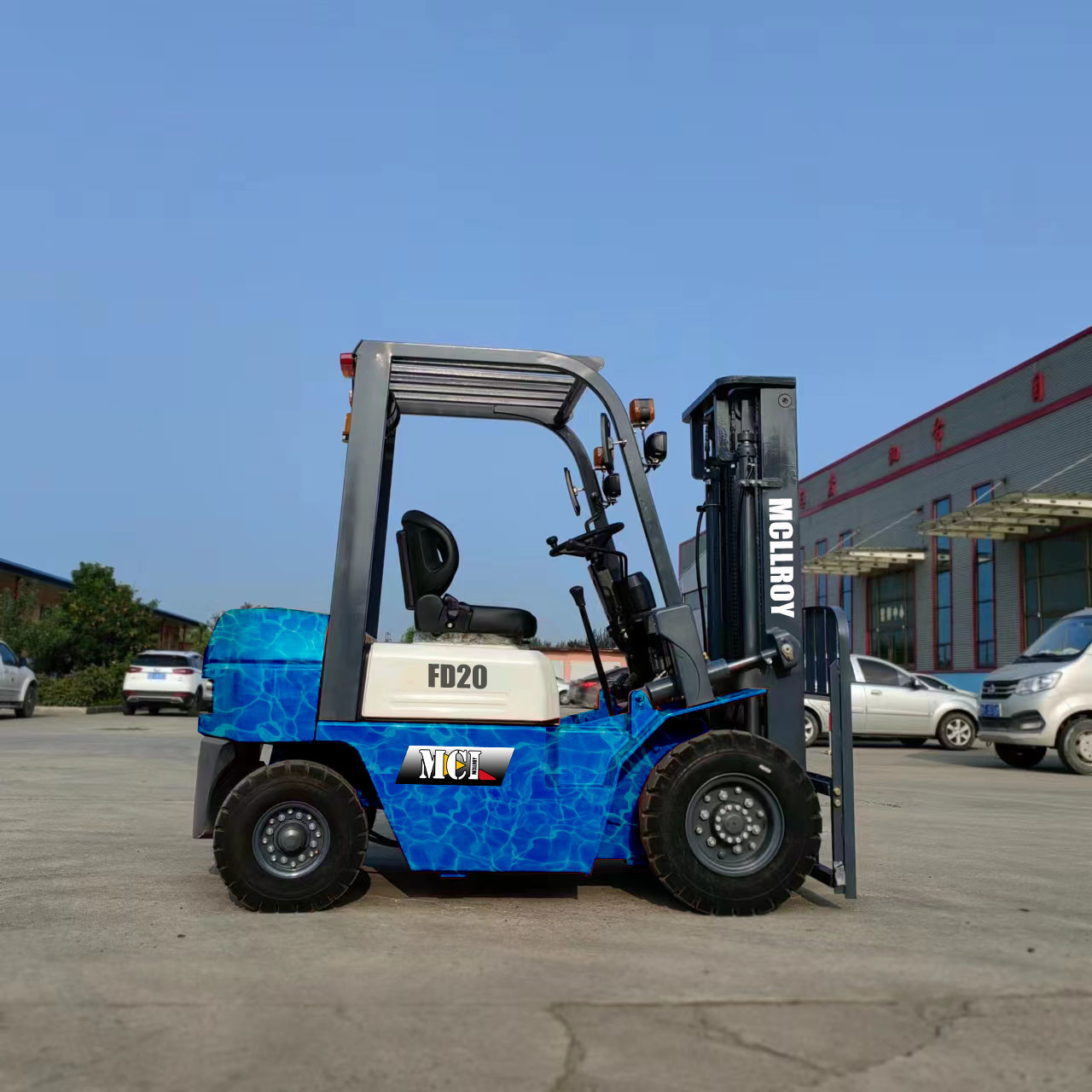

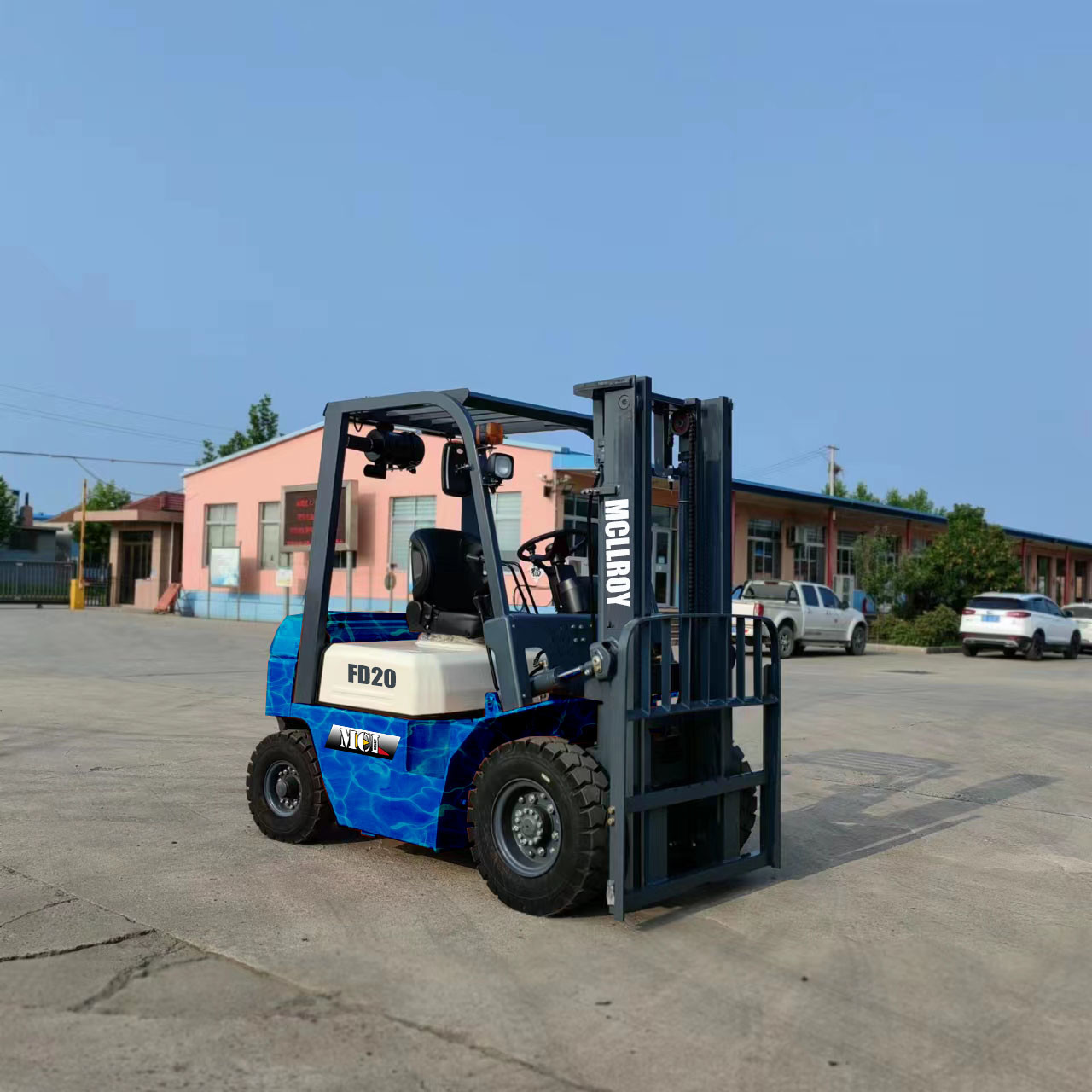

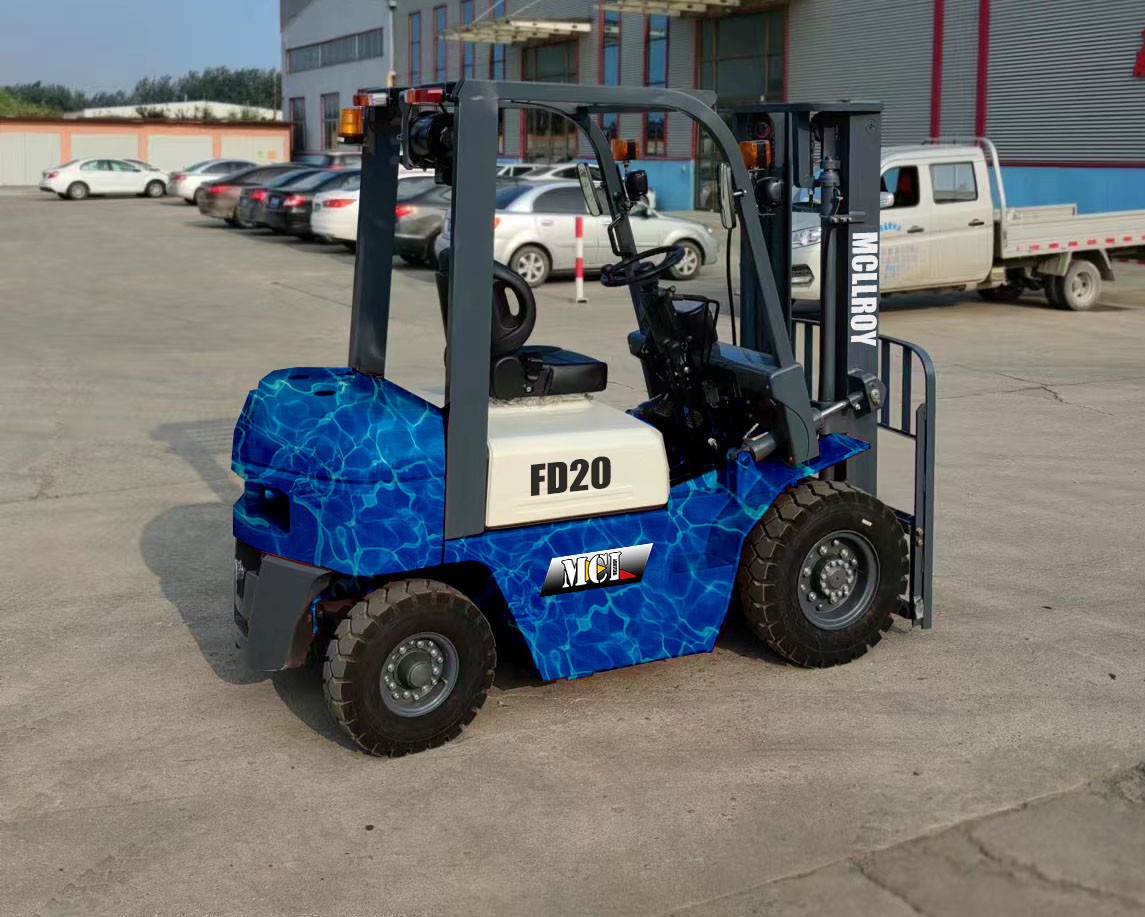

1. Products Description
The forklift, known as Green Diamond, exemplifies environmental sustainability, exceptional quality, reliability, and high investment value akin to diamonds, validating its designation.
Operators will value the low levels of noise and vibration, comfortable working environment, and the latest innovations in Ergo Centric steering, hydraulics, and controls.
Safety mechanisms such as the IPS2 Integrated Presence System and advanced braking systems are incorporated to guarantee operator safety.
Furthermore, every system and component is meticulously designed and selected to reduce downtime and maintenance expenses.
2. Specification
Specification | FD20 |
Rate Loading Weight | 2000 KG |
Mast Stage | 2 Normal /2 Fully free/3 Fully free |
Lifting Height | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power | 36.8/35.3/35.4 KW |
Transimission | Manual/Hydraulic auto 1R,0,1F |
Fork Length | 920/1070/1220/1500 mm |
Tire Type | Air / Solid |
Front Tire | 7.00-12-12PR |
Rear Tire | 6.00-9-10PR |
Overhead Guard Height | 2140 mm |
Overall Length(with/without fork) | 3523/2453 mm |
Overall Width | 1160 mm |
Overall Height (Mast extended/lowered) |
3000mm: 4220/2060 mm |
Total Weight | 2660 KG |
Front Overhang | 448 mm |
Free Fork Height | 100 mm |
Angle of Mast inclination (forward /backward) |
6°/12° |
Load Center | 500 mm |
Ground Clearance | 120 mm |
Wheel Base | 1600 mm |
Wheel Track | 970/970 mm |
Minimum Turning Radius | 2220 mm |
Max.Travel Speed(full loading) | 19 km/h |
Max. Lifting Speed(full Loading) | 550 mm/s |
Max. Traction Force(full loading) | 12.3 KN |
Maximum Permissible Gradient | 20 ° |
Battery | 12V/80Ah |
Working Pressure | 18.5 MPA |
3. Details and Advantages
Optional fingertip hydraulic controls with an integrated, fully adjustable, high-comfort armrest (an award-winning concept) enable effortless precision.
Automotive-style pedals with an optimum pedal angle are user-friendly and offer excellent control without causing leg strain.
The market-leading ergonomic design allows for easy on-off access, includes user-friendly controls, a practical layout, and provides excellent all-round visibility - enhancing precision and productivity.
The incorporation of a tilting steer column, adjustable seat, and ample foot and legroom ensures a comfortable driving position for all operators.
4. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
No | Part No | Description |
26 | FD30(35)-L1023 | Pin |
27 | FD30(35)-L1024 | StrutL.H |
28 | FD30(35)-L1025 | Spring |
29 | FD30(35)-L1026 | Rod |
30 | FD30(35)-L1027 | Pin |
31 | FD30(35)-L1028 | Washer,spring |
