| Place of Origin: | Shangdong Province |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | ISO/CE |
| Model Number: | FD20 CPC20 CDPC20 |
| Minimum Order Quantity: | 1 SET |
| Price: | 4500-6500 USD |
| Packaging Details: | bubble cotton，fixed fasten package |
| Delivery Time: | 5-8 working day |
| Supply Ability: | 300 SETS/MONTH |
| Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | Engine Power: | 36.8/35.3/35.4 KW |
|---|---|---|---|
| Rate Loading Weight: | 2000kg | Mast Stage: | 2 Normal /2 Fully Free/3 Fully Free |
| Tire Type: | Air / Solid | Overhead Guard Height: | 2140 Mm |
| Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Overall Length(with/without Fork): | 3523/2453 Mm |
| Overall Width: | 1160 Mm | Overall Height: | 3000mm: 4220/2060 Mm |
| Total Weight: | 2660 KG | Load Center: | 500 Mm |
| Working Pressure: | 18.5 MPA | Battery: | 12V/80Ah |
| Front Tire: | 7.00-12-12PR | Rear Tire: | 6.00-9-10PR |
| Wheel Base: | 1600 Mm | Wheel Track: | 970/970 Mm |
| Highlight: | Heavy Duty Forklift Truck,Overall Length 2453Mm Combustion Forklift Truck |
||

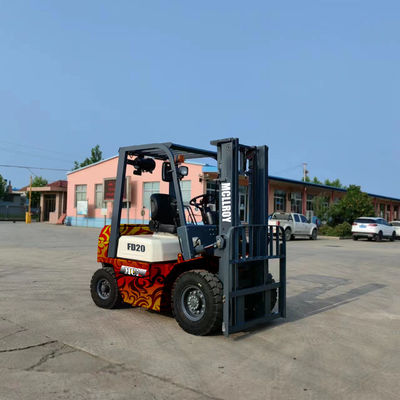

1. Products Description
The forklift, known as Green Diamond, epitomizes environmental friendliness, quality, reliability, and investment value comparable to diamonds, validating its name.
Operators will value the reduced noise and vibration levels, comfortable working environment, and the latest advancements in Ergo Centric steering, hydraulic, and other controls.
Furthermore, the integration of the IPS2 Integrated Presence System and advanced brake systems will enhance operator safety.
Each system and component has been carefully designed and chosen to minimize downtime and maintenance expenses.
2. Specification
| Specification | FD20 |
| Rate Loading Weight | 2000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Manual/Hydraulic auto 1R,0,1F |
| Fork Length | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 7.00-12-12PR |
| Rear Tire | 6.00-9-10PR |
| Overhead Guard Height | 2140 mm |
| Overall Length(with/without fork) | 3523/2453 mm |
| Overall Width | 1160 mm |
| Overall Height (Mast extended/lowered) |
3000mm: 4220/2060 mm |
| Total Weight | 2660 KG |
| Front Overhang | 448 mm |
| Free Fork Height | 100 mm |
| Angle of Mast inclination (forward /backward) |
6°/12° |
3. Details and Advantages
The truncation mounted, oscillating steer axle ensures a comfortable ride and excellent ground contact - even on the poorest work surfaces.
Fenders and steps are bolted to the chassis for easy servicing.
Optional fingertip hydraulic controls with integrated, fully adjustable, high-comfort armrest (an award-winning concept) allow effortless precision.
Automotive-style pedals with optimum pedal angle are easy to use and provide good control without leg strain.
4. Optional Configurations
| 1 | Solid tires (the Advanced brand or equivalent) |
|||
| 2 | Automatic transmission(1-4.5Ton) | |||
| 3 | Sideshift | |||
| 4 | Thicken Toyota seat (no shock absorber) | |||
| 5 | Toyota seat (with shock absorber) | |||
| 6 | Fork positioner | |||
| 7 | Closed cab | |||
| 8 | Double front tires(1-5Ton) | |||
| 9 | Normal double mast:3300-4000mm. | |||
| 10 | Full free double mast:3000-4000mm. | |||
| 11 | Full free triplex mast:4500-7500mm. | |||
| 12 | Fork length:920/1370/1550 mm | |||
| 13 | Extension fork | |||
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
No Part No Description Q'ty Remark
A FD20(25)-L0001 Wheel brake subassembly(L.H) 1
A FD20(25)-L0002 Wheel brake subassembly(R.H) 1
1 FD20(25)-L1001 Back plate subassembly 1
2 FD20(25)-L1002 Adjuster cover 1
3 FD20(25)-L1003 Brake shoe 2
4 FD20(25)-L1004 Snap ring,pin axle 1
5 FD20(25)-L1005 Lever LH brake 1
6 FD20(25)-L1006 Spring,shoe return 2
7 FD20(25)-L1007 Plate,shoe guide 1
8 FD20(25)-L1008 Stopper,pole lever 1
9 FD20(25)-L1009 Spring,actuator 1
10 FD20(25)-L1010 Strut 1
11 FD20(25)-L1011 Spring 1
12 FD20(25)-L1012 Lever LH pole 1
13 FD20(25)-L1013 Washer,cup 3
14 FD20(25)-L1014 Spring 1
15 FD20(25)-L1015 Washer,cup 4
16 FD20(25)-L1016 Spring 4
17 FD20(25)-L1017 Washer,cup 1
18 FD20(25)-L1018 Pin,shoe hold 4
19 FD20(25)-L1019 Pin,lever 1
20 FD20(25)-L1020 Spring shim 1
21 FD20(25)-L1021 Plug,rubber 1
22 FD20(25)-L1022 Cable L.H. 1
22 FD20(25)-L1023 Cable R.H. 1
23 FD20(25)-L1024 Bolt 2
24 FD20(25)-L1025 Washer,lock 2
