Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD20 CPC20 CDPC20 |
Minimum Order Quantity: | 1 SET |
Price: | 4500-6500 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 5-8 working day |
Supply Ability: | 300 SETS/MONTH |
Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | Engine Power: | 36.8/35.3/35.4 KW |
---|---|---|---|
Rate Loading Weight: | 2000kg | Mast Stage: | 2 Normal /2 Fully Free/3 Fully Free |
Transimission: | Manual/Hydraulic Auto 1R,0,1F | Fork Length: | 920/1070/1220/1500 Mm |
Tire Type: | Air / Solid | Overhead Guard Height: | 2140 Mm |
Front Tire: | 7.00-12-12PR | Rear Tire: | 6.00-9-10PR |
Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Overall Length(with/without Fork): | 3523/2453 Mm |
Overall Width: | 1160 Mm | Overall Height: | 3000mm: 4220/2060 Mm |
Total Weight: | 2660 KG | Front Overhang: | 448 Mm |
Highlight: | 2220 mm Forklift Truck,Ergonomic Forklift Truck,Tire Type Forklift Truck |

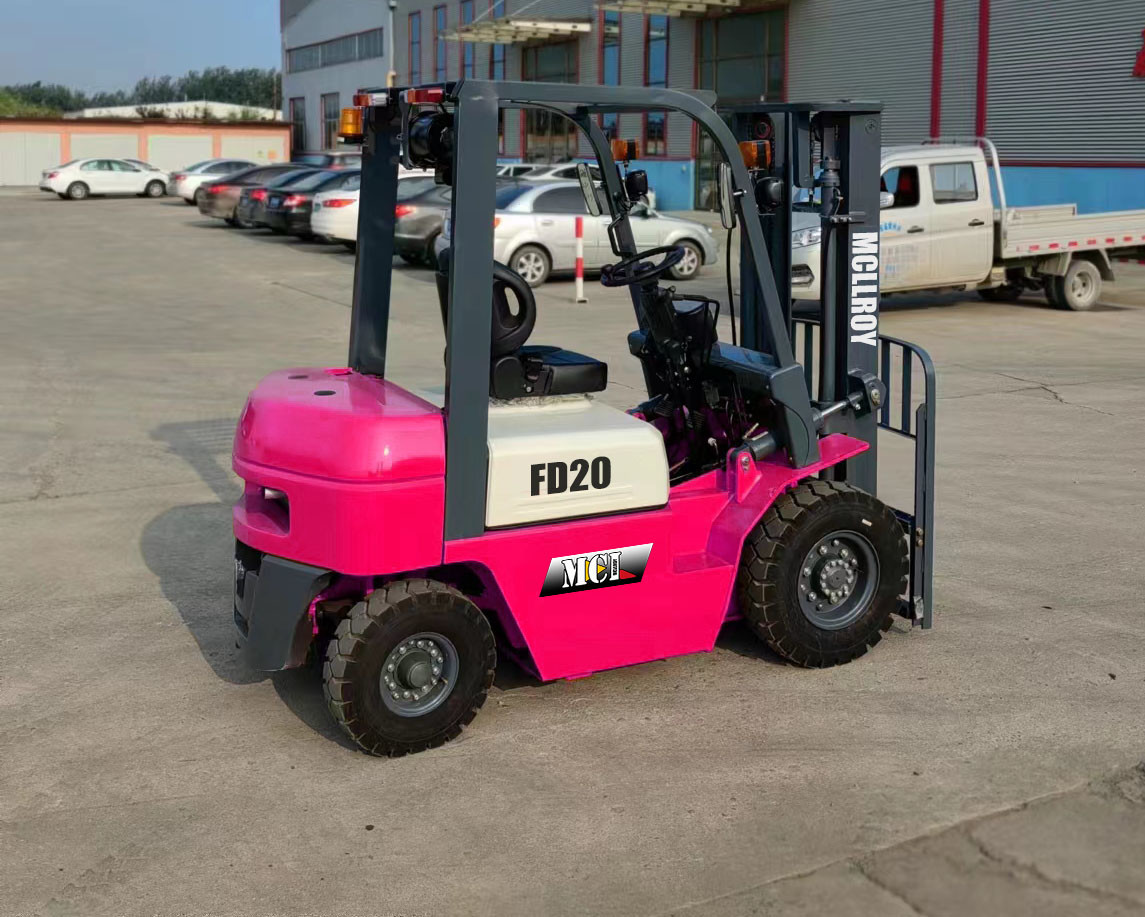

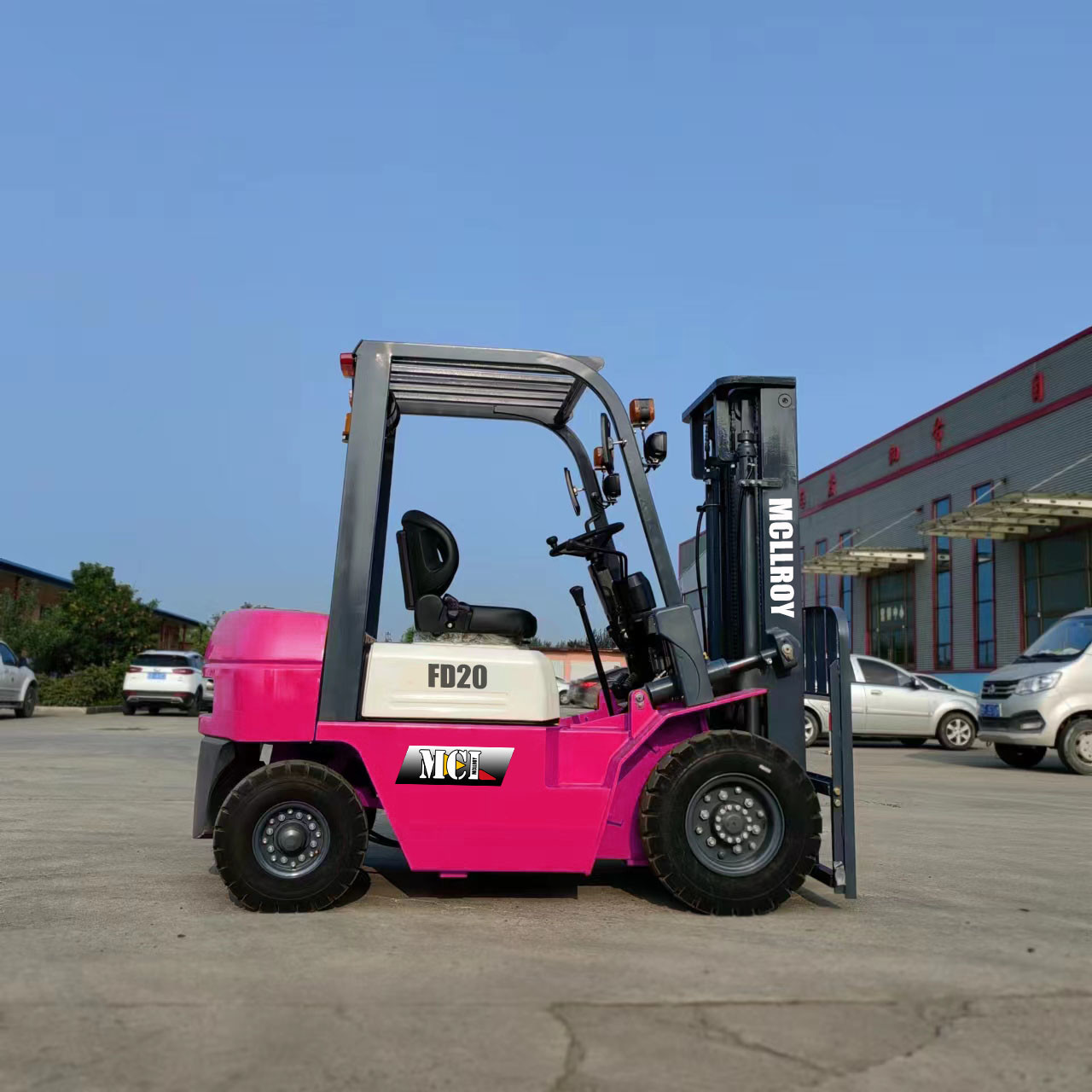

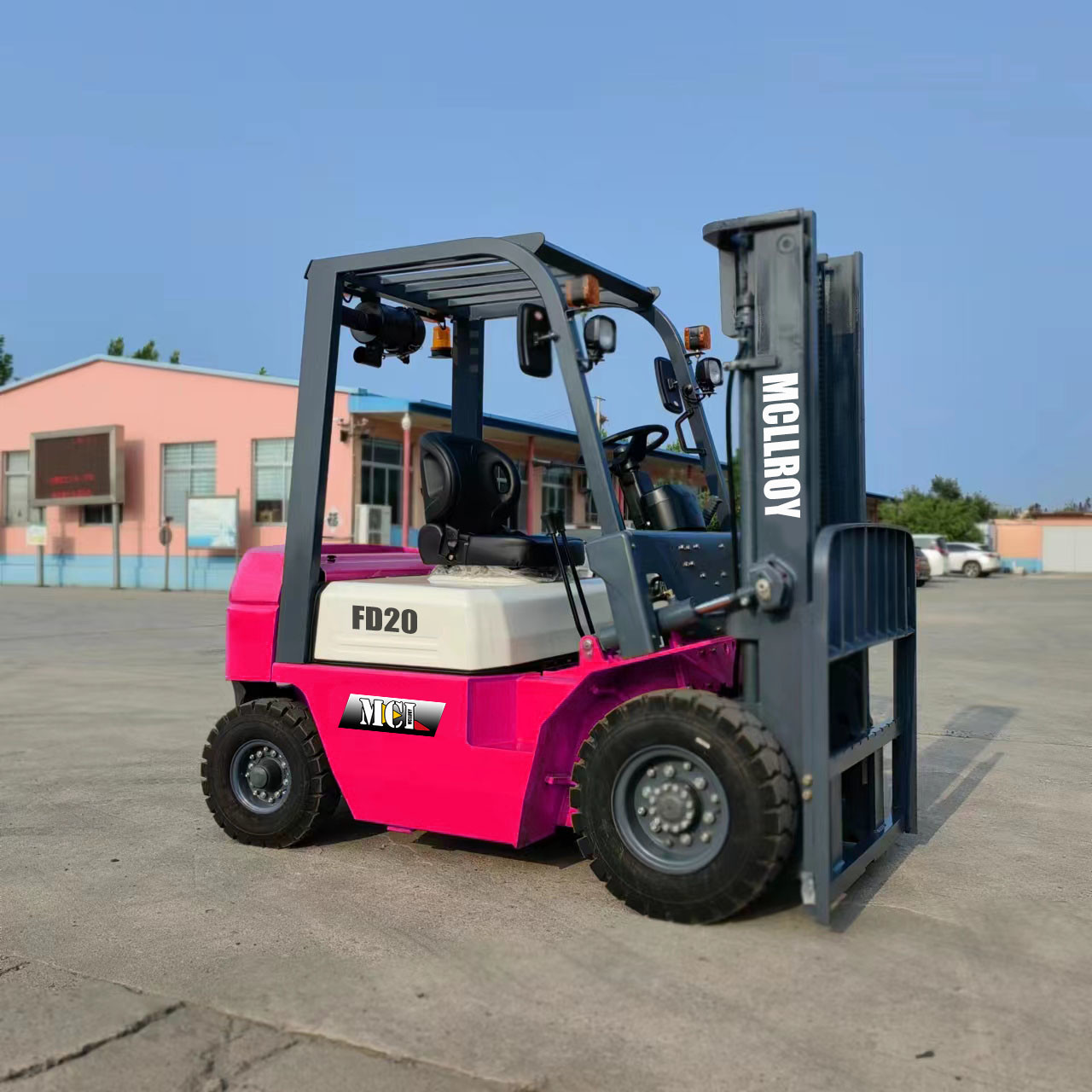

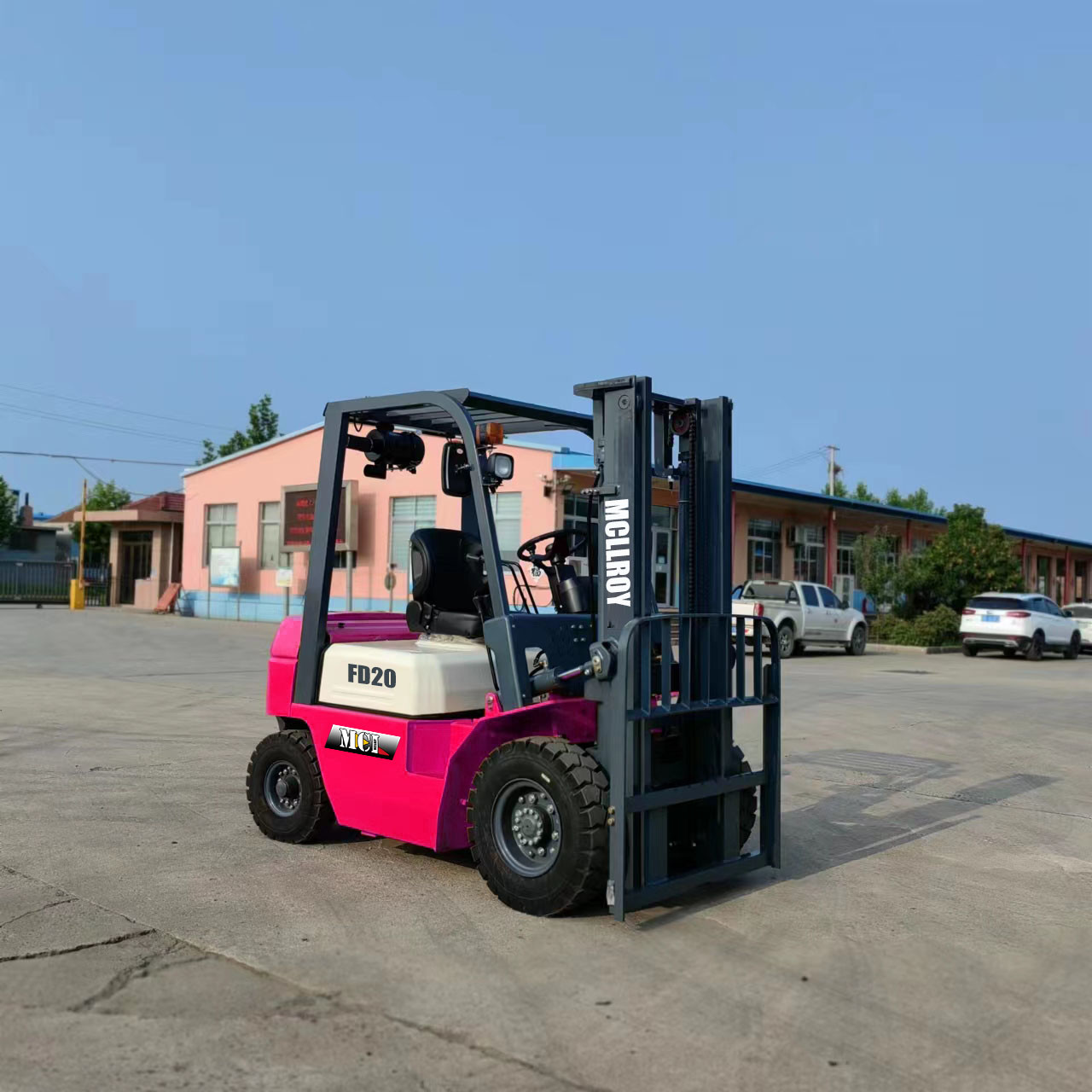

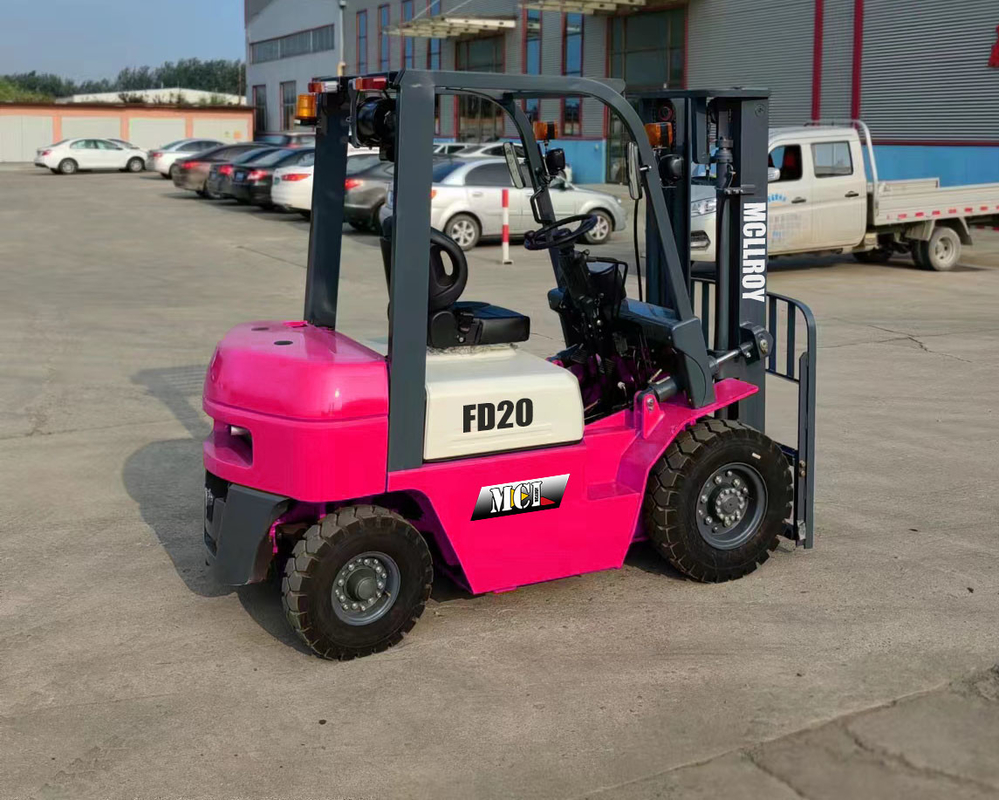

1. Products Description
Environmentally friendly, and with the quality, reliability and investment value you would associate with diamonds, its name - meaning Green Diamond is truly deserved. Low noise and vibration, a comfortable operating environment and the latest Ergo Centric developments in steering,hydraulic and other controls will all be welcomed by operators. Meanwhile, the IPS2 Integrated Presence System and advanced brake systems will help ensure that they stay safe.And as always, every system and component has been designed and chosen to minimize downtime and maintenance costs.
2. Specification
Specification | FD20 |
Rate Loading Weight | 2000 KG |
Mast Stage | 2 Normal /2 Fully free/3 Fully free |
Lifting Height | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power | 36.8/35.3/35.4 KW |
Transimission | Manual/Hydraulic auto 1R,0,1F |
Fork Length | 920/1070/1220/1500 mm |
Tire Type | Air / Solid |
Front Tire | 7.00-12-12PR |
Rear Tire | 6.00-9-10PR |
Overhead Guard Height | 2140 mm |
Overall Length(with/without fork) | 3523/2453 mm |
Overall Width | 1160 mm |
Overall Height (Mast extended/lowered) |
3000mm: 4220/2060 mm |
Total Weight | 2660 KG |
Front Overhang | 448 mm |
Free Fork Height | 100 mm |
Angle of Mast inclination (forward /backward) |
6°/12° |
Load Center | 500 mm |
Ground Clearance | 120 mm |
Wheel Base | 1600 mm |
Wheel Track | 970/970 mm |
Minimum Turning Radius | 2220 mm |
Max.Travel Speed(full loading) | 19 km/h |
Max. Lifting Speed(full Loading) | 550 mm/s |
Max. Traction Force(full loading) | 12.3 KN |
Maximum Permissible Gradient | 20 ° |
Battery | 12V/80Ah |
Working Pressure | 18.5 |
3. Details and Advantages
Automotive-style pedals with optimum pedal angle are easy to use and give good control without leg strain.
Market-leading ergonomic design results in easy on-off access, user-friendly controls, a practical layout and great all-round visibility - for maximum precision and productivity.
The tilting steer column, adjustable seat and generous foot and leg room ensure a relaxed driving position for all operators.
Small diameter steering wheel, tilting steer column and full hydro static steering for precise and responsive manoeuvring.
Adjustable steering column with unique,time-saving memory function helps guarantee optimum driving position, every time.
4. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
No | Part No | Description | Q'ty | Remark |
1 | FD20-35-C1101 | Cover,case | 1 | |
2 | FD20-35-C1102 | Arm,shift | 1 | |
3 | FD20-35-C1103 | Pin,lock | 1 | |
4 | FD20-35-C1104 | Shaft,shift arm | 1 | |
5 | FD20-35-C1105 | O-ring | 1 | |
6 | FD20-35-C1106 | Key,woodruf | 1 | |
7 | FD20-35-C1107 | Bolt | 1 | |
8 | FD20-35-C1108 | Shim | 1 | |
9 | FD20-35-C1109 | Plug | 1 | |
10 | FD20-35-C1110 | Switch | 2 | |
11 | FD20-35-C1111 | Shim | 2 | |
12 | FD20-35-C1112 | Nipple | 1 | |
13 | FD20-35-C1113 | Filter,oil | 1 | |
14 | FD20-35-C1114 | Pin,lock | 1 | |
15 | FD20-35-C1115 | Piston | 1 | |
16 | FD20-35-C1116 | Spring | 1 | |
17 | FD20-35-C1117 | Cup | 1 | |
18 | FD20-35-C1118 | Packing,copper | 1 | |
19 | FD20-35-C1119 | Plug | 6 | |
20 | FD20-35-C1120 | Plug | 4 | |
21 | FD20-35-C1121 | Control sets | 1 | |
22 | FD20-35-C1122 | Gasket | 1 | |
23 | FD20-35-C1123 | Bolt | 2 | |
24 | FD20-35-C1124 | Bolt | 2 | |
25 | FD20-35-C1125 | Bolt | 4 | |
26 | GB/T93-1987 | Shim | 11 | |
27 | FD20-35-C1127 | Gasket | 1 |
