Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD25 CPC25 CDPC25 |
Minimum Order Quantity: | 1 SET |
Price: | 4500-6000 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 10 days |
Supply Ability: | 100 SETS/MONTH |
Engine Power: | 32 KW | Loading Capacity: | 1500kg |
---|---|---|---|
Total Weight: | 2660 KG | Fork Size: | 920/1070/1220/1500 Mm |
Front Tyre: | 6.50-10-10PR | Rear Tyre: | 5.00-8-8PR |
Max Working Speed: | 13.5 Km/h | Mast Tilt Angle: | 6°-12° |
Overhead Guard Height: | 2040 Mm | Fork Size: | 920*100*35 Mm |
Tire Type: | Air / Solid | ||
High Light: | XinChai 485 BPG Diesel Powered Forklift,Diesel Powered Forklift Manual Transimission |

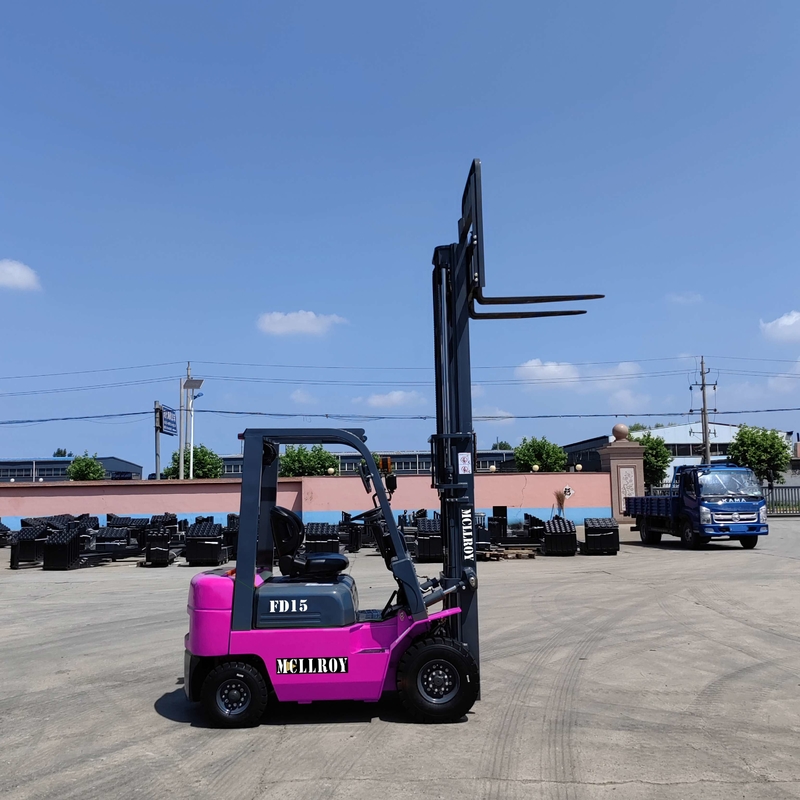

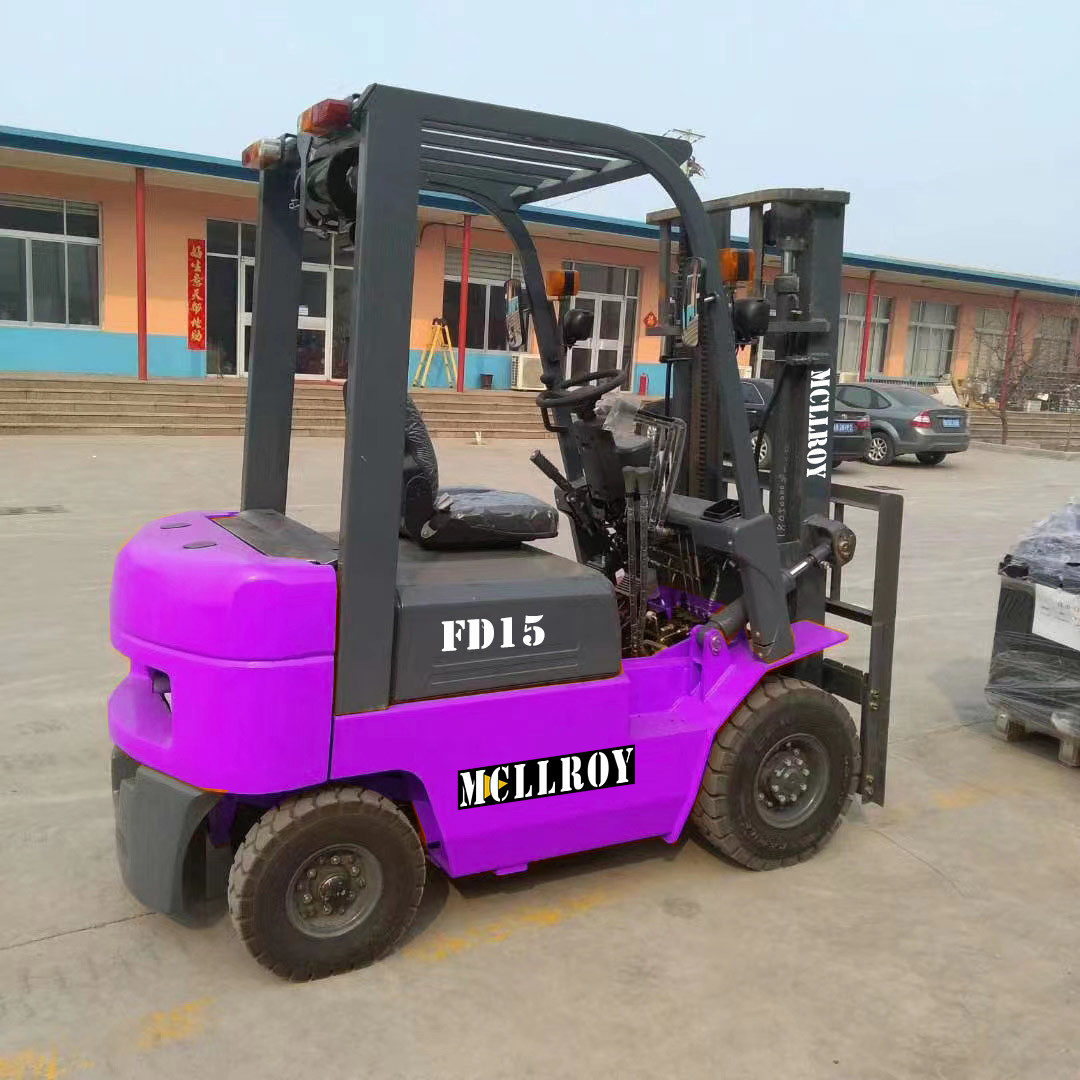

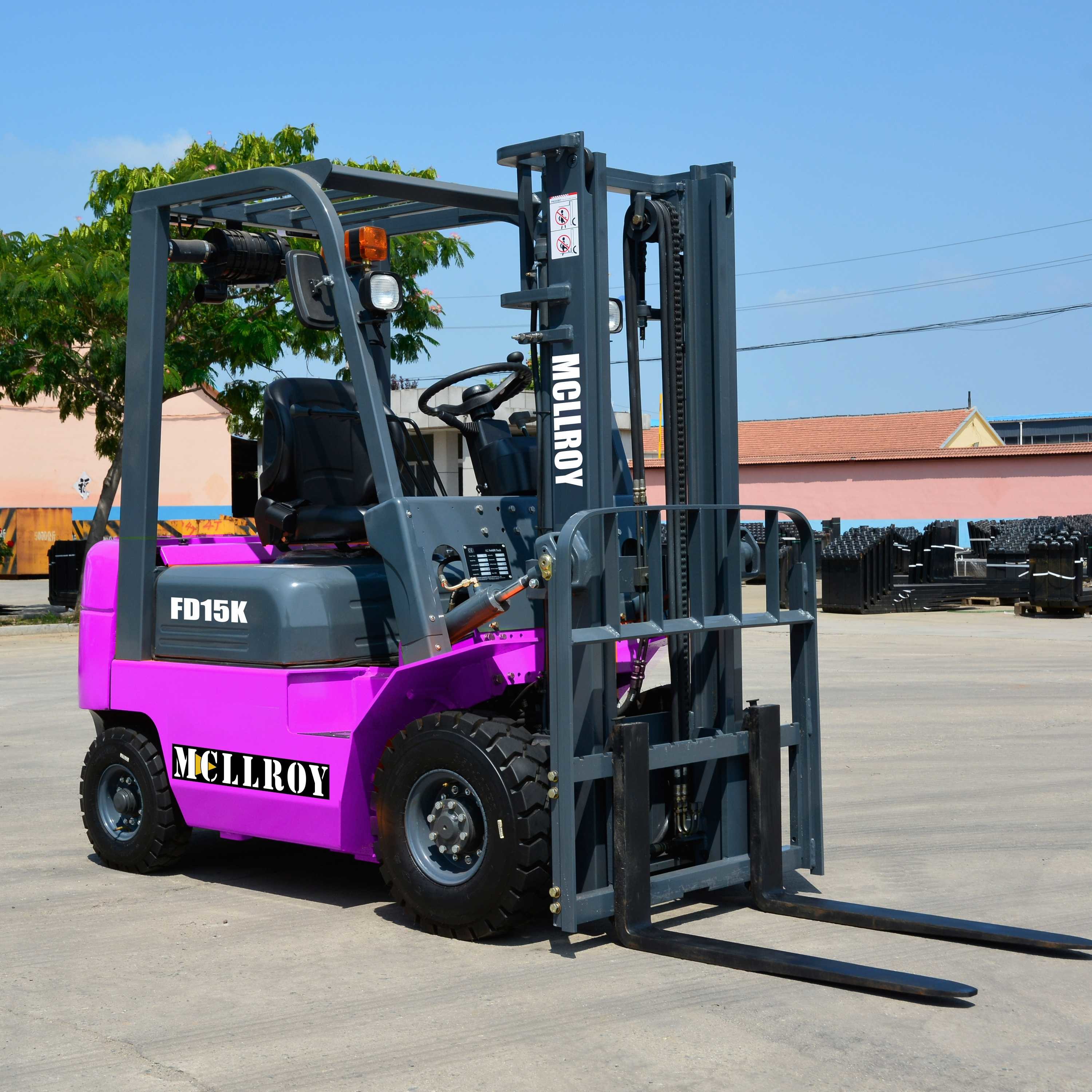

1. Products Description
The well-established MCLLROY FD series 1 – 3.5t Diesel IC Counterbalance forklift integrates over 30 years of experience with the latest forklift technologies.
Renowned as one of the most dependable forklifts manufactured by MCLLROY, it features a dynamic load sensing hydraulic steering system, efficient lighting, and lower fuel consumption, collectively contributing to increased productivity.
Designed to withstand a wide range of outdoor work throughout the year, including loading and unloading goods vehicles, this forklift effortlessly handles small pallets or bulk materials even in challenging environments such as wet, snowy, windy, or dirty conditions, with lift heights up to 3 meters.
Offering exceptional endurance and power at a cost-effective price point, our FD Series presents unparalleled value in the market.
2. Specification
Specification | FD15 |
Rate Loading Weight | 1500 KG |
Mast Stage | 2 |
Lifting Height | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 485 BPG |
Rate Power | 32 KW |
Transimission | Manual |
Fork Size | 920*100*35 mm |
Tire Type | Air / Solid |
Front Tire | 6.50-10-10PR |
Rear Tire | 5.00-8-8PR |
Overhead Guard Height | 2040 mm |
Overall Length(with/without fork) | 3175/2255 mm |
Overall Width | 1070 mm |
Overall Height (Mast extended/lowered) |
3000mm:4030/1995 mm 4500mm:5700/2100 mm |
Total Weight | 2660 KG |
Front Overhang | 425 mm |
Free Fork Height | 100 mm |
Angle of Mast inclination (forward /backward) |
6°/12° |
Load Center | 500 mm |
Ground Clearance | 110 mm |
Wheel Base | 1410 mm |
Wheel Track | 890/920 mm |
Minimum Turning Radius | 1955 mm |
Max.Travel Speed(full loading) | 13.5 km/h |
Max. Lifting Speed(full Loading) | 590 mm/s |
Max. Traction Force(full loading) | 12.3 KN |
Maximum Permissible Gradient | 20 ° |
Battery | 12V/80Ah |
Working Pressure | 18.5 Mpa |
3. Details and Advantages
The front lifting cylinders have been developed with a smaller outer diameter to provide the operator with superior forward visibility. Additionally, the double lifting cylinders offer improved forward visibility. The optimized design ensures outstanding visibility in all directions.
Moreover, the compound engine damper and full floating powertrain, in addition to the rubber damper between frames and the steering axle, achieve a flexible connection between the frames and driving system. This results in a significant reduction in traveling vibrations and vibrations from the driving system.
4. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
5. Attachment
We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means MCLLROY forklift can be customized. For example, paper roll clamp, bale clamp, block clamp, carton clamp, double forks and so on
6. Explosive View
No. | Part No. | Description | Q'ty | Remark |
1 | 490B-03018 | Plug 12 | 2 | |
2 | GB/T894·1-1986 | Snap ring 20 | 2 | |
3 | GB/T848-1985 | Washer 20 | 8 | |
4 | 490B-03212A | Valve rocker arm bushing | 8 | |
5 | GB/T6171-2000 | Nut M*1 | 8 | |
6 | 490B-03201 | Adjusting screw for valve clearance | 8 | |
7 | 490B-03211A | Valve rocker arm | 8 | |
8 | 490B-03202 | Seat | 4 | |
9 | 490B-03203 | Spring | 3 | |
10 | 490B-03204 | Shaft | 1 | |
11 | GB/T5783-2000 | Bolt M8*18 | 9 | |
12 | GB/T93-1987 | Spring washer | 17 | |
13 | GB/T97·1-1985 | Washer 8 | 2 | |
14 | GB/T1096-1979 | Key C8*32 | 1 | |
15 | 490B-06003 | Push rod | 8 | |
16 | 490B-06002 | Push tappet | 8 | |
17 | GB/T5782-2000 | Bolt M12*45 | 1 | |
18 | GB/T93-1987 | Spring washer 12 | 1 | |
19 | 490B-02011 | Stopping plate for camshaft timing gear | 1 | |
20 | 490B-02008 | Thrust plate for camshaft | 1 | |
21 | 495B-06001 | Camshaft | 1 | |
22 | 490B-03006 | Split valve retainer | 16 | |
23 | 490B-03007 | Valve spring seat,upper | 8 | |
24 | 490B-03005 | Valve spring,inner | 8 | |
25 | 490B-03004 | Valve spring,outer | 8 | |
26 | 490B-03011 | Lower seat,valve spring | 8 | |
27 | 490B-03015 | Exhaust valve | 4 |
