| Place of Origin: | Shangdong Province |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | ISO/CE |
| Model Number: | FD70 CPC70 CDPC70 |
| Minimum Order Quantity: | 1 SET |
| Price: | 16000-19000 USD |
| Packaging Details: | bubble cotton，fixed fasten package |
| Delivery Time: | 5-8 working day |
| Supply Ability: | 100 SETS/MONTH |
| Engine Power: | 85 /82.4 KW | Loading Capacity: | 7000 KG |
|---|---|---|---|
| Total Weight: | 9350 KG | Fork Size: | 920/1070/1220/1500 Mm |
| Front Tyre: | 8.25-15-14PR | Rear Tyre: | 8.25-15-14PR |
| Max Working Speed: | 29 Km/h | Mast Tilt Angle: | 6°-12° |
| Overhead Guard Height: | 2460 Mm | ||
| Highlight: | 29 Km/H Travel Speed IC Forklift,Double Front Air Tire IC Forklift |
||
1. Products Description

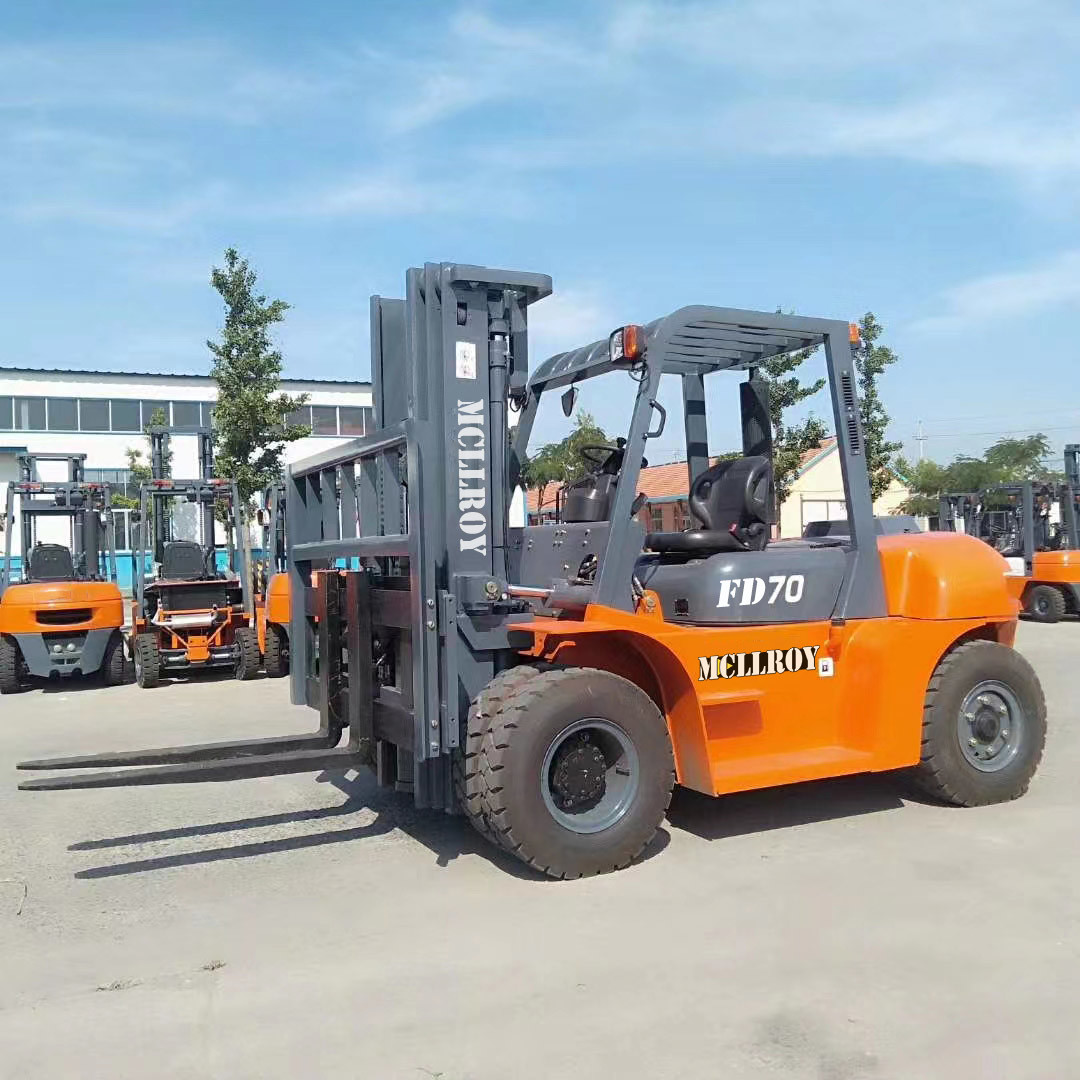

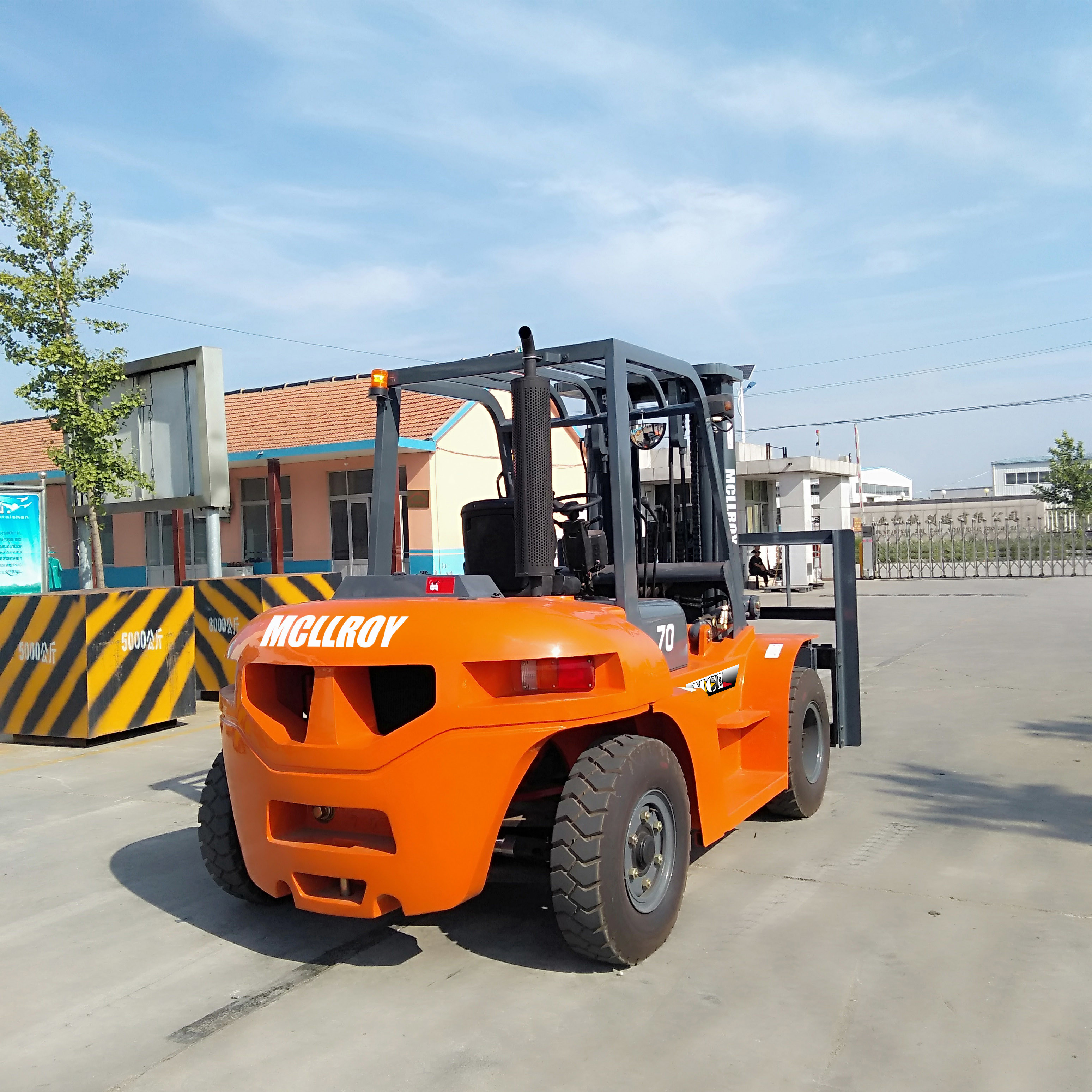

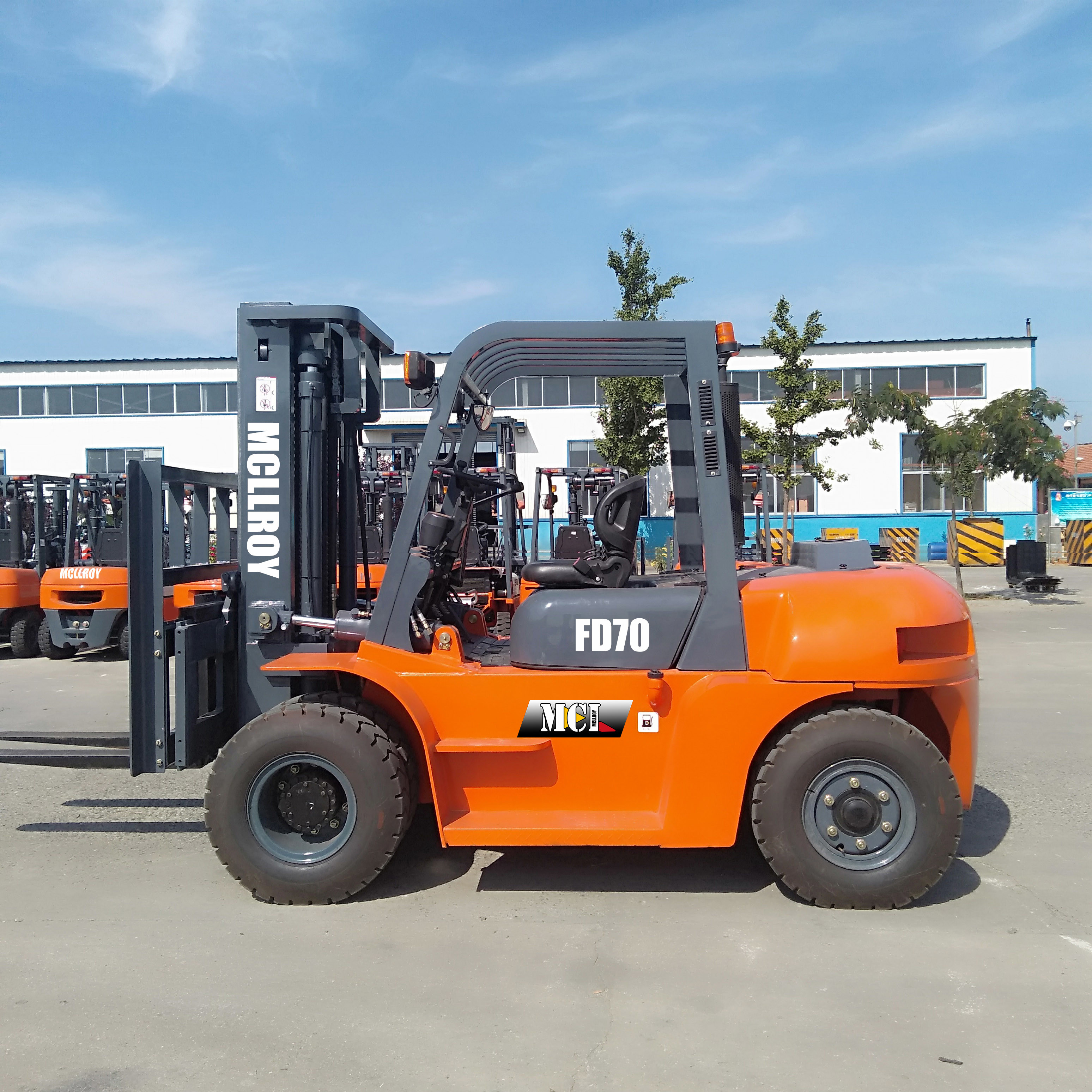

The MCLLROY 7.0ton IC Forklift, powered by robust engines, demonstrates outstanding strength and durability.
Drive speeds have increased by 20%, and lift speeds by 15%, thanks to a dynamic load sensing hydraulic system.
The efficient engine and durable truck components allow for rapid acceleration, low fuel consumption, and resilience against wear and tear, thereby minimizing repair and service costs.
Maximizing productivity, the MCLLROY IC forklift is recognized as one of the most cost-effective machines.
Due to its sturdy design, the interior mast has been extended, providing operators with excellent visibility of the load in both forward and upward directions, while also offering additional foot space for extended work periods.
2. Specification
| Specification | FD70 |
| Rate Loading Weight | 7000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | Xi chai 4DF3/ Isuzu 68G1 |
| Rate Power | 85 /82.4 KW |
| Transimission | Hydraulic auto 2R,0,2F |
| Fork Size | 920/1070/1220/1500 mm |
| Tire Type | Double front Air tires |
| Front Tire | 8.25-15-14PR |
| Rear Tire | 8.25-15-14PR |
| Overhead Guard Height | 2460 mm |
| Overall Length(with/without fork) | 4800/3580 mm |
| Overall Width | 1995 mm |
| Overall Height (Mast extended/lowered) | 3000mm: 4420/2625 mm |
| Total Weight | 9350 KG |
| Front Overhang | 590 mm |
| Free Fork Height | 200 mm |
| Angle of Mast inclination (forward /backward) | 6°/12° |
| Load Center | 600 mm |
| Ground Clearance | 200 mm |
| Wheel Base | 2250 mm |
| Wheel Track | 1470/1700 mm |
| Minimum Turning Radius | 3380 mm |
| Max.Travel Speed(full loading) | 29 km/h |
| Max. Lifting Speed(full Loading) | 500 mm/s |
| Max. Traction Force(full loading) | 53 KN |
| Maximum Permissible Gradient | 20 ° |
| Battery | 12V/80Ah*2 |
| Working Pressure | 20 Mpa |
3. Details and Advantages
By prioritizing the enhancement of reliability and reduction of downtime, the XF series is able to significantly improve productivity for customers.
The drive axle, wet brake system, and enhanced Okamura gearbox are designed with an expected minimum service life of 10 years.
The implementation of a wet axle significantly enhances the reliability of the braking system and force transmission structural parts, incorporating wet brakes, custom high-strength bolts, and wheel side planetary reducer.
The newly designed aluminum alloy transmission with a full floating structure demonstrates excellent heat dissipation capability, while incorporating more and thicker discs to meet the demands of the most challenging applications.
The instrument panel features a large screen display and adopts an injection molding design, providing sturdiness and durability.
The high-strength chassis, mast, and front/rear axle are designed to ensure the reliability of the truck, even for high-strength applications.
4. Configurations
| 1 | Solid tires (the Advanced brand or equivalent) | |||
| 2 | Automatic transmission(1-4.5Ton) | |||
| 3 | Sideshift | |||
| 4 | Thicken Toyota seat (no shock absorber) | |||
| 5 | Toyota seat (with shock absorber) | |||
| 6 | Fork positioner | |||
| 7 | Closed cab | |||
| 8 | Double front tires(1-5Ton) | |||
| 9 | Normal double mast:3300-4000mm. | |||
| 10 | Full free double mast:3000-4000mm. | |||
| 11 | Full free triplex mast:4500-7500mm. | |||
| 12 | Fork length:920/1370/1550 mm | |||
| 13 | Extension fork | |||
5. Attachment
We are dedicated to providing a VIP forklift solution that can be customized to meet various work conditions, offering customization options for the MCLLROY forklift, including the paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened forks.
