Place of Origin: | Shangdong Province |
---|---|
Brand Name: | MCLLROY |
Certification: | ISO/CE |
Model Number: | FD75 CPC75 CDPC75 |
Minimum Order Quantity: | 1 SET |
Price: | 16000-19000 USD |
Packaging Details: | bubble cotton,fixed fasten package |
Delivery Time: | 5-8 working day |
Supply Ability: | 100 SETS/MONTH |
Engine Power: | 85 KW | Loading Capacity: | 7500kg |
---|---|---|---|
Total Weight: | 105200 KG | Fork Size: | 920/1070/1220/1500 Mm |
Front Tyre: | 8.25-15-14PR | Rear Tyre: | 8.25-15-14PR |
Max Working Speed: | 29 Km/h | Mast Tilt Angle: | 6°-12° |
Overhead Guard Height: | 2450 Mm | ||
Highlight: | 7500KG Rate Loading IC Forklift,IC Forklift For Stone |
1. Products Description

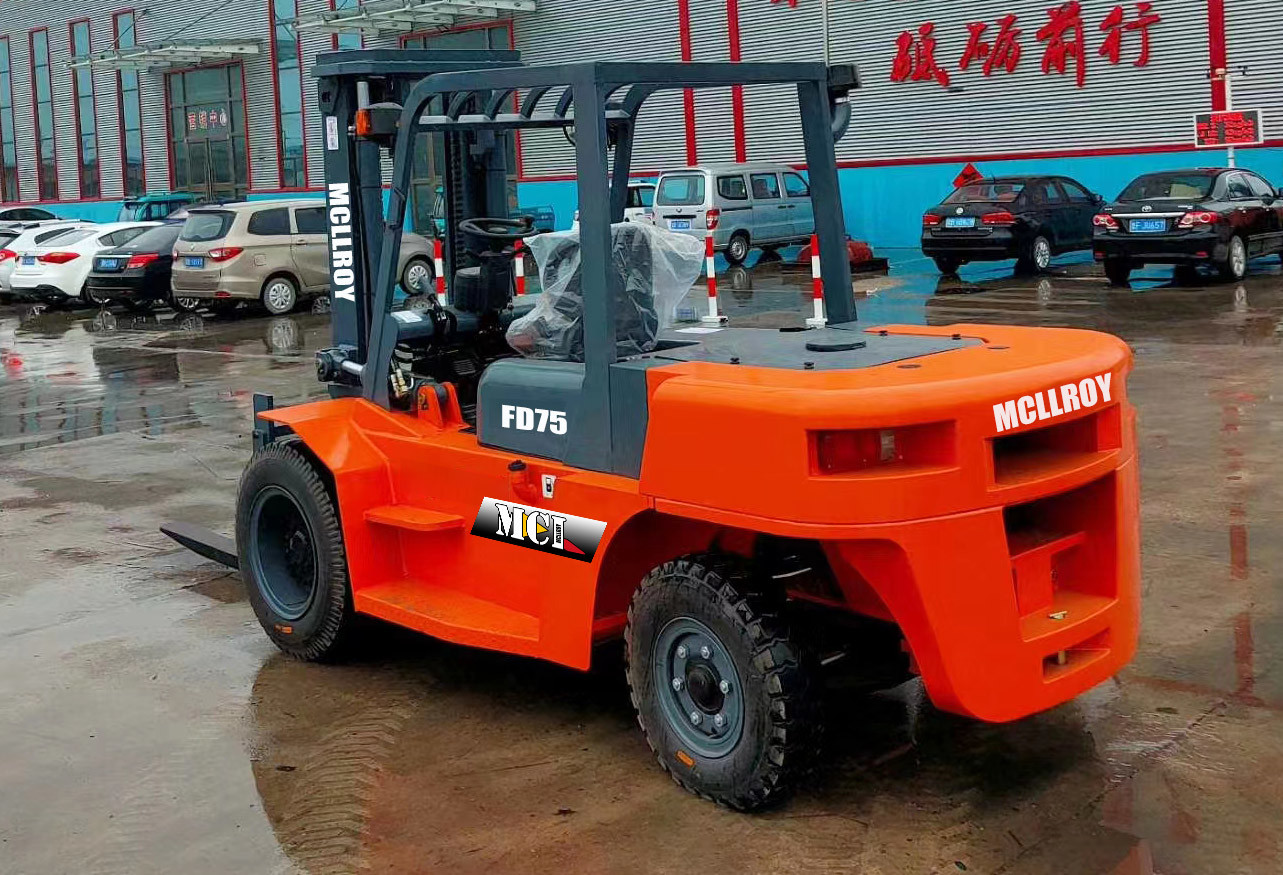

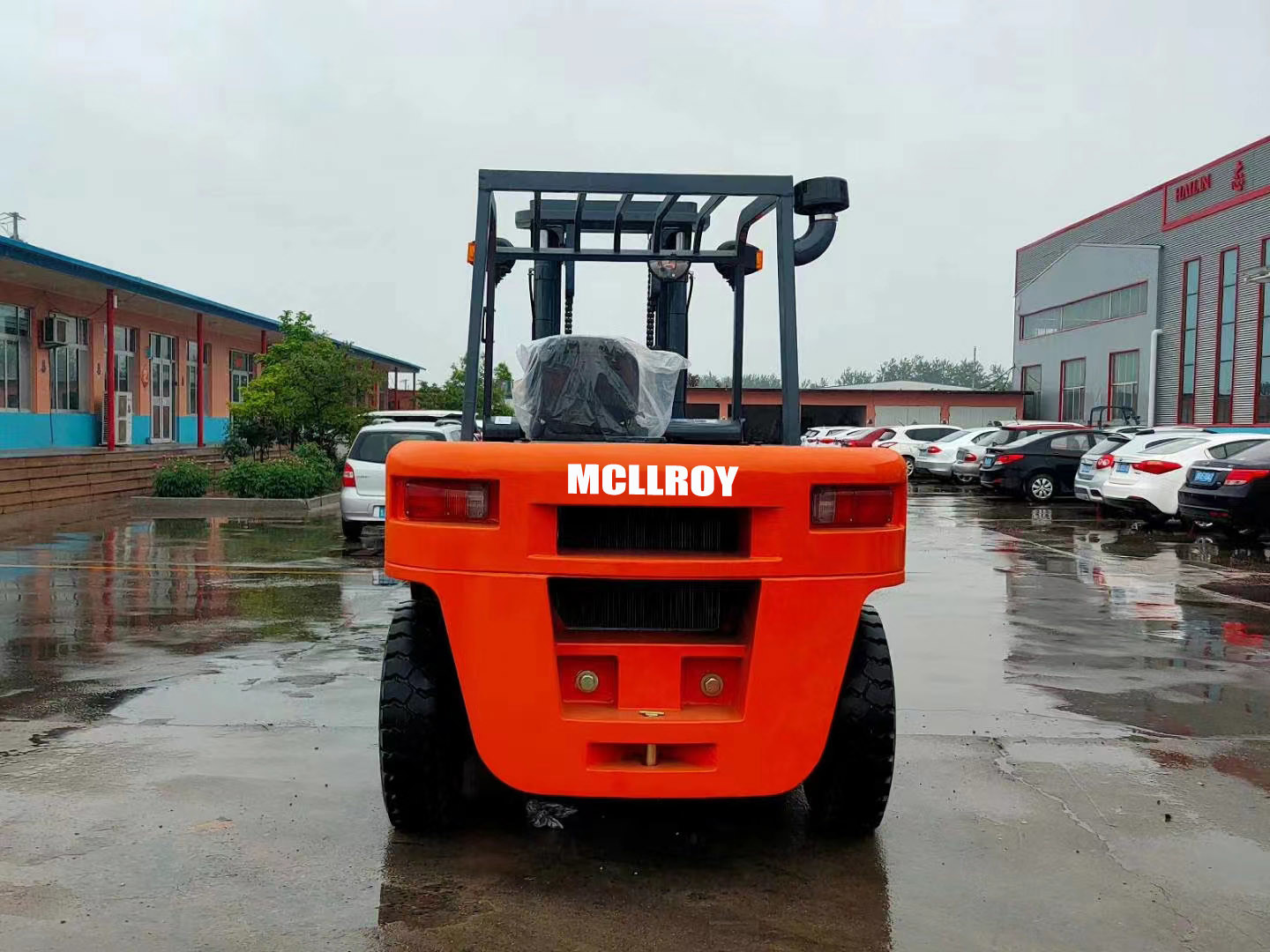

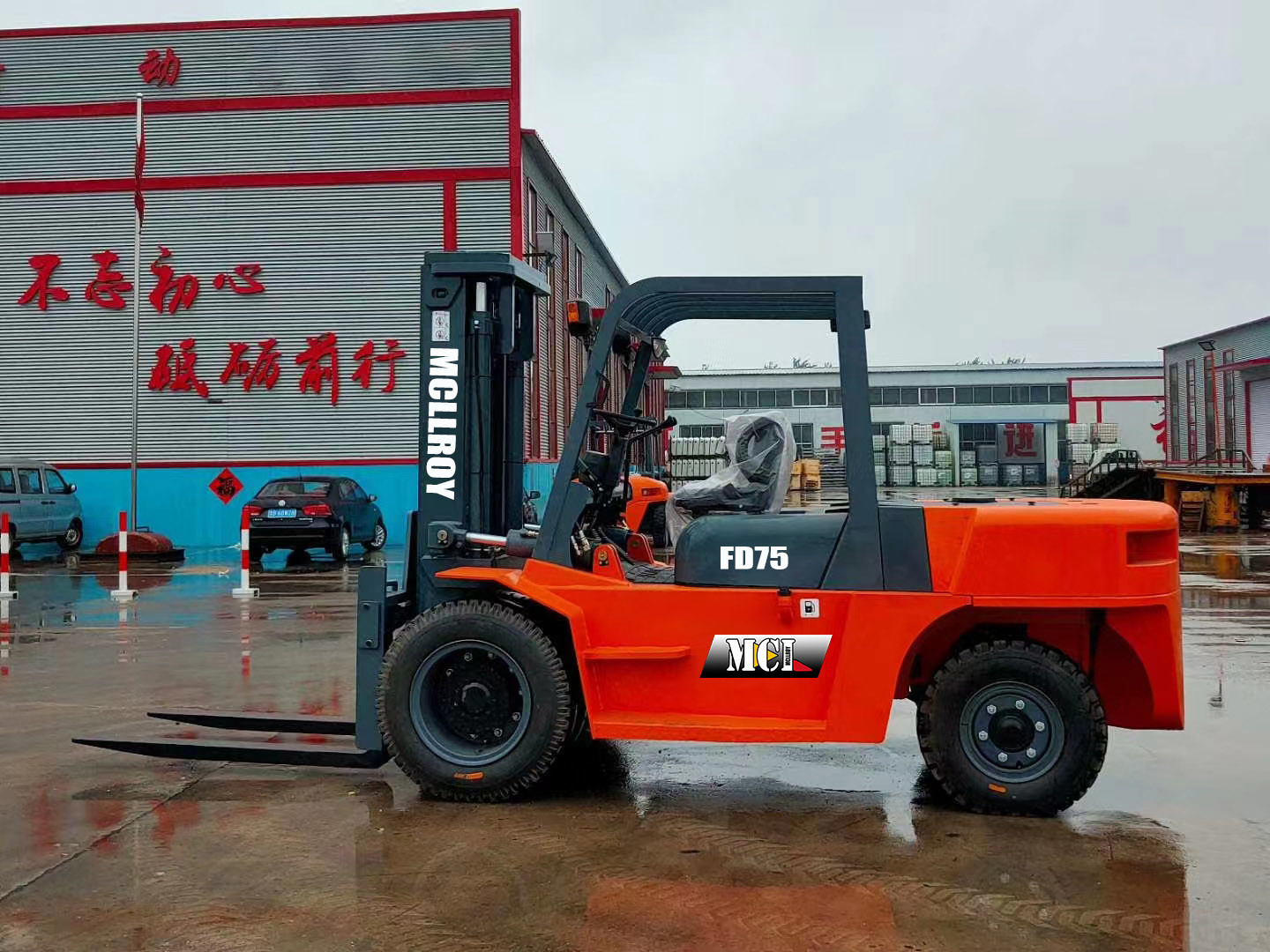

The MCLLROY 7.5ton IC Forklift, powered by robust engines, demonstrates outstanding strength and durability.
Drive speeds have increased by 20%, and lift speeds by 15%, thanks to a dynamic load sensing hydraulic system.
The efficient engine and durable truck components allow for rapid acceleration, low fuel consumption, and resilience against wear and tear, thereby minimizing repair and service costs.
Maximizing productivity, the MCLLROY IC forklift is recognized as one of the most cost-effective machines.
Due to its sturdy design, the interior mast has been extended, providing operators with excellent visibility of the load in both forward and upward directions, while also offering additional foot space for extended work periods.
2. Specification
Specification | FD75 |
Rate Loading Weight | 7500 KG |
Mast Stage | 2 |
Lifting Height | 3000 mm |
Engine Model | Xi chai 4DF3 |
Rate Power | 85 KW |
Transimission | Manual |
Fork Size | 1220*150*60 mm |
Tire Type | Air |
Front Tire | 8.25-15-14PR |
Rear Tire | 8.25-15-14PR |
Overhead Guard Height | 2450 mm |
Overall Length(with/without fork) | 5300/4080 mm |
Overall Width | 1995 mm |
Overall Height (Mast extended/lowered) | 4420/2625 mm |
Total Weight | 105200 KG |
Front Overhang | 590 mm |
Free Fork Height | 150 mm |
Angle of Mast inclination (forward /backward) | 6°/12° |
Load Center | 600 mm |
Ground Clearance | 200 mm |
Wheel Base | 2280 mm |
Wheel Track | 1470/1500 mm |
Minimum Turning Radius | 3650 mm |
Max.Travel Speed(full loading) | 29 km/h |
Max. Lifting Speed(full Loading) | 500 mm/s |
Max. Traction Force(full loading) | 53 KN |
Maximum Permissible Gradient | 30°/19° |
Battery | 12V/80Ah*2 |
Working Pressure | 20 |
3. Details and Advantages
The front lifting cylinders have been designed with a reduced outer diameter to significantly enhance the operator's forward visibility.
The development of the MCLLROY prioritized comfort and ease of operation, incorporating an enhanced shock absorber, compound engine damper, and full-floating powertrain to ensure a more relaxing driving experience.
In addition to the soft landing system, a soft lifting system is adopted for the front lifting cylinders of the triplex mast and full free duplex mast, resulting in a substantial decrease in mast noise and shock.
A specially developed parking brake reduces the operational force by 30%, while the automobile-style suspended pedals offer a more ergonomic operation.
4. Configurations
1 | Solid tires (the Advanced brand or equivalent) | |||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
5. Attachment
We are dedicated to providing a VIP forklift solution that can be customized to meet various work conditions, offering customization options for the MCLLROY forklift, including the paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened forks.
