Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE,ISO9001 |
Model Number: | FE20 |
Minimum Order Quantity: | 1 Set |
Price: | 12000-15000 USD |
Packaging Details: | Nude , 8 sets in 1 40HQ |
Delivery Time: | 5-8 working days |
Supply Ability: | 300 sets / month |
Rate Loading: | 2000 Kg | Load Center: | 500 Mm |
---|---|---|---|
Battery Type: | Lead Acid | Wheel Base: | 1500 Mm |
Tire Type: | Air,2F*2R Tire | Front Tire: | 7.0-12-12PR |
Rear Tire: | 18*7-8PR | Overhead Guard Height: | 2140 Mm |
Highlight: | Lead Acid Battery Electric Powered Forklift,Electric Powered Forklift 5T Load Capacity |

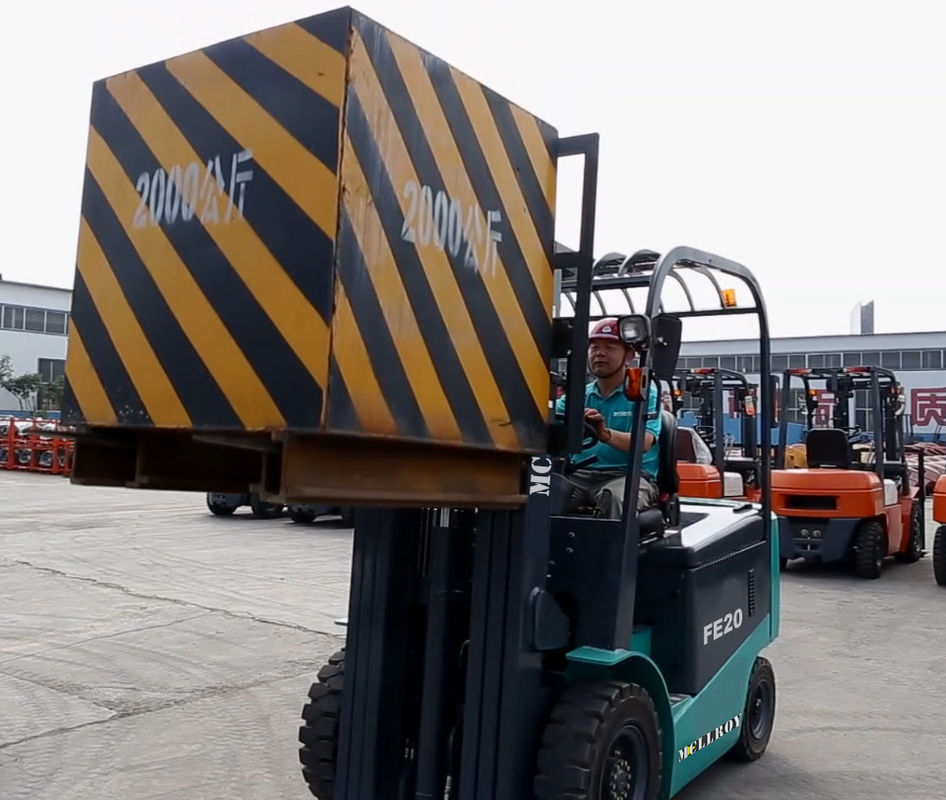

1. Products Description of MCLLROY Electric Forklift
Increase Efficiency, Reliability & Agility in the Warehouse
Our high performing and energy efficient electric forklift trucks are ideal companions for a wide variety of demanding applications. Suitable for indoor use with smooth floors, these powerful trucks have a range of features designed to cope with the toughest demands. All components are fully protected ensuring they are reliable workers outdoors, in wet or dusty conditions. Designed to maximize your throughput in narrow-aisle warehouses, both our three and four wheel electric forklifts provide smooth acceleration along with low energy consumption. With lift capacities up to 5 tonnes, our electric forklifts come with a range of masts, power and fork configurations.
Information on our four wheel electric forklifts for sale, including load capacity, lift height, mast type, can be found below.
2. Specification
FE15 | FE20 | FE25 | |
Rate Loading Weight | 1500 KG | 2000 KG | 2500 KG |
Mast Stage | 2 | 2 | 2 |
Lifting Height | 3000 mm | 3000 mm | 3000 mm |
Driven Motor Power(60 min) | 7.5 KW | 9 KW | 9 KW |
Oil Pump Motor Power(15 min) | 7.7 KW | 11 KW | 11 KW |
Battery | 48V/420Ah | 48V/600Ah | 48V/600Ah |
Battery Box Size | 440*830*780 mm | 500*900*760 mm | 500*900*760 mm |
Motor& Controller Type | AC | AC | AC |
Transimission | Auto | Auto | Auto |
Fork Size | 100*35*1070 mm | 1070*122*40 mm | 1070*122*40 mm |
Tire Type | Air | Air | Air |
Front Tire | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR |
Rear Tire | 5.00-8-10PR | 18*7-8PR | 18*7-8PR |
3. Details and Advantages of MCLLROY Electric Forklift
1) Fitted with a high frequency MOSFET controller, the robust forklift provides a more accurate control of travelling and lifting which increases driver performance.
2) The regenerative brake is used as the motor brake so energy can be conserved and re-used, ensuring higher efficiency.
3) The 4-wheel electric forklift has a lower battery position, providing a lower centre of gravity, which in return gives the truck better stability when in full operation.
4. Attachment of MCLLROY Forklift
We are dedicated to providing forklift VIP solution to meet all kinds of work condition which means MCLLROY forklift can be customized. For example, paper roll clamp, bale clamp, block clamp, carton clamp, double forks and so on
5.Production lines of MCLLROY Forklift
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Steel plate cutting:
The cutting of the steel plate is closely related to the drawing design, workers' technique and cutting equipment.
Normally there are three types of cutting machines, you can see from the pictures here.
Flame cutting is used for iron plates over 40mm thick.
While plasma cutting is for steel plate that in between 20-40mm.Effectively process metal thickness of 0.3mm or more thermal processing(cutting, welding, brazing, hardening, painting, etc.)
Laser cutting is for steel plate between 8-20mm.
It is great for cutting that requires high precision. For example, cutting steel components for bumper, hood, and driver's cab. The advantages of laser cutting are: low temperature, so the plate is not likely deformed; the disadvantage is that it consumes a lot of power.
When the steel sheet is uneven or the cutting speed is not steady, a melting point or break-point will form; so during the cutting process, workers need to go back and forth to check.
