| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | FE20 |
| Minimum Order Quantity: | 1 Set |
| Price: | 12000-15000 USD |
| Packaging Details: | Nude , 8 sets in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Supply Ability: | 300 sets / month |
| Rate Loading: | 2000 Kg | Load Center: | 500 Mm |
|---|---|---|---|
| Battery Type: | Lead Acid | Wheel Base: | 1500 Mm |
| Tire Type: | Air,2F*2R Tire | Tire Model: | 7.0-12-12PR |
| Highlight: | Four Wheel Electric Powered Forklift,11kw Lifting Electric Powered Forklift,Four Wheel Electric Forklift |
||

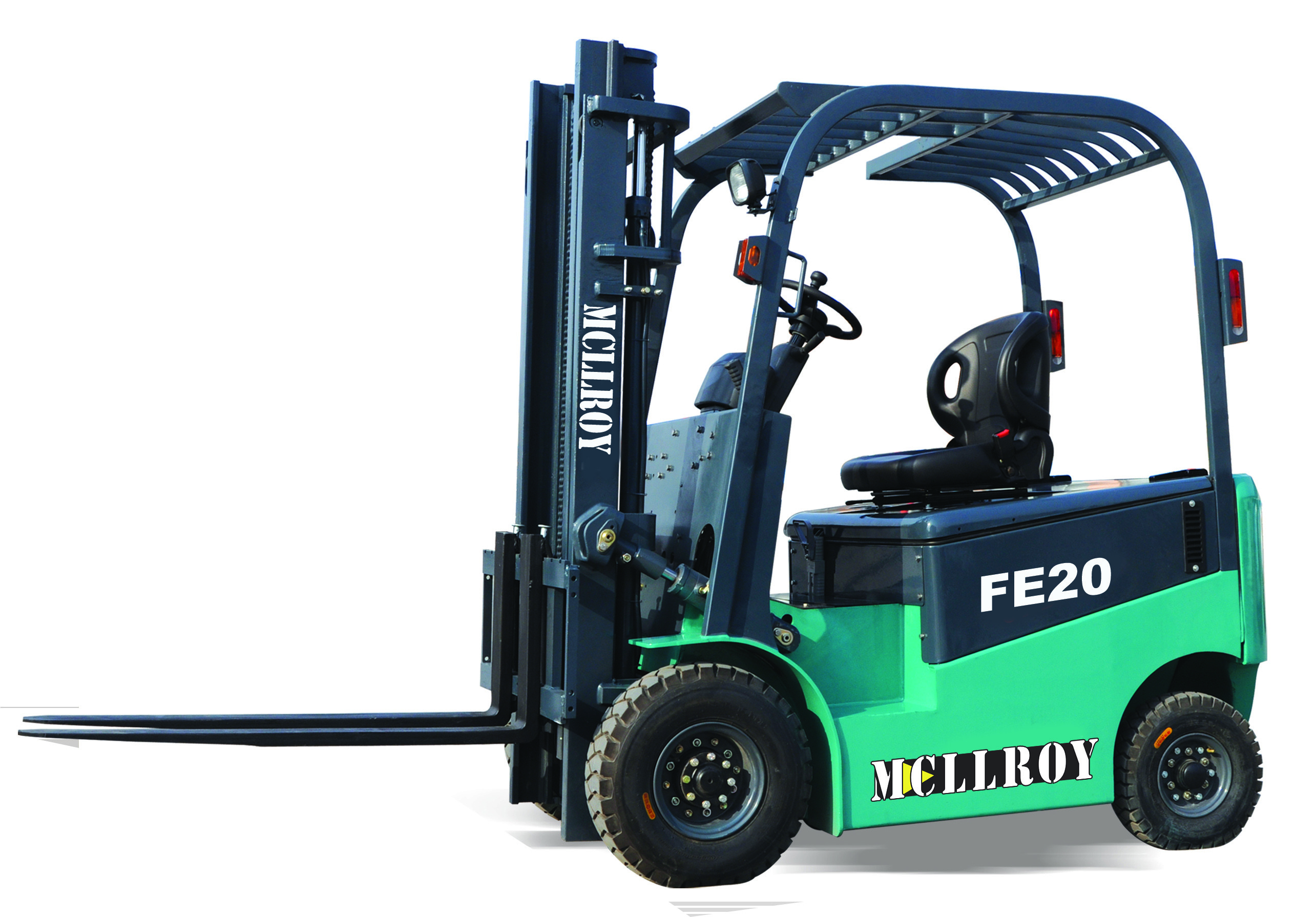

1. Products Description of MCLLROY Electric Forklift
MCLLROY agile three and four wheel Electric Forklifts are built with powerful motors for greater claiming ability and higher travel speeds, making them a perfect replacement for engine-powered forklifts. First in class for safety, productivity and energy consumption, our compact electric forklift trucks are extremely manoeuvrable where space is limited indoors.
Information on our four wheel electric forklifts for sale, including load capacity, lift height, mast type, can be found below.
2. Specification
| FE15 | FE20 | |
| Rate Loading Weight | 1500 KG | 2000 KG |
| Mast Stage | 2 | 2 |
| Lifting Height | 3000 mm | 3000 mm |
| Driven Motor Power(60 min) | 7.5 KW | 9 KW |
| Oil Pump Motor Power(15 min) | 7.7 KW | 11 KW |
| Battery | 48V/420Ah | 48V/600Ah |
| Battery Box Size | 440*830*780 mm | 500*900*760 mm |
| Motor& Controller Type | AC | AC |
| Transimission | Auto | Auto |
| Fork Size | 100*35*1070 mm | 1070*122*40 mm |
| Tire Type | Air | Air |
| Front Tire | 6.50-10-10PR | 7.00-12-12PR |
| Rear Tire | 5.00-8-10PR | 18*7-8PR |
| Overhead Guard Height | 2120 mm | 2140 mm |
| Max.Extended Height | 4020 mm | 4030 mm |
| Right-Angle Store Aisle (pallet 1200*1200mm) |
3770 mm | 3930 mm |
| Overall Length(without fork) | 2250 mm | 2360 mm |
| Overall Width | 1075 mm | 1160 mm |
| Overall Height(Mast closed) | 2120 mm | 2140 mm |
| Total Weight(with battery) | 3100 KG | 4200 KG |
| Front Overhang | 410 mm | 448 mm |
| Angle of Mast inclination (forward /backward) |
6°/12° | 6°/12° |
| Load Center | 500 mm | 500 mm |
| Mast Ground Clearance (full loading) |
100 mm | 110 mm |
| Center Ground Clearance (full loading) |
90 mm | 115 mm |
| Wheel Base | 1450 mm | 1500 mm |
| Wheel Track(front/rear) | 895/920 mm | 973/950 mm |
| Minimum Turning Radius | 1960 mm | 2100 mm |
| Max.Travel Speed(full/no loading) | 12/13 km/h | 13 km/h |
| Max. Lifting Speed(full/no Loading) | 270/350 mm/s | 260/360 mm/s |
| Maximum Permissible Gradient | 15 ° | 15 ° |
3. Details and Advantages of MCLLROY Electric Forklift
1) Fully adjustable seat offers more leg room
2) Adjustable steering column offers ergonomic work place
3) Multi-function display gives key information at a glance
4) Clear-view mast and overhead guard gives operators an excellent view of the load
5) The newly designed LED dashboard indicates running hours, self-diagnosis and the battery life with its Curtis AC system.
6) The adoption of the highly efficient AC system allows for better reliability and longer service life.
4. Attachment of MCLLROY Forklift
MCLLROY forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
5.Production lines of MCLLROY Forklift
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Material procurement:
For the parts that can be inspected on site, our company has a dedicated quality inspector, such as whether the cylinder is leaking, these can be found out on site, and only qualified parts can be put into the warehouse; for conventional parts, the monthly defective product rate should be less than five in every 1000 parts, if it exceeds, our company sign a punishment agreement with our suppliers. If it exceeds 1%, we will pay $150 less to our supplier, if defect rate exceeds 2%, we will be deduct $300, if it exceeds 3%, we will pay $600 less, and it will double in turn.
with this agreement, suppliers will take it seriously. So in recent years, our company’s after-sales complaints have reduced, and when we offer better quality product, the reputation is getting better, and our customers' business grew with us.
6.Inspection of MCLLROY Forklift

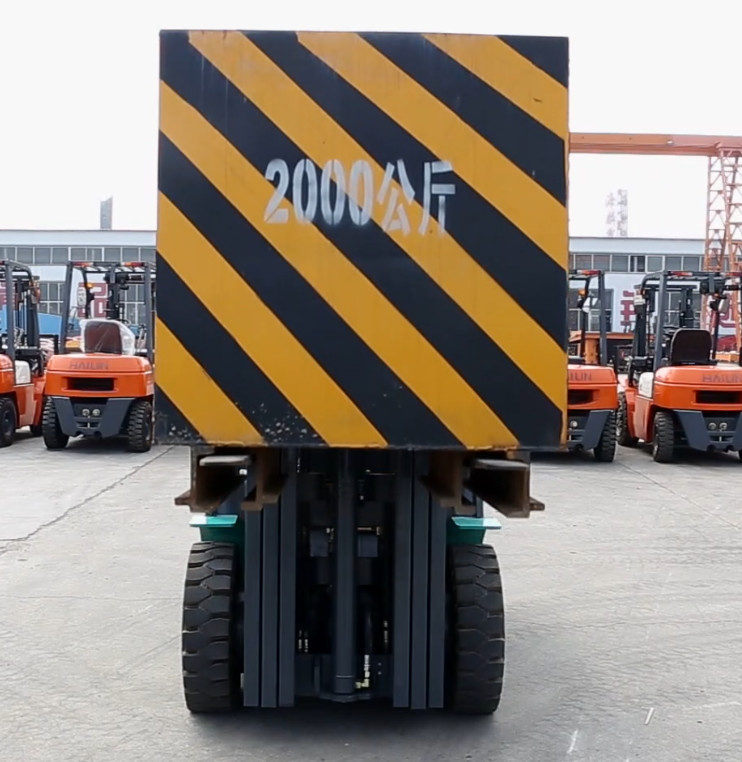

All of MCLLROY forklifts need to be seriously tested before delivery such as tilting angle test, brake system test,wheel lock test,climbing test, steering test, lifting test and others.
MCLLROY diesel forklift with paper roll clamp have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.

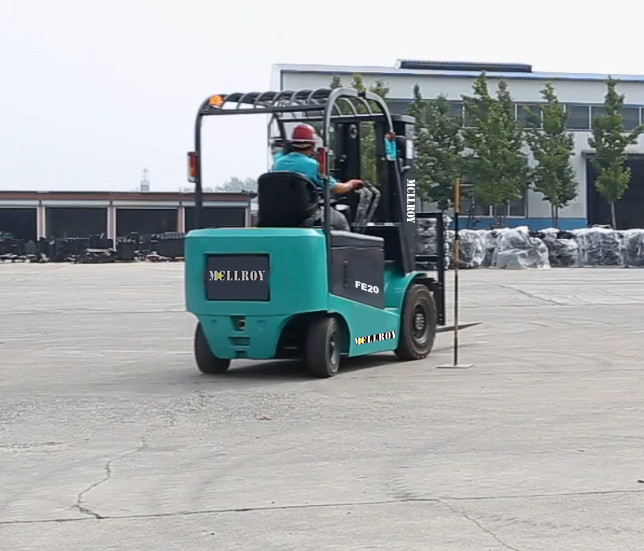

Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.
7.Certification
Product quality determines customer satisfaction thus the life span of a company.
MCLLROY not only acknowledged by the ISO9001:2000 international quality control system
and ISO 9001:2015 quality management system certification,but acquired the CE certificate.
8.Why Choose Us
MCLLROY Forklift have strict indoor and outdoor quality control system which includes braking performance, the inclination angle of the mast, detection of chassis oil leakage, counterweight, loading, lifting, tilting, turning, climbing, etc.
To ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery. If not passed any test, the forklift is not allowed leave from our factory. If the storage time exceeds 1 month, we need to do regular maintenance and testing until it leaves the factory.
