| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL918D |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Yun Nei 490 | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 42 KW | Emissions: | EU Stage II |
| Operating Weight: | 2500 Kg | Rated Load: | 800 Kg |
| Bucket Capacities: | 0.2 M³ | Max. Travel Speed: | 40-45 Km/h |
| Gear Box: | 240 Integral Torque Converter | Axle: | 130 Heavy Duty |
| Axle Base: | 1800 Mm | Brake: | Drum Brake |
| Hydraulic Cycle Time - Lift: | ≤ 6 S | Min. Ground Clearance: | 300 Mm |
| Wheel Base: | 1300 Mm | Reach At Max.Dump Height: | 2800 Mm |
| Dump Reach: | 870 Mm | Overall Length - With Bucket: | 4700 Mm |
| Overall Width: | 1600 Mm | Overall Height: | 2480 Mm |
| Tyre Size: | 7.50-16 | Breakout Force: | 40 KN |
| Joystick: | Mechanical | Min. Turning Radius: | ≤ 3200 Mm |
| Hour Meter: | Yes | Tool Box: | Yes |
| Dual Hight&Low Speed Handle: | Yes | Air Conditioning/heater: | Option |
| Quick Change: | Option | Multifunctional Attachment: | Option |
| Hydraulic Pilot: | Option | Engine Cover: | Electrical Upturned |
| Highlight: | 800kg Rated Load Front Wheel Loader,0.2m3 Front Wheel Loader |
||

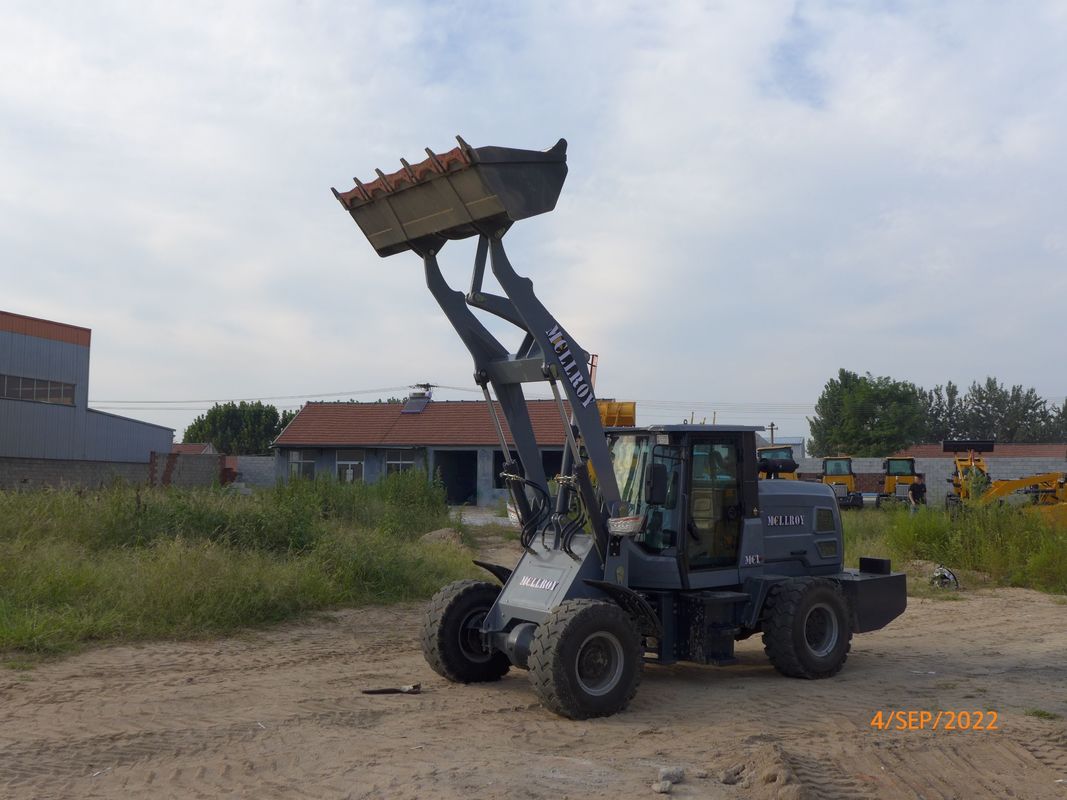

1. Products Description of MCLLROY Wheel Loader
The MCLLROY Wheel Loader is an exceptional option for those seeking a small yet robust machine, with its high lifting and dumping heights and significant breakout force when equipped with buckets or pallet forks, guaranteeing maximum productivity.
We power this loader with a reliable Yunnei engine. As numerous developing countries do not have stringent regulations concerning engine emissions, we find that utilizing Yunnei engines is a fitting choice for exports to Southeast Asia. These engines are highly dependable in their performance, cost-effective, and are regarded as the most economical engine option for small loaders.
|
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Dual high and low speed gearboxes and handles for quick switching between work and travel modes.
2) The visual skylight design makes overhead shovelling and unloading operations more convenient.
3) The cab has a wide field of view, which facilitates work in all directions and safe walking.
4) Uses engineering tyres with a rubber content of over 38% .
5) External distribution valve and removable fuel tank for easy servicing and maintenance.
4. Inspection of MCLLROY Wheel Loader
Proper inspection is crucial to ensure that the loader is in good working condition. MCLLROY technicians usually inspect the following during the inspection process:
Adjusting the tire pressure and driving the loader to an inspection platform to check if the bucket is level to the ground when it is on the ground. This ensures that the loader is stable and not tilted, providing safety during operation.
Checking the hydraulic oil level, lifting the arm, withdrawing the bucket, and checking the hydraulic oil level again. Also, checking the hydraulic oil tank scale to ensure that the oil level is sufficient. (the scale at 11 to 13 means enough). This is important to ensure that the hydraulic system is working correctly and that there is no risk of damage to the loader.
Checking if any bolts are loose or missing, and if there is an oil leaking problem. Loose bolts can cause safety concerns and impact the performance of the loader. Oil leaks can be a sign of a more significant problem, which needs to be addressed promptly.
Checking the track width to see if it is different from standard. This ensures that the track width is within specifications, providing stability during operation, and preventing any damage to the loader's undercarriage components.
These inspections help to ensure that the loader is operating safely, effectively, and in good working condition. Any issues found during the inspection can be addressed promptly, reducing downtime and improving productivity.
