Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MSL940 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $7500-10000 |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Changfa 4102 | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 81 KW | Emissions: | EU Stage II |
| Operating Weight: | 5500 Kg | Load Capacities: | 2000-2300 Kg |
| Bucket Capacities: | 1.2 M³ | Max. Travel Speed: | 40 Km/h |
| Gear Box: | CVT 280 Torque Converter | Axle: | Large Hub Reductro |
| Axle Base: | 2500 Mm | Brake: | Air Brake |
| Hydraulic Cycle Time - Lift: | ≤ 9 S | Min. Ground Clearance: | 320 Mm |
| Wheel Base: | 1970 Mm | Reach At Max.Dump Height: | 3600 Mm |
| Dump Reach: | 1000 Mm | Overall Length - With Bucket: | 6400 Mm |
| Overall Width: | 2200 Mm | Overall Height: | 2950 Mm |
| Tyre Size: | 16/70-20 | Joystick: | Mechanical |
| Min. Turning Radius: | 5000 Mm | ||
| High Light: | mechanical joystick compact articulated wheel loader,front end compact articulated wheel loader,mechanical joystick compact articulating loader |
||
1. Products Description of MCLLROY Wheel Loader
When it comes to construction equipment, it is imperative that it is capable of handling heavy-duty workloads with optimal efficiency. Take the example of a loader - the bucket should have a high capacity for shoveling material, while the loader itself should remain stable during operation. The controls should be flexible, user-friendly, and easy to use, and the equipment should have a low malfunction rate.

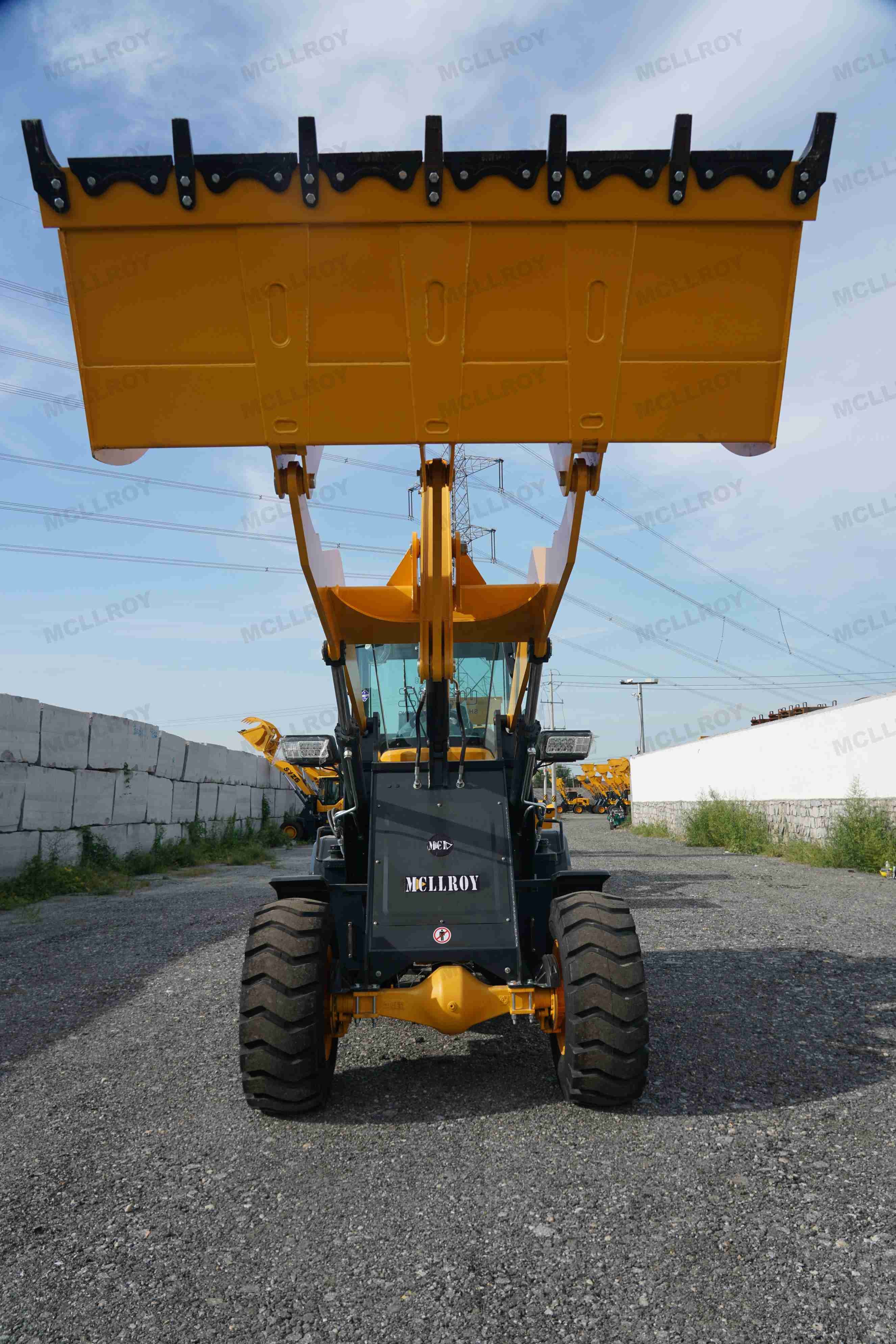

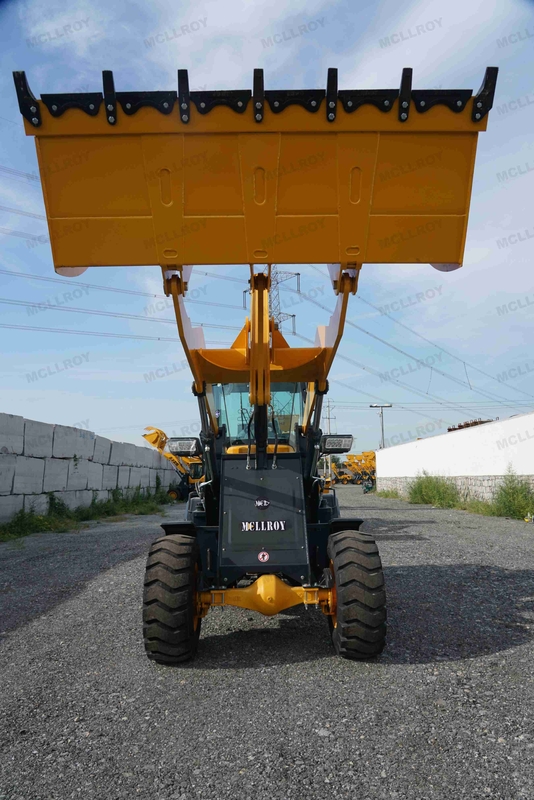

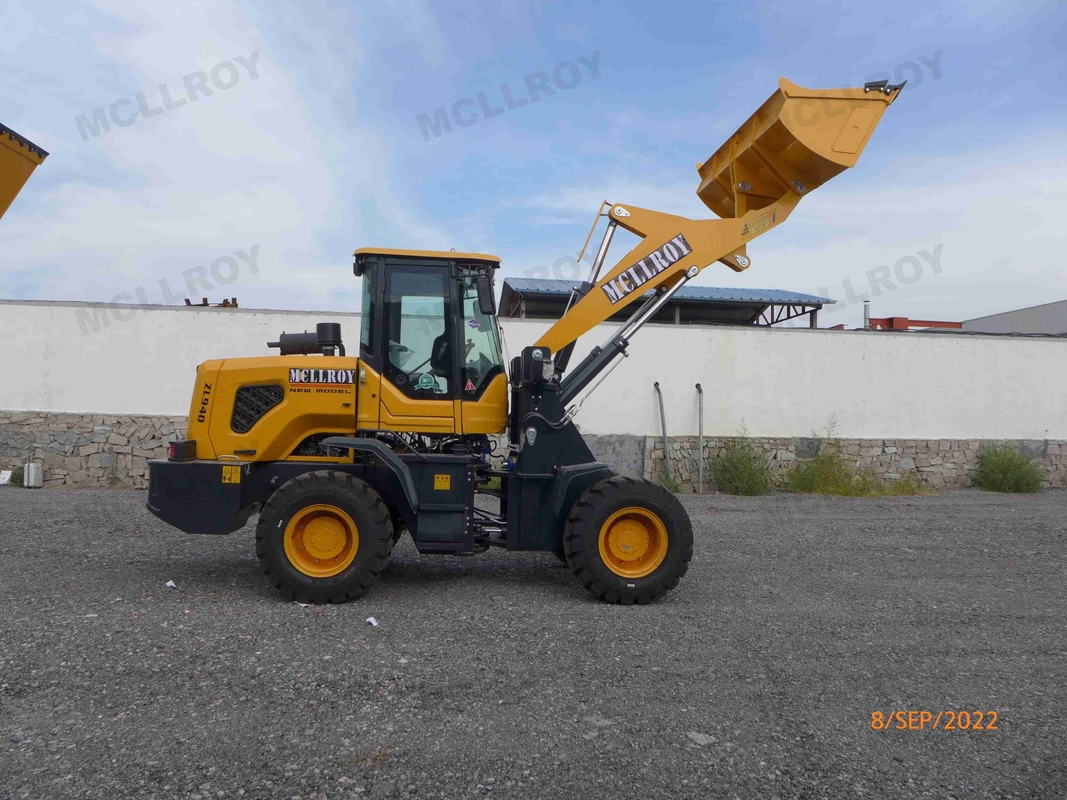

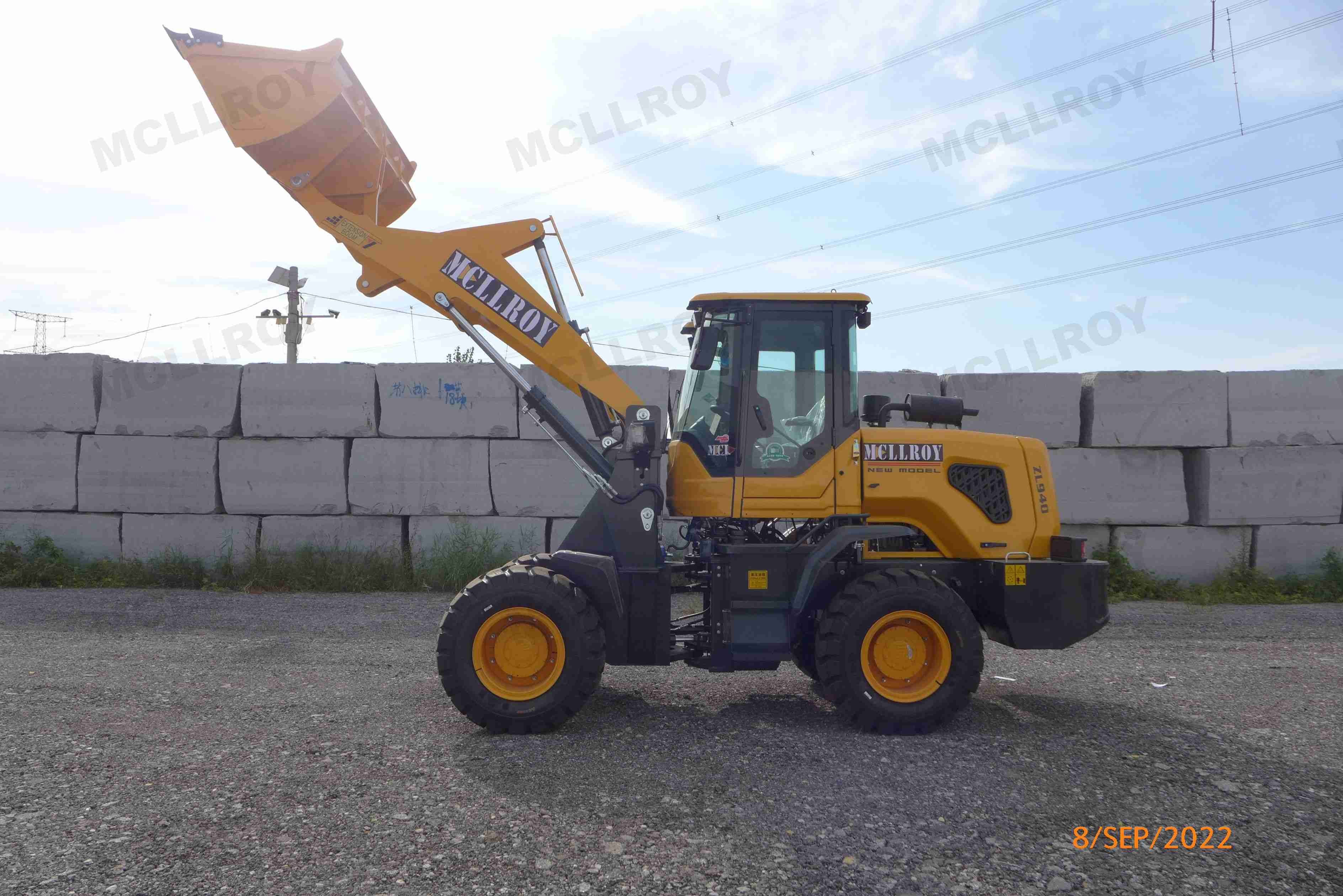

The MCLLROY Wheel Loader is a front-wheel loader with a single bucket, articulated structure, and hydraulic unloading capabilities. It has been meticulously designed and developed in line with the specific requirements of users, while also taking into consideration reference models that incorporate advanced structural features and technologies from both domestic and international markets.
| MSL940/ZL940 | Metric Units |
| Engine Model | Changfa 4102 |
| RPM | 2400 |
| Rated Power | 81 kW |
| Emissions | EU Stage II |
| Operating Weight | 5500 kg |
| Load Capacities | 2000-2300 kg |
| Bucket Capacities | 1.2 m³ |
| Max. Travel Speed | 40 km/h |
| Gear Box | CVT 280 torque converter |
| Axle | Large hub reductro |
| Axle Base | 2500 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 9 s |
| Min. Ground Clearance | 320 mm |
| Wheel Base | 1970 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1000 mm |
| Overall Length - With Bucket | 6400 mm |
| Overall Width | 2200 mm |
| Overall Height | 2950 mm |
| Tyre Size | 16/70-20 |
| Joystick | Mechanical |
| Min. turning radius | 5000 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
Undoubtedly, the MSL932 loader from MCLLROY is the most distinguished machine in its lineup. Its users have lauded its impressive durability, effortless operation, and remarkably low maintenance rate, setting it apart from the rest.
These loaders can be tailored to meet the specific requirements of various industries and applications, including agriculture, general construction, industrial and waste management, landscaping, and snow removal.
One noteworthy feature is the EXT automatic inflating system, which enables the operator to rapidly inflate tires. Moreover, the fuel tank has easily accessible service points, making daily checks a breeze.
The service brake control boasts a dual-booster pump that powers an air-over-caliper disc brake, delivering exceptional brake power, effortless dismantling, and optimum safety and reliability.
4.Attachment of MCLLROY Wheel Loader
The MCLLROY compact wheel loader is available with an optional quick hitch, which enables users to quickly switch between a vast selection of attachments, such as hay grapples, grass forks, wood forks, timber grapples, pallet forks, bale grapples, four-in-one buckets, straight snow blades, and numerous others. This feature significantly enhances the machine's flexibility and versatility, making it an indispensable asset for a wide range of applications, including construction sites, recycling facilities, and agricultural work.
