Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE/ISO |
Model Number: | MCL918D |
Minimum Order Quantity: | 1 Unit |
Price: | $4000-6000/ |
Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
Delivery Time: | 5-8 days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
Supply Ability: | 100 Units / Month |
Engine Model: | Yun Nei 490 | RPM: | 2400 |
---|---|---|---|
Rated Power: | 42 KW | Emissions: | EU Stage II |
Operating Weight: | 2500 Kg | Rated Load: | 800 Kg |
Bucket Capacities: | 0.2 M³ | Max. Travel Speed: | 40-45 Km/h |
Gear Box: | 240 Integral Torque Converter | Axle: | 130 Heavy Duty |
Axle Base: | 1800 Mm | Brake: | Drum Brake |
Hydraulic Cycle Time - Lift: | ≤ 6 S | Min. Ground Clearance: | 300 Mm |
Wheel Base: | 1300 Mm | Reach At Max.Dump Height: | 2800 Mm |
Dump Reach: | 870 Mm | Overall Length - With Bucket: | 4700 Mm |
Overall Width: | 1600 Mm | Overall Height: | 2480 Mm |
Tyre Size: | 7.50-16 | Breakout Force: | 40 KN |
Joystick: | Mechanical | Min. Turning Radius: | ≤ 3200 Mm |
Hour Meter: | Yes | Tool Box: | Yes |
Highlight: | 0.2M3 Front End Wheel Loader,Mechanical Joystick Front End Wheel Loader |
1. Products Description of MCLLROY Wheel Loader
In the construction industry, it is essential that equipment is capable of efficiently handling heavy-duty workloads. For instance, in the case of a loader, it is crucial that the bucket has a high capacity for shoveling material, while simultaneously ensuring that the loader remains stable during operation. Controls should be user-friendly, flexible, and easy to use, and equipment must have a low malfunction rate.

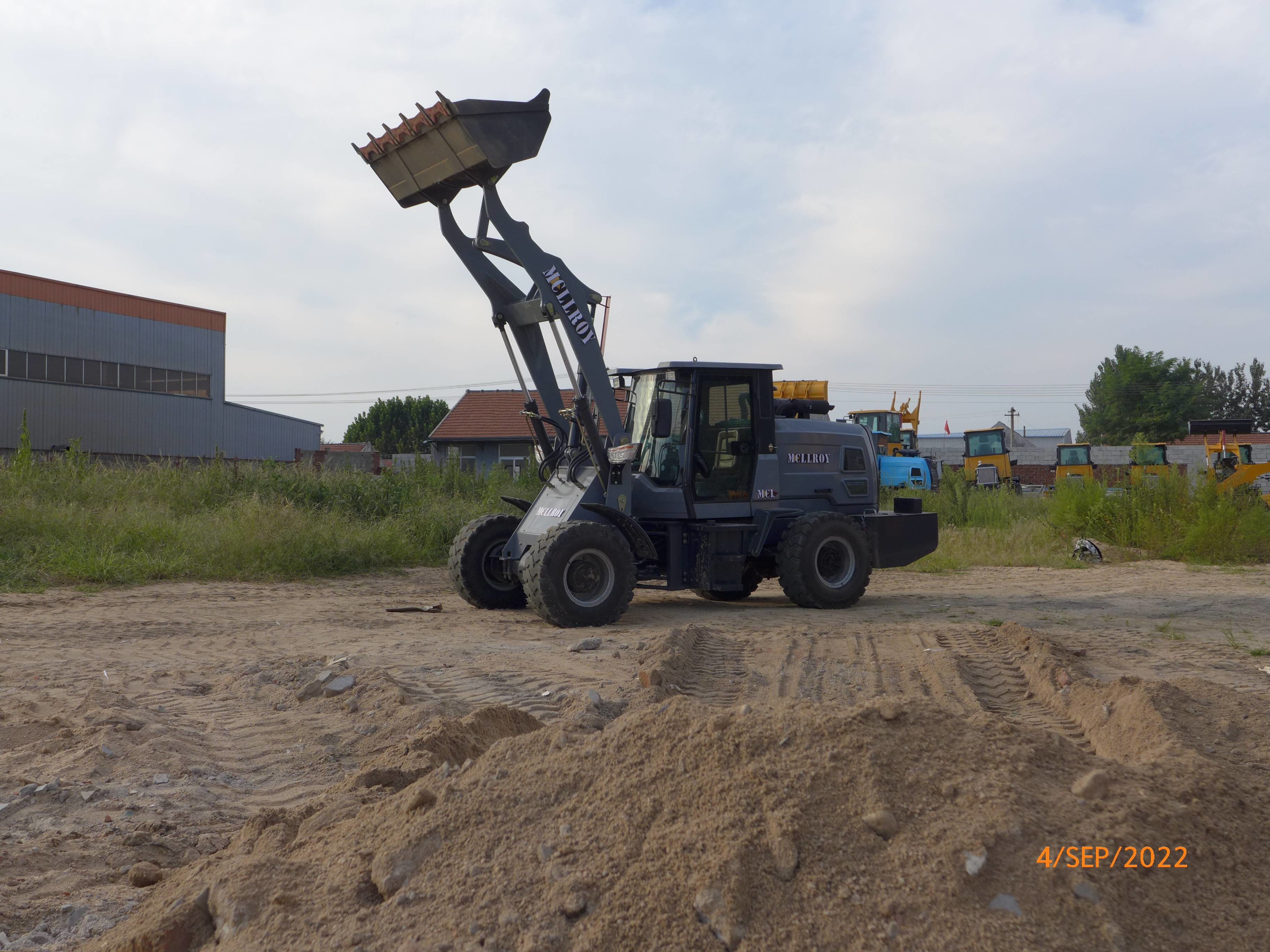

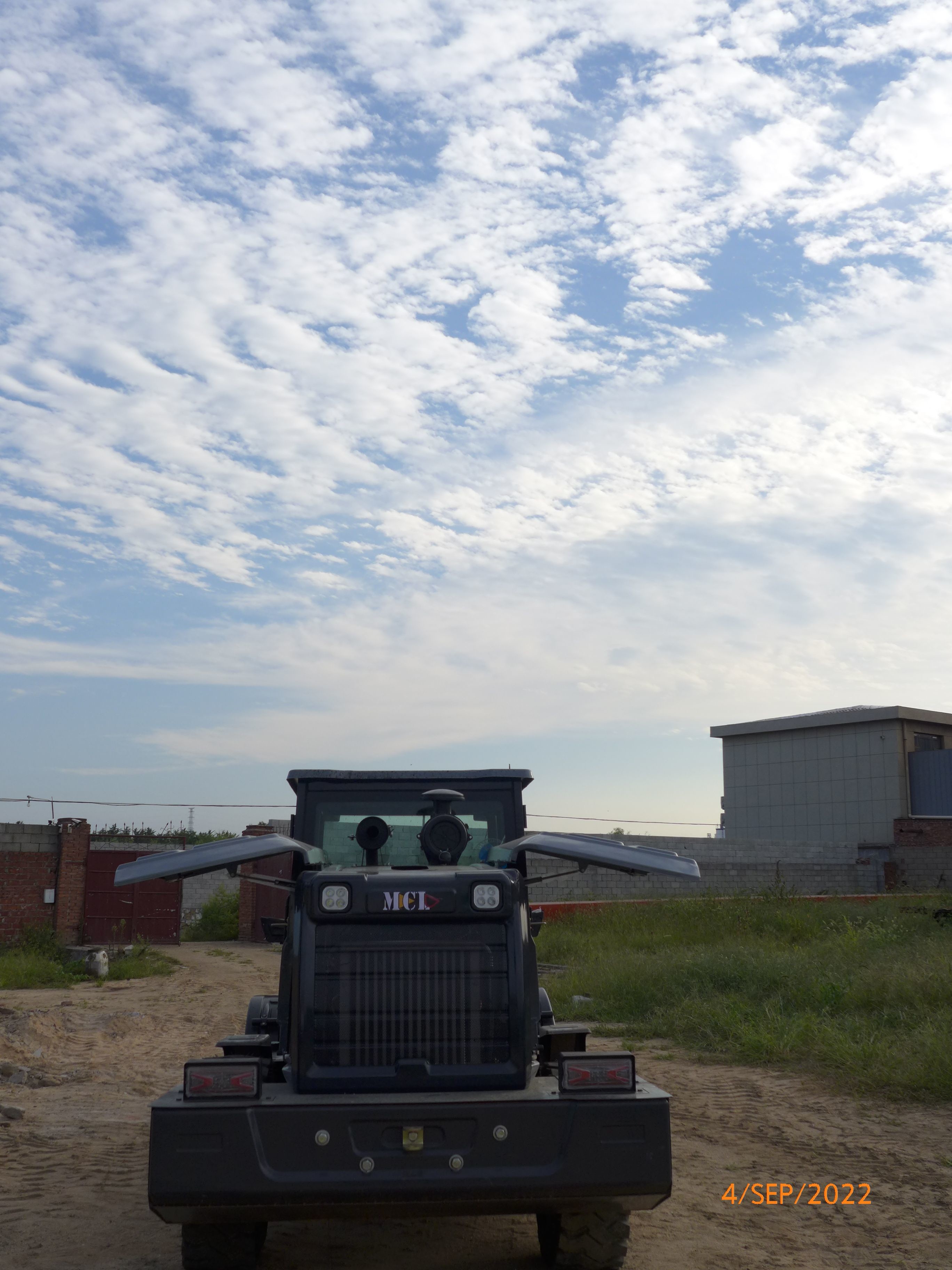

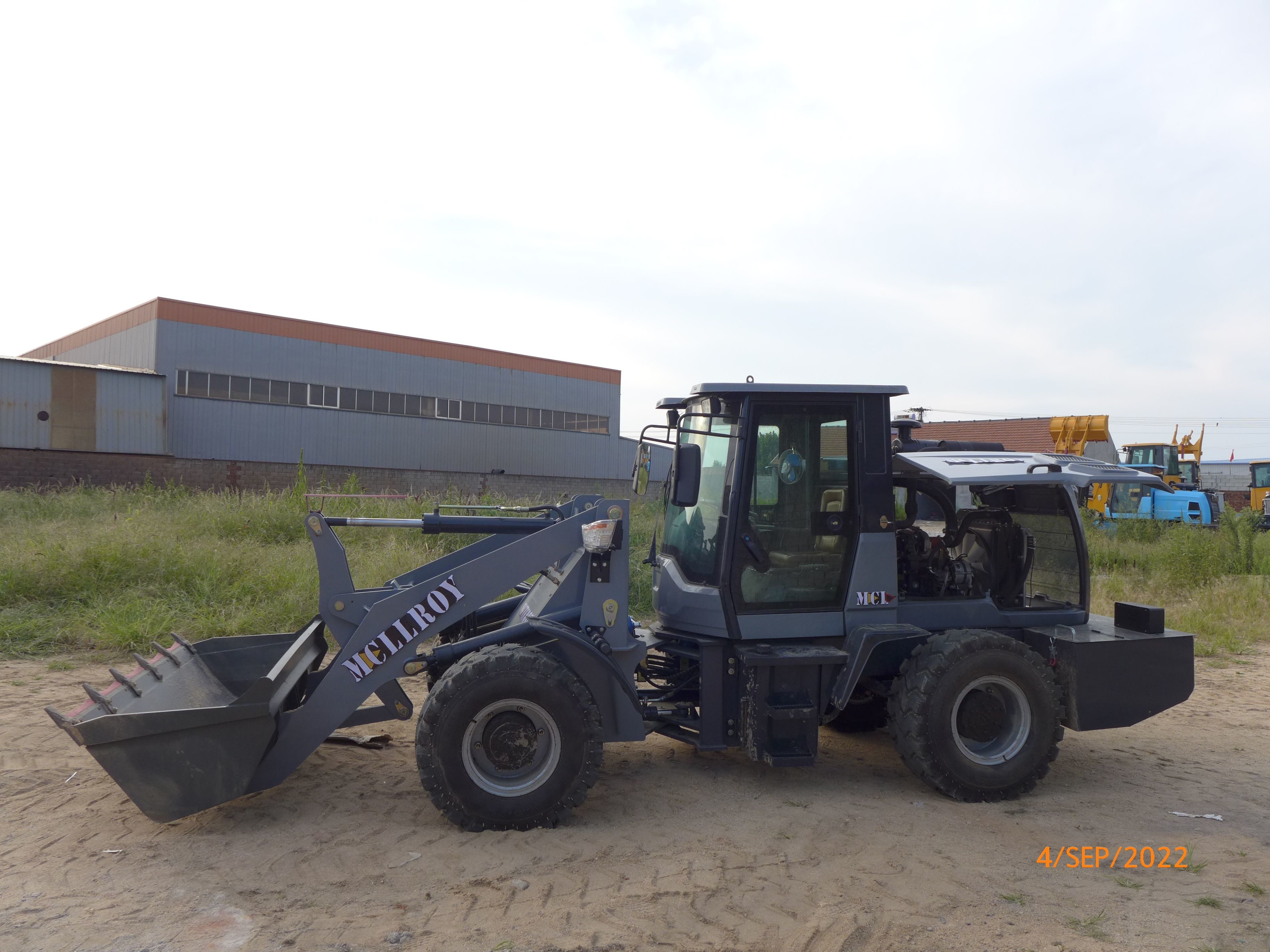

The MCLLROY Wheel Loader is an exceptionally crafted front-wheel loader, which comes with a single bucket, articulated structure, and hydraulic unloading capabilities. The machine has been meticulously designed and developed in accordance with the specific requirements and needs of users while also factoring in reference models that incorporate advanced structural features and technologies from both domestic and international markets.
MCL918D | Metric Units |
Engine Model | Yun Nei 490 |
RPM | 2400 |
Rated Power | 42 kW |
Emissions | EU Stage II |
Operating Weight | 2500 kg |
Rated Load | 800 kg |
Bucket Capacities | 0.2 m³ |
Max. Travel Speed | 40-45 km/h |
Gear Box | 240 Integral Torque Converter |
Axle | 130 Heavy Duty |
Axle Base | 1800 mm |
Brake | Drum Brake |
Hydraulic Cycle time - lift | ≤ 6 s |
Min. Ground Clearance | 300 mm |
Wheel Base | 1300 mm |
Reach at Max.Dump Height | 2800 mm |
Dump Reach | 870 mm |
Overall Length - With Bucket | 4700 mm |
Overall Width | 1600 mm |
Overall Height | 2480 mm |
Tyre Size | 7.50-16 |
Breakout Force | 40 KN |
Joystick | Mechanical |
Min. turning radius | ≤ 3200 mm |
Hour meter | Yes |
Tool Box | Yes |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Using the Yunnei China II engine which has the advantage of high efficiency and durability, making it popular in agricultural and small-scale construction projects.
2) Isuzu axles for high speed travel.(small hub reduction axle is optional)
3) The horizontal frame design effectively protects the gearbox and steering cylinder.
4) The loader has a high chassis and a minimum ground clearance of 29 cm, making it suitable for mountain, farm and mining operations.
4. Inspection of MCLLROY Wheel Loader
It is important to note that inspections are a crucial part of ensuring the proper functioning of any machine, including loaders. MCLLROY technicians typically need to inspect the following parts:
Adjusting the tire pressure and driving the loader to the inspection platform to ensure that the bucket is level when on the ground.
Checking the hydraulic oil level, lifting the arm, withdrawing the bucket, and checking the hydraulic oil level again. Additionally, checking the hydraulic oil tank scale to ensure that the oil level is sufficient (the scale at 11 to 13 means enough).
Checking for any loose or missing bolts and inspecting for any oil leaks.
Checking the track width to ensure that it is within standard specifications.
These inspections help ensure that the loader is safe, effective, and in good working condition. Any issues found during the inspection can be addressed and resolved quickly, reducing downtime and improving productivity.
