Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL940 ZL940 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 76kw | Bucket Capacity: | 1.2m3 |
|---|---|---|---|
| Rated Load: | 2200kg | Max.Dump Clearance: | 3500mm |
| Dumping Height: | 3500mm | Overall Size (L*W*H): | 6330*2170*3080mm |
| Emissions: | EU Stage II | Operating Weight: | 6100 Kg |
| Max. Travel Speed: | 28 Km/h | Gear Box: | CVT 280 Torque Converter |
| Axle: | Large Hub Reductro | Axle Base: | 2560 Mm |
| High Light: | 2560mm Axle Base Compact Wheel Loaders,Tire 1670 Compact Wheel Loaders |
||

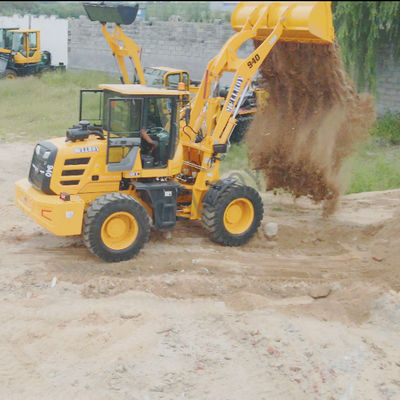

1. Products Description of MCLLROY Wheel Loader
The MCLLROY Wheel Loader is the ideal choice for those in need of a compact but powerful machine, boasting remarkable lifting and dumping heights and a considerable breakout force when equipped with buckets or pallet forks, ensuring maximum productivity.
To power this loader, we utilize a reliable Yunnei engine. Since numerous developing nations currently do not have stringent regulations concerning engine emissions, we find that using Yunnei engines is a fitting option for exporting to Southeast Asia. These engines are known for their consistent performance, affordability, and are considered the most cost-effective engine option for small loaders.
2. Specification of MCLLROY Wheel Loader
| MCL 940 | |
| Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6100 kg |
| Rated Load | 2800 kg |
| Bucket Capacities | 1.2 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
| Axle | Large hub reductro |
| Axle Base | 2560 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 6 s |
| Min. Ground Clearance | 400 mm |
| Wheel Base | 1640 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 6240 mm |
| Overall Width | 2040 mm |
| Overall Height | 2830 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
4.Delivery of MCLLROY Wheel Loader
The delivery process of MCLLROY places utmost importance on ensuring the stability of the machine during transportation. Given the unpredictable nature of the oceanic climate, improper reinforcement can cause significant harm to the machine. For instance, an inadequately reinforced lifting boom can lead to its collapse, causing damage to the cab and glass.
MCLLROY employs the following shipping process to ensure the stability of the machine:
The toolbox is stored inside the loader.
The seat and control panel are wrapped in PVC.
The warning lights are placed inside the loader.
The loader is driven into the container.
The machine is secured using heavy steel ropes to ensure stability.
Triangular wooden blocks are fastened beneath the tires.
The container door is then closed and sealed, and the loader is now ready for shipment.
Ensuring stability during transportation is vital to prevent any damage to the machine.
