Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL946 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ Unit |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| China: | Yunnei 4102 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 76 KW | Emissions: | EU Stage II |
| Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
| Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
| Gear Box: | CVT 300 Split Torque Converter | Axle: | Large Hub |
| Axle Base: | 2600 Mm | Brake: | Air Brake |
| Hydraulic Cycle Time - Lift: | ≤ 10 S | Min. Ground Clearance: | 370 Mm |
| Wheel Base: | 2100 Mm | Reach At Max.Dump Height: | 3600 Mm |
| Dump Reach: | 1180 Mm | Overall Length - With Bucket: | 6660 Mm |
| Overall Width: | 2300 Mm | Overall Height: | 3000 Mm |
| Highlight: | Front End Compact Wheel Loaders,2600mm Axle Base Compact Wheel Loaders |
||

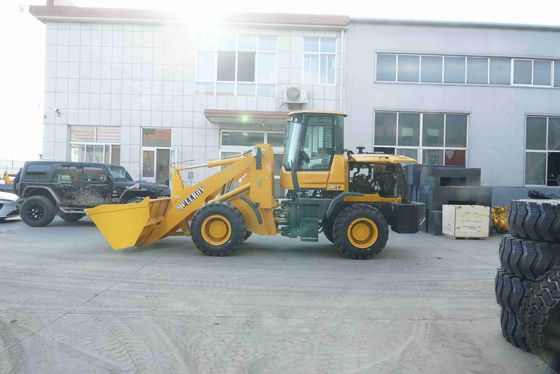

1. Products Description of MCLLROY Wheel Loader
In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.
The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.
The flexibility and light operation mainly depends on the hydraulic system of the loader.
The low failure rate depends on quality as well as the after-sales service.
MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.
2. Specification of MCLLROY Wheel Loader
| MCL946 | Metric Units |
| Engine Model | Yunnei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6350 kg |
| Rated Load | 2200-2500 kg |
| Bucket Capacities | 1.4 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT 300 split torque converter |
| Axle | Large hub |
| Axle Base | 2600 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 10 s |
| Min. Ground Clearance | 370 mm |
| Wheel Base | 2100 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1180 mm |
| Overall Length - With Bucket | 6660 mm |
| Overall Width | 2300 mm |
| Overall Height | 3000 mm |
| Tyre Size | 16/70-24 |
| Joystick | Mechanical |
| Min. turning radius | 5500 mm |
| Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
| Air Conditioning/heater | Option |
| Quick Change | Option |
| Multifunctional Attachment | Option |
3. Details and Advantages of MCLLROY Compact Wheel Loader
walking.
1) The horizontal frame design effectively protects the gearbox and steering cylinder.
2) The loader has a high chassis and a minimum ground clearance of 29 cm, making it suitable for mountain, farm and mining operations.
3) Stable and proven hydraulic system with triple-wire hydraulic hoses for short cycle times and efficient operation.
4) With an anti-rollover cab, safety, guaranteed.The use of high pressure tempered glass makes it less likely that people will be injured even if the glass breaks.
4. Inspection of MCLLROY Wheel Loader
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts, track width ,dashboard , electrical system and road testing , MCLLROY technicians usually need to inspect the followings(Parts IV) :
Document :the user manual, loader certificate, engine certificate maintenance guide and warranty, we put them inside the cab. The worker then put the stickers like safety warning signs and on the loader.
And now, loader is ready to deliver.
