Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE/ISO |
Model Number: | MCL946 |
Minimum Order Quantity: | 1 Unit |
Price: | $4000-6000/ Unit |
Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
Delivery Time: | 5-8 days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
Supply Ability: | 100 Units / Month |
China: | Yunnei 4102 Supercharged | RPM: | 2400 |
---|---|---|---|
Rated Power: | 76 KW | Emissions: | EU Stage II |
Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
Gear Box: | CVT 300 Split Torque Converter | Axle: | Large Hub |
Axle Base: | 2600 Mm | Brake: | Air Brake |
Hydraulic Cycle Time - Lift: | ≤ 10 S | Min. Ground Clearance: | 370 Mm |
Wheel Base: | 2100 Mm | Reach At Max.Dump Height: | 3600 Mm |
Highlight: | Construction Front End Compact Wheel Loaders,Compact Wheel Loaders 2500kg |

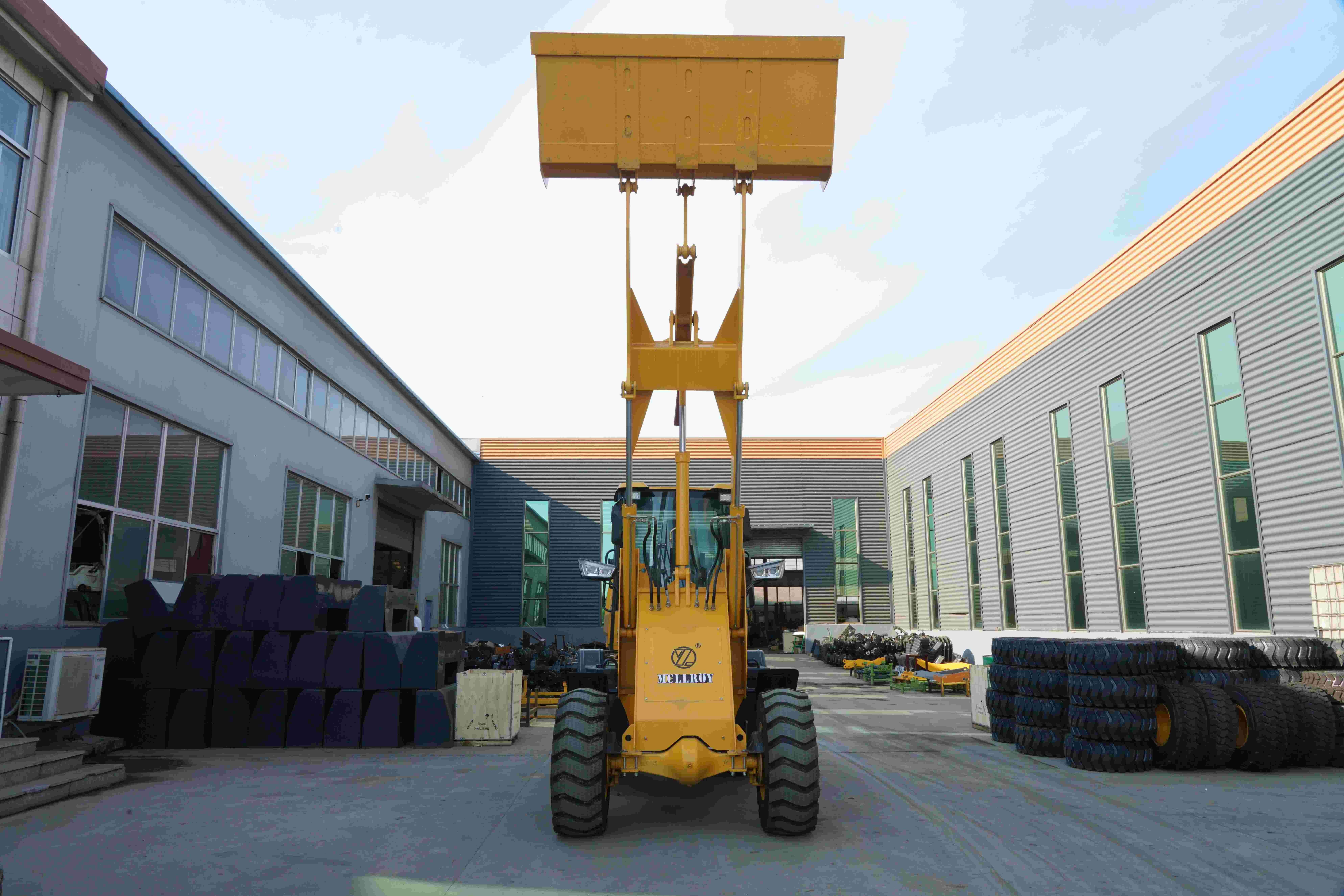

1. Products Description of MCLLROY Wheel Loader
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification of MCLLROY Wheel Loader
MCL946 | Metric Units |
Engine Model | Yunnei 4102 Supercharged |
RPM | 2400 |
Rated Power | 76 kW |
Emissions | EU Stage II |
Operating Weight | 6350 kg |
Rated Load | 2200-2500 kg |
Bucket Capacities | 1.4 m³ |
Max. Travel Speed | 45 km/h |
Gear Box | CVT 300 split torque converter |
Axle | Large hub |
Axle Base | 2600 mm |
Brake | Air Brake |
Hydraulic Cycle time - lift | ≤ 10 s |
Min. Ground Clearance | 370 mm |
Wheel Base | 2100 mm |
Reach at Max.Dump Height | 3600 mm |
Dump Reach | 1180 mm |
Overall Length - With Bucket | 6660 mm |
Overall Width | 2300 mm |
Overall Height | 3000 mm |
Tyre Size | 16/70-24 |
Joystick | Mechanical |
Min. turning radius | 5500 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
walking.
1) The horizontal frame design effectively protects the gearbox and steering cylinder.
2) The loader has a high chassis and a minimum ground clearance of 29 cm, making it suitable for mountain, farm and mining operations.
3) Dual high and low speed gearboxes and handles for quick switching between work and travel modes.
4) The visual skylight design makes overhead shovelling and unloading operations more convenient.
4. Inspection of MCLLROY Wheel Loader
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts and track width,MCLLROY technicians usually need to inspect the followings(Parts II) :
1) Check the meters reading on dash board inside the cab,including
n brake pump pressure: 0.4-0.8;
n lubricant oil pressure: 0.2-0.6;
n water temperature: check if it is too high after the testing;
n torque converter pressure: 2.2-2.4
n (at full load and step heavily on the accelerate pedal)
2) Check if head light, tail light, on and off switch of different functions, and radio operating normally, if electric wires are exposed.
