| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL946 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ Unit |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| China: | Yunnei 4102 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 76 KW | Emissions: | EU Stage II |
| Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
| Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
| High Light: | 2.5 Ton Agriculture Wheel Loader,Small Agriculture Wheel Loader |
||

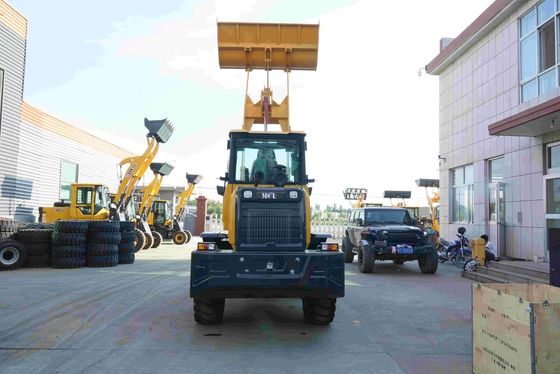

1. Products Description of MCLLROY Wheel Loader
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification of MCLLROY Wheel Loader
| MCL946 | Metric Units |
| Engine Model | Yunnei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6350 kg |
| Rated Load | 2200-2500 kg |
| Bucket Capacities | 1.4 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT 300 split torque converter |
| Axle | Large hub |
| Axle Base | 2600 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Stable and proven hydraulic system with triple-wire hydraulic hoses for short cycle times and efficient operation.
2) With an anti-rollover cab, safety, guaranteed.The use of high pressure tempered glass makes it less likely that people will be injured even if the glass breaks.
3) Ergonomic adjustable seat for less fatiguing driving.
4) The general dashboard and integrated hydraulic operating lever design make driving simple and easy to handle.
4.Production lines of MCLLROY Wheel Loader
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory arrange seven steps for assembly. There are over a thousand parts in a loader. I will talk about assembly of major components.
The fifth step of assembly:Install the cab floor on the loader, connect the hydraulic oil pipe to radiator, install oil tanks, steering oil tank and pipeline, install driver's cab bumper, connect battery to electric system, add diesel and hydraulic oil, and then install engine hood, install air filter, diesel filter, silencer, install engine throttle cable, flame-out cable, install handbrake cable.
The hydraulic oil pipeline is connected at this step, then screws and clamps needed to be tighten here.
There must not be oil leaks after installation of pipeline. Our workers will make a mark to remind themselves which pipe has been installed, and this can prevent subsequent malicious reports or after-sales disputes.
Here is the mark made by our worker after pipeline is connected. If someone in next step try to deliberately loosen the screw, resulting in oil leakage from the pipes, then this mark will be misaligned. In the after-sales process, we will also encounter some customers who unscrewed the pipeline screws without notice, and finally complained that there is a problem with the product and the tubing is leaking. At this time, this mark can address the problem. Because of the screw that was loosened twice, this marking line will be misaligned.
The installation in this step is more complicated, so there are 4 workers.
