| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL946 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/Unit |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Yunnei 4102 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 76 KW | Emissions: | EU Stage II |
| Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
| Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
| Gear Box: | CVT 300 Split Torque Converter | Axle: | Large Hub |
| Axle Base: | 2600 Mm | Brake: | Air Brake |
| Hydraulic Cycle Time - Lift: | ≤ 10 S | Min. Ground Clearance: | 370 Mm |
| Wheel Base: | 2100 Mm | Reach At Max.Dump Height: | 3600 Mm |
| Highlight: | Compact Wheel Loaders Front End,Transmission CVT 300 Compact Wheel Loaders |
||

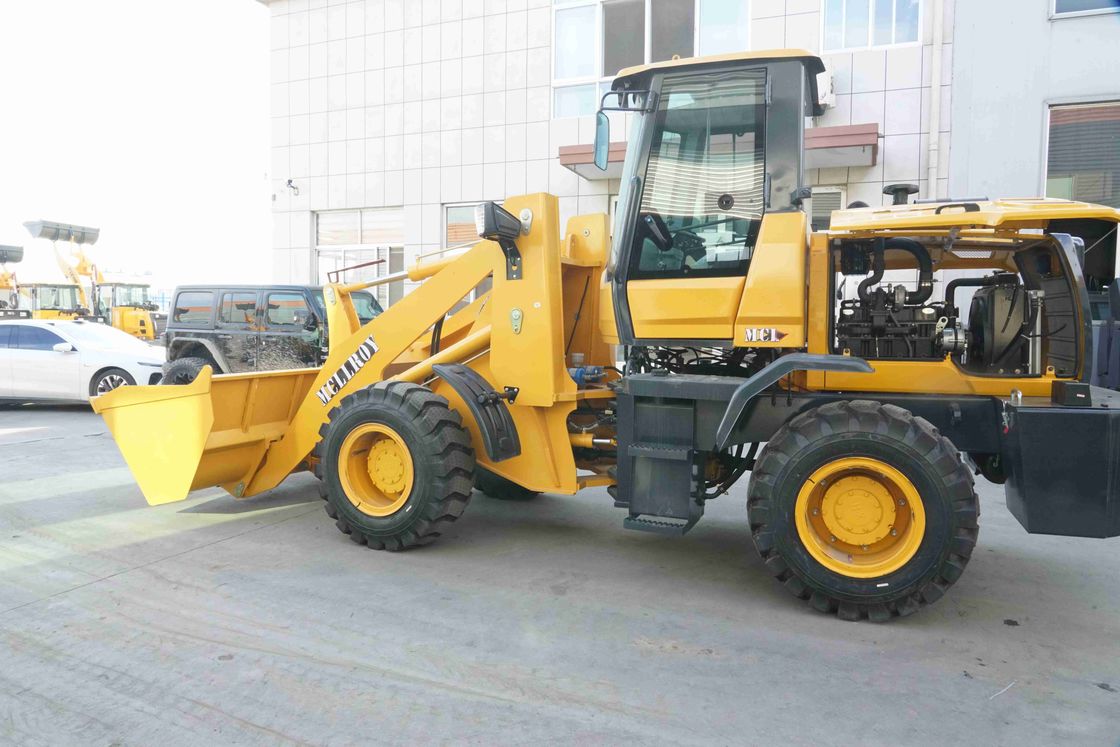

1. Products Description of MCLLROY Wheel Loader
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification of MCLLROY Wheel Loader
| MCL946 | Metric Units |
| Engine Model | Yunnei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6350 kg |
| Rated Load | 2200-2500 kg |
| Bucket Capacities | 1.4 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT 300 split torque converter |
| Axle | Large hub |
| Axle Base | 2600 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 10 s |
| Min. Ground Clearance | 370 mm |
| Wheel Base | 2100 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1180 mm |
| Overall Length - With Bucket | 6660 mm |
| Overall Width | 2300 mm |
| Overall Height | 3000 mm |
| Tyre Size | 16/70-24 |
| Joystick | Mechanical |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Using the Yunnei National II engine which has the advantage of high efficiency and durability, making it popular in agricultural and small-scale construction projects.
2) Cast steel Large hub reduction axle, classic and durable.
3) The horizontal frame design effectively protects the gearbox and steering cylinder.
4) The loader has a high chassis and a minimum ground clearance of 29 cm, making it suitable for mountain, farm and mining operations.
4.Production lines of MCLLROY Wheel Loader
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Steel plate cutting:
The cutting of the steel plate is closely related to the drawing design, workers' technique and cutting equipment.
Normally there are three types of cutting machines, you can see from the pictures here.
Flame cutting is used for iron plates over 40mm thick.
While plasma cutting is for steel plate that in between 20-40mm.
Laser cutting is for steel plate between 8-20mm.
It is great for cutting that requires high precision. For example, cutting steel components for bumper, hood, and driver's cab. The advantages of laser cutting are: low temperature, so the plate is not likely deformed; the disadvantage is that it consumes a lot of power.
When the steel sheet is uneven or the cutting speed is not steady, a melting point or break-point will form; so during the cutting process, workers need to go back and forth to check.
