| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MSL918D |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Mode: | Changfa 490 /Yun Nei 490 | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 42 KW | Emissions: | EU Stage II |
| Operating Weight: | 2500 Kg | Rated Load: | 800-1000 Kg |
| Bucket Capacities: | 0.5 M³ | Max. Travel Speed: | 28 Km/h |
| Gear Box: | CVT 265 Torque Converter | Axle: | Small Hub |
| Axle Base: | 2100 Mm | Brake: | Air Brake |
| Hydraulic Cycle Time - Lift: | ≤ 9 S | Min. Ground Clearance: | 230 Mm |
| Wheel Base: | 1650 Mm | Reach At Max.Dump Height: | 2900 Mm |
| Dump Reach: | 870 Mm | Overall Length - With Bucket: | 4700 Mm |
| Highlight: | Garden 1.5 Ton Wheel Loader,Agriculture 1.5 Ton Wheel Loader,1650mm Wheel Base Wheel Loader Machine |
||

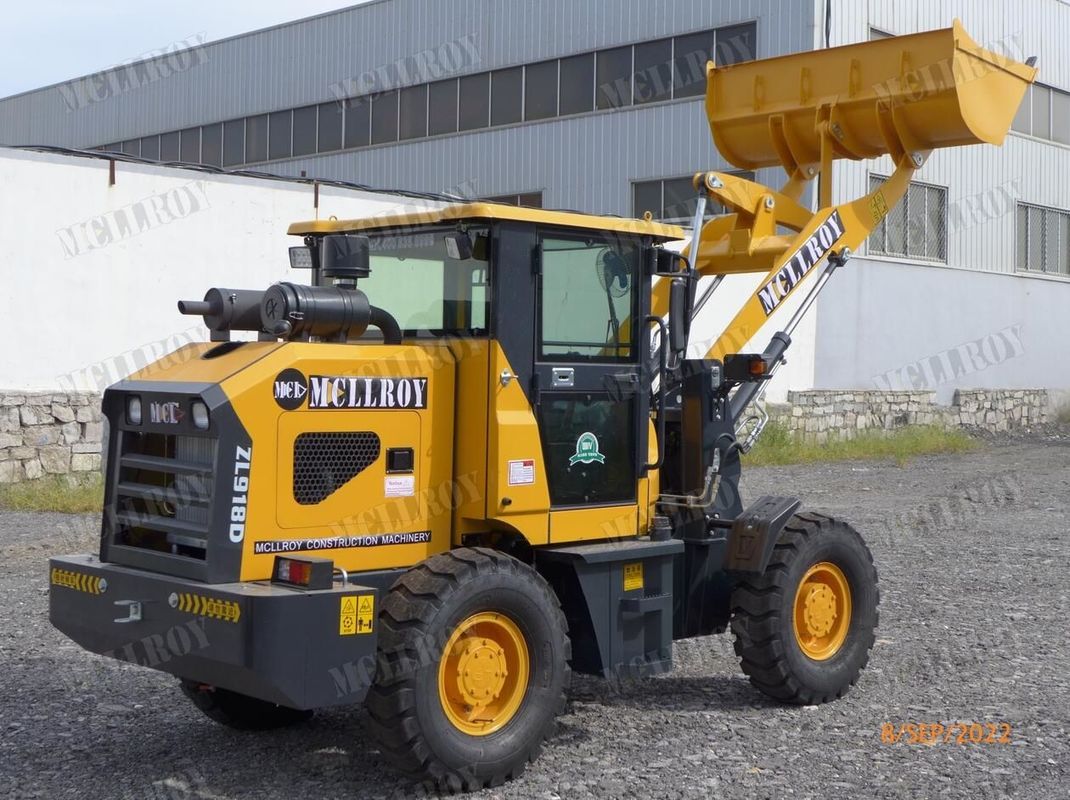

Multifunctional Mini 1.5 Ton Wheel Loader 3200mm Dumping Height
1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification of MCLLROY Wheel Loader
| MSL918D/ZL918D | Metric Units |
| Engine Model | Changfa 490 /Yun Nei 490 |
| RPM | 2400 |
| Rated Power | 42 kW |
| Emissions | EU Stage II |
| Operating Weight | 2500 kg |
| Rated Load | 800-1000 kg |
| Bucket Capacities | 0.5 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
| Axle | Small hub |
| Axle Base | 2100 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 9 s |
| Min. Ground Clearance | 230 mm |
| Wheel Base | 1650 mm |
| Reach at Max.Dump Height | 2900 mm |
| Dump Reach | 870 mm |
| Overall Length - With Bucket | 4700 mm |
| Overall Width | 1600 mm |
| Overall Height | 2150 mm |
| Tyre Size | 1200-16 |
| Breakout Force | 40 KN |
| Joystick | Machanical |
| Min. turning radius | ≤ 4200 mm |
| Hour meter | Yes |
| Tool Box | Yes |
3.Details and advantages of MCLLROY Wheel Loader
Operators will Enjoy All Day comfort with a new multi-function joystick, increased leg room, improved pedal positioning, easier entry/exit and optional speed sensitive ride control. The minimal engine overhang provides excellent rear and corner visibility, making the MCLLROY MSL series easy to operate in confined areas.
4.Why Choose MCLLROY Wheel Loader
A solid reputation from customers is based on strong quality.
With 40 years experience of exporting machinery, MCLLROY machines has reached out to
many countries in Southeast Asia, East Europe, West Africa, South-America and established long-term strategic cooperation with local distributors.
Our strict quality control ease the maintenance and lower the spare parts replacement rate
hence less complaint come from clients and users.
We are proud to promise that all of our machines along with their spare parts are brand new. Ten units will be given away if any used machines is found !!!
CM Issued.
