Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL932 ZL932 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 58kw | Max.Dump Clearance: | 3200mm |
|---|---|---|---|
| Rated Load: | 1800kg | Bucket Capacity: | 1.0m3 |
| Overall Size (L*W*H): | 5500*1620*2750mm | Operating Weight: | 3500 Kg |
| Engine Model: | Yun Nei 490 Supercharged | Gear Box: | CVT 265 Torque Converter |
| Alex: | S-hub Reductro | Brake: | Air Brake |
| Min. Ground Clearance: | 290 Mm | Wheel Base: | 1490 Mm |
| Dump Reach: | ≤ 650 Mm | Overall Length - With Bucket: | 5300 Mm |
| Overall Width: | 1820 Mm | Overall Height: | 2670 Mm |
| Tyre Size: | 20.5-16 | Breakout Force: | 40 KN |
| High Light: | Multipurpose Wheel Loaders Compact,1m3 Wheel Loaders Compact,Compact Wheel Loaders 2Ton |
||
1. Products Description

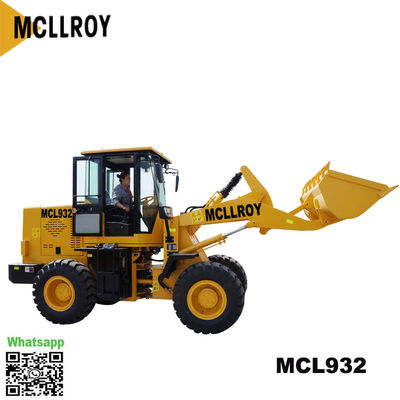

MCLLROY wheel loader is wildly used in construction, agriculture , garden, etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MCL 932/ZL 932 | Metric Units |
| Engine Model | Yun Nei 490 Supercharged |
| RPM | 2400 |
| Rated Power | 58 kW |
| Emissions | EU Stage II |
| Operating Weight | 3670 kg |
| Rated Load | 1800 kg |
| Bucket Capacities | 0.6-1.0 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
| Alex | Small hub |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 7 s |
| Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 5300 mm |
| Overall Width | 1820 mm |
| Overall Height | 2670 mm |
| Tyre Size | 20.5-16 |
| Breakout Force | 40 KN |
| Joystick | Machanical |
| Min. turning radius | ≤ 7000 mm |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Strong driven force ,low fuel consumption ,high economic benefits.
2) Transmission:Split torque converter,not high temperature,easy to repair.
3) Hydraulic system:Open hydraulic system,constant flow gear pump ,heat treatment gear,provide stable high pressure oil for wheel loader.
4) Tire:A variety of patterns to adapt to different perorations ,solid tires available.
4.Delivery
The most important thing for delivery is the stability. The climate at sea is unpredictable. If the reinforcement is improper, it will cause damage to the machine during transportation. For example, if the lifting boom is not properly reinforced, it will cause the boom to fall, smash the cab, and smash the glass.
The shipping process for MCLLROY is as follows:
1.Tool box put in the loader.
2.Seat and control panel warp in PVC.
3.Warning lights put in the loader.
4.Drive the loader inside the Container.
5.Stabilize the loader with heavy steel rope.
6.Fasten triangles wood in bottom of tires.
7.Close and seal the door ready for shipment.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
