| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL932 ZL932 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 58kw | Max.Dump Clearance: | 3200mm |
|---|---|---|---|
| Rated Load: | 1800kg | Bucket Capacity: | 1.0m3 |
| Overall Size (L*W*H): | 5500*1620*2750mm | Operating Weight: | 3500 Kg |
| Engine Model: | Yun Nei 490 Supercharged | Gear Box: | CVT 265 Torque Converter |
| Alex: | S-hub Reductro | Brake: | Air Brake |
| Min. Ground Clearance: | 290 Mm | Wheel Base: | 1490 Mm |
| Dump Reach: | ≤ 650 Mm | Overall Length - With Bucket: | 5300 Mm |
| Overall Width: | 1820 Mm | Overall Height: | 2670 Mm |
| High Light: | Wheeled Hydraulic Front End Loader,Hydraulic Front End Loader Compact,Articulated compact front end loader |
||

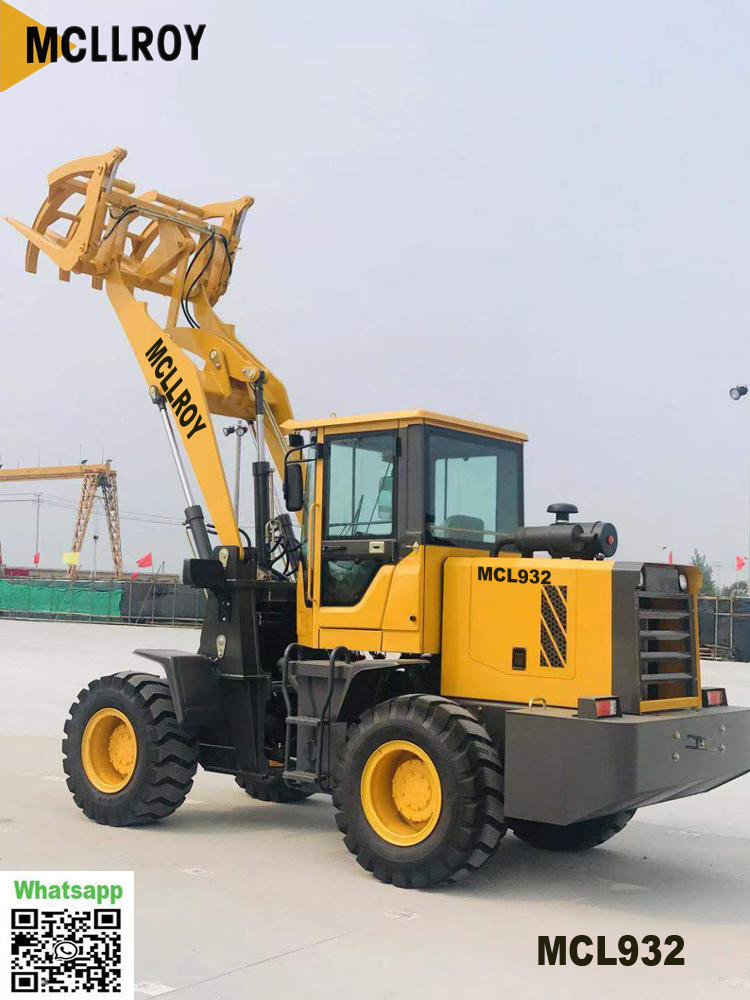

1. Products Description
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification
| MCL 932/ZL 932 | Metric Units |
| Engine Model | Yun Nei 490 Supercharged |
| RPM | 2400 |
| Rated Power | 58 kW |
| Emissions | EU Stage II |
| Operating Weight | 3670 kg |
| Rated Load | 1800 kg |
| Bucket Capacities | 0.6-1.0 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
| Alex | Small hub |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 7 s |
| Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 5300 mm |
| Overall Width | 1820 mm |
| Overall Height | 2670 mm |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
3) Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.
4) Complete safety signs.
5) Large steps on the side of the frame also enhance accessibility.
4. Inspection
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts, track width ,dashboard and electrical system , MCLLROY technicians usually need to inspect the followings(Parts III) :
1) Do the road test for 3 to 6km. If the water temperature is below 100 deg celcius after the road test, that is qualified, otherwise, technician will check where the problem is.
2) And then check if the lubricant oil pressure is normal;
3) Use thermometer to test the temperature of gearbox and hydraulic oil.
4) Touch the air pump by hand;
5) Check for abnormal noise, oil leakage.
6) Do the brake performance test :drive the loader on a 45-degree slope, step on the brake and do not let go, it's okay if the loader does not move.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
