| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL932 ZL932 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Max.Dump Clearance: | 3200mm | Rated Power: | 58kw |
|---|---|---|---|
| Rated Load: | 1800kg | Operating Weight: | 3500 Kg |
| Bucket Length: | 1.9m | Dump Reach: | 1350mm |
| Engine Model: | YN490 Supercharged | Speed/min: | 2400 Rpm |
| Gear Box: | CTV | Alex: | S-hub Reductro |
| Frame: | Articulated | Tire: | 20.5-16 |
| High Light: | Multifunctional 1.9m Wheeled Loading Shovels,1.9m Wheeled Loading Shovels Articulated,Wheeled Loading Shovels Small |
||
1. Products Description

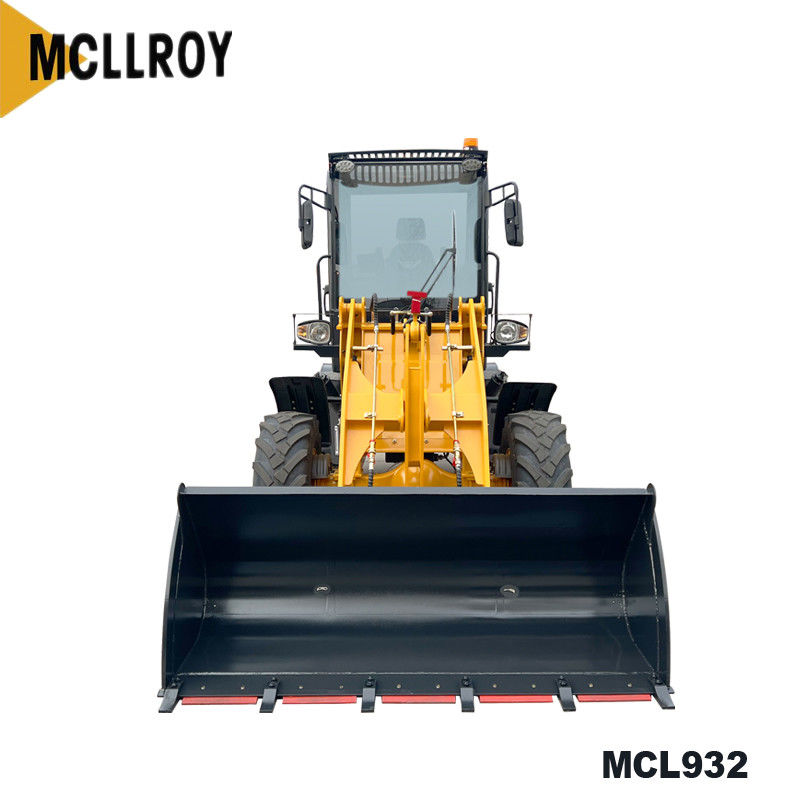

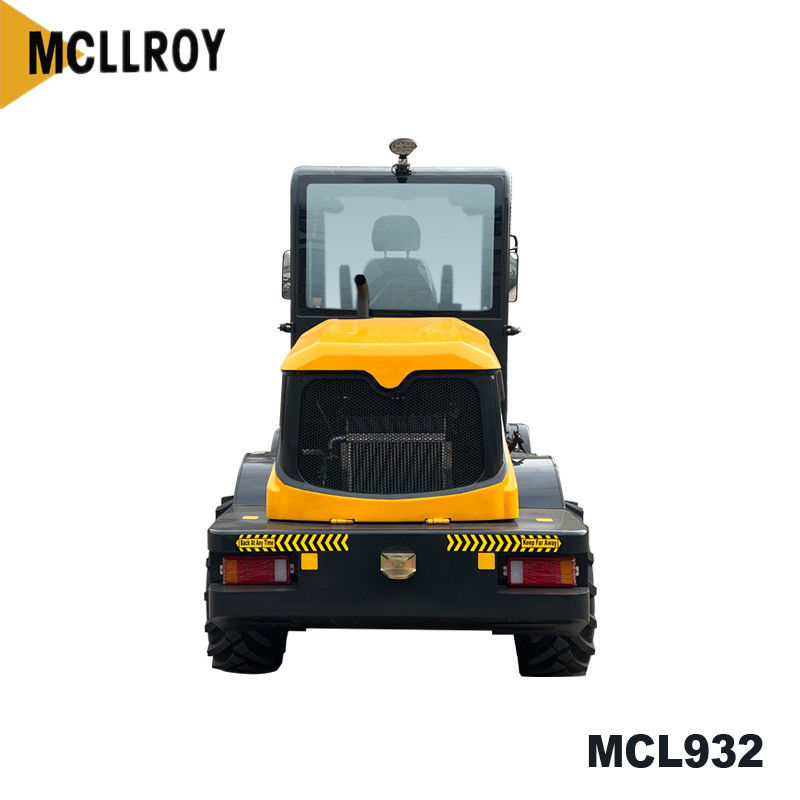

If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification
| Model | MCL932 ZL932 |
||
| Max.Dump Clearance | mm | 3200 | |
| Rated power | kw | 58 | |
| Rated Load | kg | 1800 | |
| Bucket Capacity | m³ | 1.0 | |
| Overall Size (L*W*H) | mm | 5500*1620*2750 | |
| Operating Weight | kg | 3500 | |
| Bucket Length | m | 1.9 | |
| Dump Reach | mm | 1350 | |
| Engine Model | YN490 Supercharged | ||
| Engine speed/min | rpm | 2400 | |
| Gear Box | CVT | ||
| Alex | S-hub reductro | ||
| Frame | Articulated | ||
| Tire | 20.5-16 | ||
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:High Efficiency and energy conservation patented dual-pump confluence technology .
5) Tire:38% Rubber content tire,Wider off-road tire
6) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
7) Cab:
I. Radio.
II. Air conditioner.
III. Central electrical control box for easier servicing.
VI. Hydraulic brake system gas cap,caliper disc brake.
8) Gull-wing Engine Doors make access and daily maintenance easy.
4.Why Choose Us
A solid reputation from customers is based on strong quality.
With 40 years experience of exporting machinery, MCLLROY machines has reached out to
many countries in Southeast Asia, East Europe, West Africa, South-America and established long-term strategic cooperation with local distributors.
Our strict quality control ease the maintenance and lower the spare parts replacement rate
hence less complaint come from clients and users.
We are proud to promise that all of our machines along with their spare parts are brand new. Ten units will be given away if any used machines is found !!!
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
