Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL932 ZL932 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Engine Model: | Yun Nei 490 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 58 KW | Emissions: | EU Stage II |
| Operating Weight: | 3670 Kg | Rated Load: | 1800 Kg |
| Bucket Capacities: | 0.6-1.0 M³ | Max. Travel Speed: | 28 Km/h |
| Gear Box: | CVT 265 Torque Converter | Alex: | Small Hub |
| High Light: | 2 Ton Wheel Loader Articulated,2 Ton Wheel Loader Front,1350mm Front Bucket Loader |
||

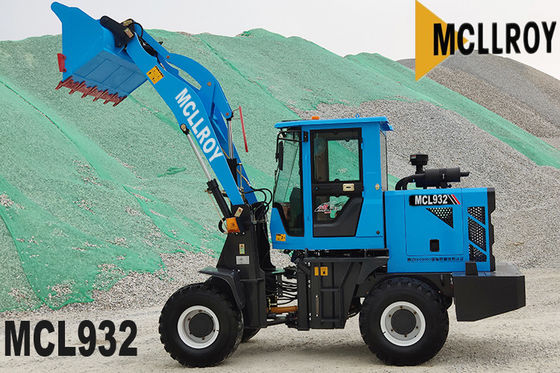

1. Products Description
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification
| MODEL | MCL 932/ZL 932 | Metric Units |
| ENGINE | Engine Model | Yun Nei 490 Supercharged |
| RPM | 2400 | |
| Rated Power | 58 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 3670 kg |
| Rated Load | 1800 kg | |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
|
| Alex | Small hub | |
| Axle Base | 2210 mm | |
| Brake | Disc Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm | |
| Reach at Max.Dump Height | 3200 mm | |
| Dump Reach | ≤ 650 mm | |
| Overall Length - With Bucket | 5300 mm | |
| Overall Width | 1820 mm | |
| Overall Height | 2670 mm |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
3) Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.
4) Complete safety signs.
5) Large steps on the side of the frame also enhance accessibility.
4.Delivery
In addition to stability, we also need to consider as many packs as possible. Since the outbreak of the COVID-19, ocean freight prices have increased significantly, and it is common to see increased costs due to increases in ocean freight rates.
In order to save the buyer's transportation cost, MCLLROY has optimized and improved the size of the loader according to the size of the container. On the premise of reducing customer disassembly procedures as much as possible, install as many as possible.
3 Units 918/926/930/932 can be loaded in a 40HQ container
2 Units 936/940 can be loaded in a 40HQ container
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
