Heavy Connstruction 2 Ton Wheel Loader Automatic Transmission



1. Products Description

we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

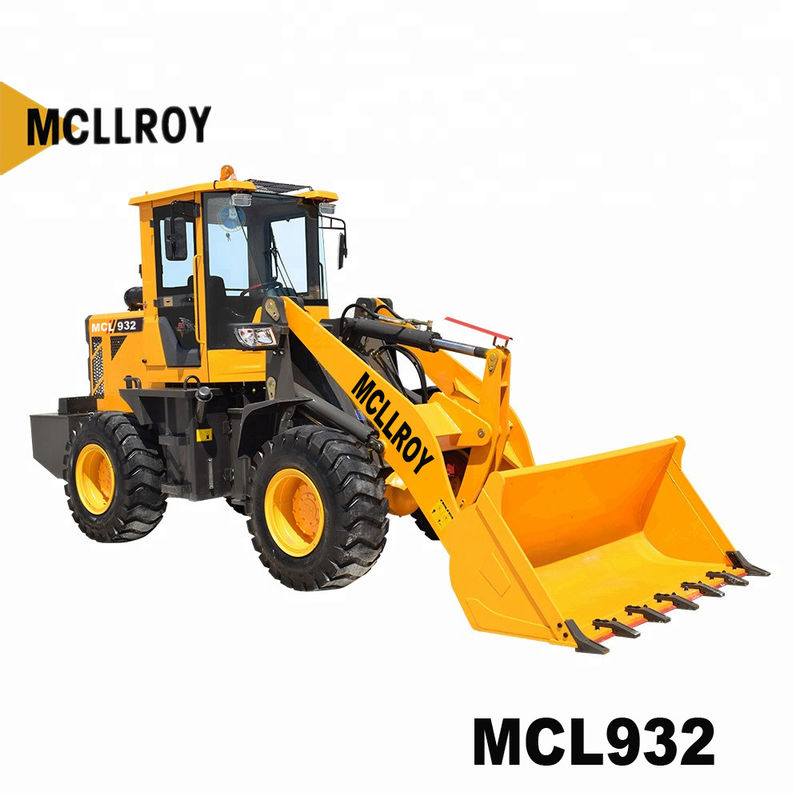

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.



2. Specification

MODEL	MCL 932/ZL 932	Metric Units
ENGINE	Engine Model	Yun Nei 490 Supercharged
	RPM	2400
	Rated Power	58 kW
	Emissions	EU Stage II
WEIGHTS	Operating Weight	3670 kg
	Rated Load	1800 kg
BUCKETS	Bucket Capacities	0.6-1.0 m³
TRANSMISSION	Max. Travel Speed	28 km/h
	Gear Box	CVT 265 torque converter
	Alex	Small hub
	Axle Base	2210 mm
	Brake	Disc Brake



3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.

2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.

3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.

4) Hydraulic system:High Efficiency and energy conservation patented dual-pump confluence technology .

5) Tire:38% Rubber content tire,Wider off-road tire

6) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.

7) Cab:

I. Radio.

II. Air conditioner.

III. Central electrical control box for easier servicing.

VI. Hydraulic brake system gas cap,caliper disc brake.

8) Gull-wing Engine Doors make access and daily maintenance easy.



4.Production lines:

A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection

Steel plate cutting:

The cutting of the steel plate is closely related to the drawing design, workers' technique and cutting equipment.



Normally there are three types of cutting machines, you can see from the pictures here.

Frame cutting is used for iron plates over 40mm thick.

While plasma cutting is for steel plate that in between 20-40mm.

Laser cutting is for steel plate between 8-20mm.



It is great for cutting that requires high precision. For example, cutting steel components for bumper, hood, and driver's cab. The advantages of laser cutting are: low temperature, so the plate is not likely deformed; the disadvantage is that it consumes a lot of power.



When the steel sheet is uneven or the cutting speed is not steady, a melting point or break-point will form; so during the cutting process, workers need to go back and forth to check.









Similar Model:

Cat 903D/906M/907M/908M

XCMG LW156/LW160/LW180/LW186/LW200

Liugong 816C

SDLG LG916 LG918 L918
