Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL932 ZL932 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Engine Power: | 58kw | Speed/min: | 2400 |
|---|---|---|---|
| Moving Type: | Wheel Loader | Dimension(long * Breadth * High): | 5500*1620*2750mm |
| Condition: | New | Dumping Height: | 3200mm |
| Machine Weight: | 3500KG | Type: | Front Loader |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | Color: | Customize |
| Attachments: | Fork,Snow Bucket,Kinds,trencher | Engine Model: | YN490 Supercharged |
| Gear Box: | CVT | Tire: | 20.5-16 |
1. Products Description
In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.
The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.
The flexibility and light operation mainly depends on the hydraulic system of the loader.
The low failure rate depends on quality as well as the after-sales service.

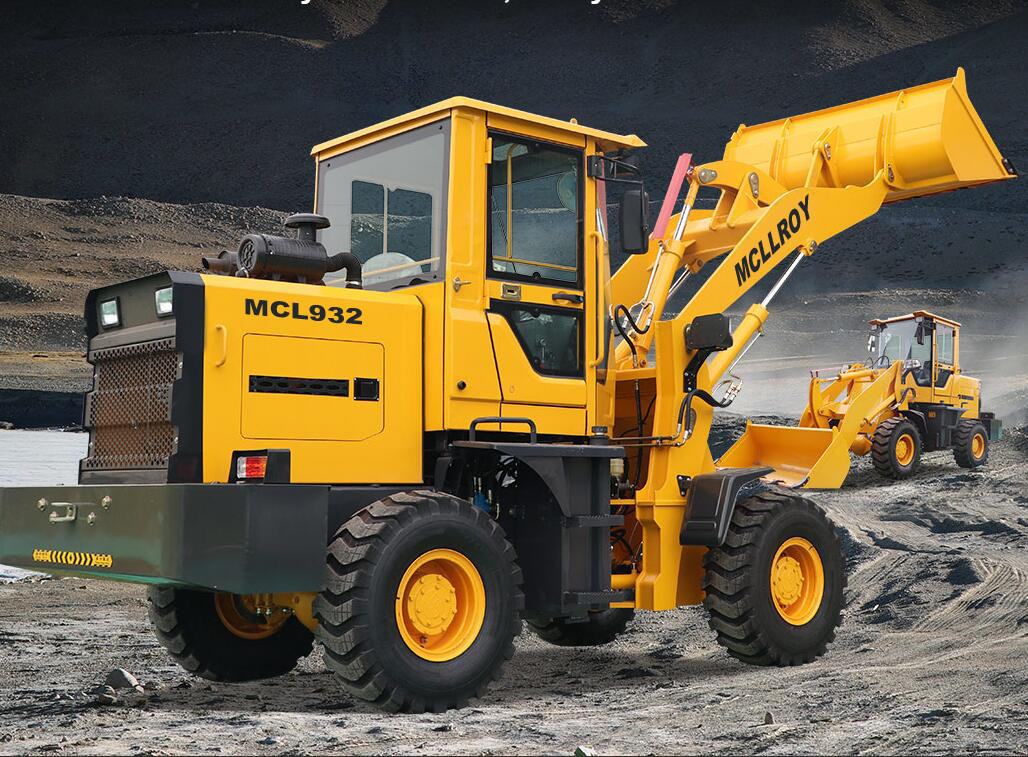

MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.
2. Specification
| Model | MCL932 ZL932 |
MCL936 ZL936 |
||
| Rated Load | kg | 1800 | 2000 | |
| Dipper Bucket Capacity | m³/m | 1.0/1.9m | 1.1/2.0m | |
| Max.Dump Clearance | mm | 3200 | 3500 | |
| Dump Reach | mm | 1350 | 1650 | |
| Overall Size (L*W*H) | mm | 5500*1620*2750 | 6025*2000*3000 | |
| Engine Model | YN490 | YN4100 Supercharged | ||
| Rated power | kw | 58 | 65 | |
| speed/min | rpm | 2400 | 2400 | |
| Gear Box | CVT | 280B Split Torque converter | ||
| Alex | S-hub reductro | M-hub reductro | ||
| Operating Weight | kg | 3300 | 5300 | |
| Articulated | Articulated | Articulated | ||
| Tyre Size | 20.5-16 | 1670-20 | ||
| Joystick included | Mechanical | Mechanical | ||
| Aircon | included | included | ||
| Hydraulic pilot(option) | *** | Without | ||
| running hour meter | running hour meter | running hour meter | ||
| air brake | air brake | air brake | ||
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
Tire:A variety of patterns to adapt to different perorations ,solid tires available.
Frame:Strong hinge joint.
Cab:
Electronic oil level indicator.
n Comfortable seat with safety belt.
Intelligent instrument.
Pilot valve hydraulic operation.
4.Attachment

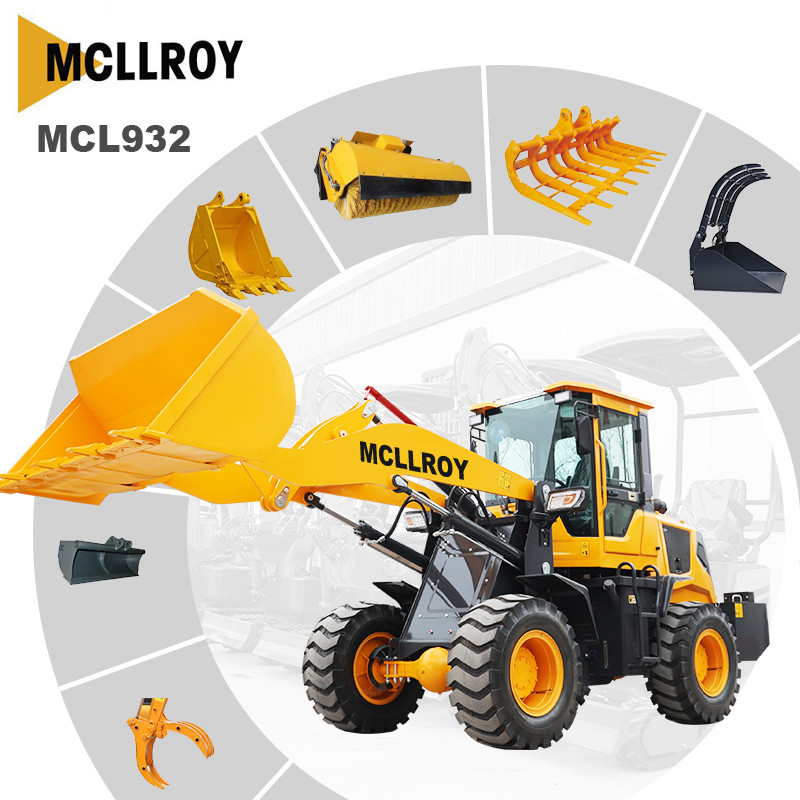

MCLLROY compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
