Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE,ISO9001 |
Model Number: | MTL30 |
Minimum Order Quantity: | 1 Unit |
Price: | $ 15000-25000 /Unit |
Packaging Details: | Nude,Fasten Packing ,2 Units loaded in one 40HQ |
Delivery Time: | 35 DAY |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 SETS PER MONTH |
Engine Power: | 85 Kw - 92 Kw | Bucket Capacity: | 1.5 M³ |
---|---|---|---|
Bucket Rated Load: | 3000 Kg | Max. Lifting Height: | 5800 Mm |
Max. Bucket Hinge Height: | 5300 Mm | Wheel Base: | 2430 Mm |
Axles: | Large Size Hub Reduction | Overall Size: | 6800*2960*2300 Mm |
Operating Weight: | 6200 Kg | Tires Model: | 17.5-25 |
Highlight: | Front End Telescopic Wheel Loader,3 Ton Telescopic Wheel Loader |
1. Production Description:

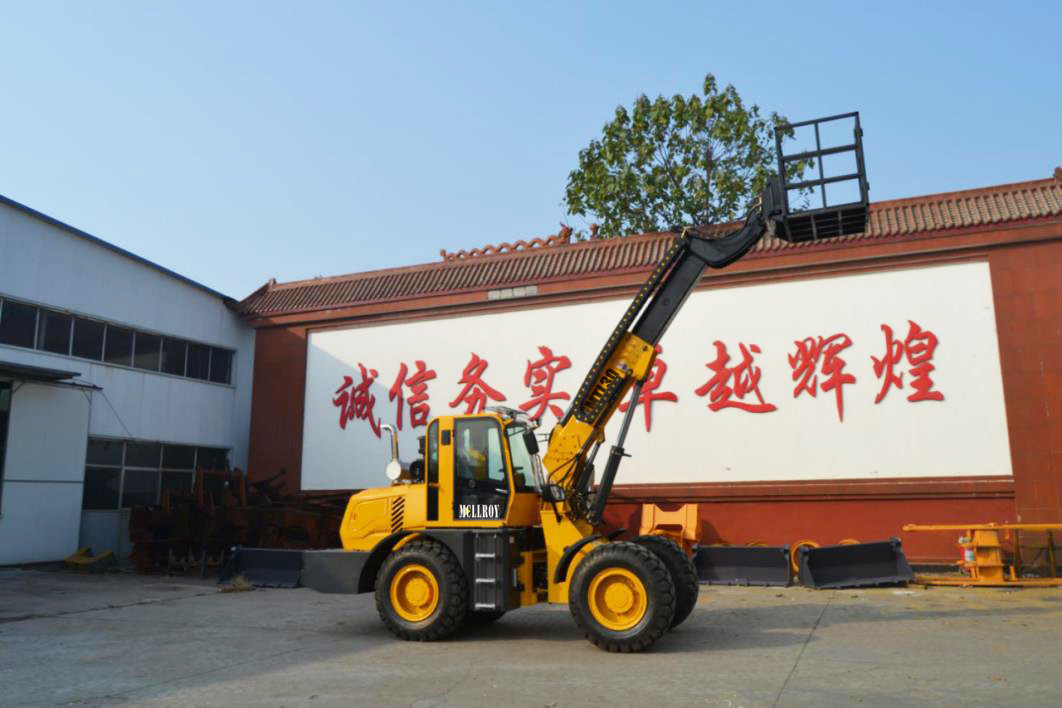

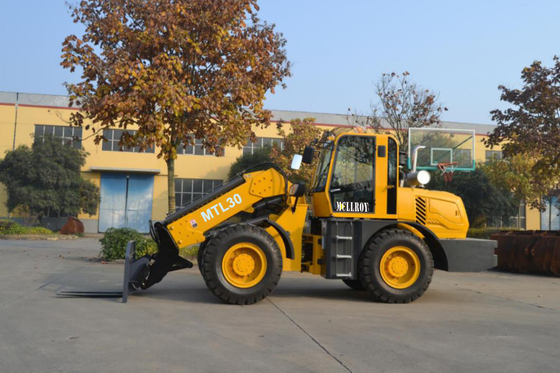

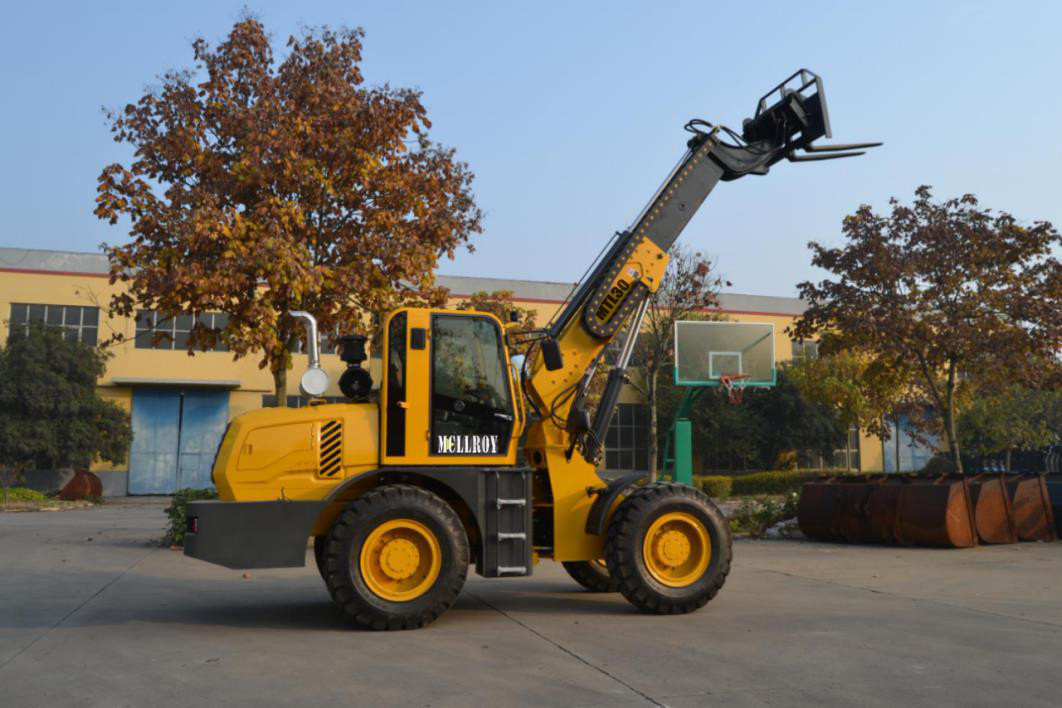

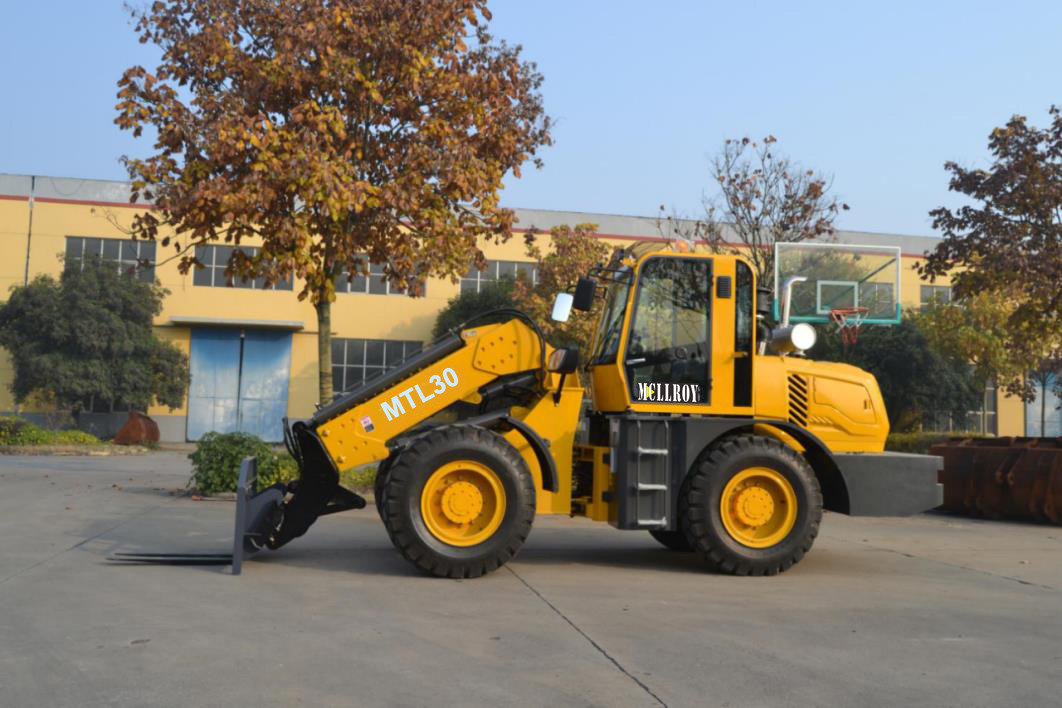

MCLLROY’s range of agricultural articulated telescopic handlers is designed to provide supreme productivity and versatility on the farm. put simply, our design centers around a highly maneuverable articulated machine with plenty of power and capacity.
The MTL30 Agri is built with one thing in mind:productivity, and lots of it. As ever with MCLLROY,innovation is at the very heart of the machine,with features like Torquelock, servo controls, Smooth Ride and clever hydraulics.The new MTL30 is now optional for Tier 4 Final compliant and with a reaching capability of 5800mm and lifting capacity of 3000kg it’s more than a match for a tractor loader or wheeled loader.
It has the versatility of a wheeled loader with the reach and lift characteristics of a telehandler all in one package, so if you’re looking for all the familiarity of a central seating position combined with superb reliability, durability, maneuverability, climbing power and great versatility, this is a perfect machine for your materials handling application.
2. Advantages and Details:
1) STRENGTH YOU CAN RELY ON
The MTL30 has been designed and built from scratch to deliver the strength and power you’re looking for in an articulated machine. No compromise.
1) We stress test across a lifetime of cycles to emulate the most arduous digging and dump situations. It’s your guarantee of performance over thousands of hours.
2) To prove how good our engines are, we’ve tested them for 100,000 hours in 30 different machines across the toughest applications and environments.
3) At MCLLROY, we make our own hydraulic cylinders, cabs, axles, transmissions and engines – all designed to work in perfect harmony for optimum reliability
2) THE POWER TO PERFORM
The class leader when it comes to lift capacity and tearout force, combined with 5800mm lift height, proper forward reach and the superb MCLLROY eco-max engine. There’s nothing the MTL30 can’t handle.
Our unique oscillating center pivot point makes the most of traction by maintaining even weight distribution over each of the four wheels. It also gives extra stability and ride comfort.
3) IN CONTROL, IN COMFORT
The MTL30 makes life easier.
First of all, it’s easy to operate thanks to ergonomic, intuitive controls and intelligent features.
Secondly, it gives a comfortable environment to work in, making operators more productive.
4) SERVICING MADE EASY.
The MTL30 is low maintenance and easy to service, which means less downtime, and more working and earning time. It’s also designed for consummate safety, protecting both you and your investment.
3. Specifications:
1.0 Engine Details | |||
(1) Model: YUCHAI Engine | |||
(2) Engine Type:In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine | |||
(3) Rated Power:85KW | |||
(4) Rated Speed:2400 r/p.min (rpm) | |||
(5)Optional Engine:
|
|||
2.0 Transmission System | |||
Hydraulic converter + gearbox+drive shaft + hub reduction axles | |||
|
|||
(1) Bucket Capacity: 1.5m³ | |||
(2) Bucket width: 2300mm | |||
(3) Bucket type:Heavy-duty bolt on teeth | |||
(4) Rated Load: 3000kg including attachment or bucket | |||
|
|||
(1) Overall Length: 6860mm | |||
(2) Overall Height:2860mm | |||
(3) Overall Width: 2300mm | |||
(4) Max. lifting Height:5800mm | |||
(5) Lifting to bucket hinge pin Height:5300mm | |||
|
|||
(1) Steering System: Articulated Frame with hydraulic power steering | |||
(2) Min Turning Radius: 5800mm | |||
(3) Driving System: Hydraulic converter, four wheel drive | |||
(4) European quick coupling system | |||
(5) Joystick control | |||
|
|||
(1) Service Brake:Safer air assist disc brake braking system | |||
(2) Parking Brake:Hand operated(Disc brakes) | |||
|
|||
Model:17.5-25 | |||
|
|||
|
|||
|
Parking brake | Yes | Boom damper | Yes |
Standard bucket | Yes | Adjustable dashboard | Yes |
Reverse image | Yes | Four way valve | Yes |
LED work lights | Yes | Hydraulic pilot joystick | Yes |
Sliding window | Yes | Function of leveling automatic | Yes |
Yes | Adjustable seat | Yes | |
Rops/Fops cabin | Yes | Air conditioner | Extra usd |
Quick hitch | Yes | 5th hydraulic valve | Extra usd |
High power heater | Yes | Walk/Work/Quick-coupler electric control joystick | Extra usd |
Warning lamp | Yes | Electric switch control floating function | Extad usd |
4. Muiti-function attachment:
MCLLROY's articulated steering system features a user-friendly built-in sideshift capability, making it perfect for precise placement of bales and effortless attachment changes.
We offer a range of versatile attachments to accommodate diverse application environments. Furthermore, our machines can be customized according to the specific requirements and preferences of our customers.
5. Other Conditions:
1. Packaging type: nude packing in container, two sets load in one 40HQ container, one set is same.
2. Color: Red, Yellow, green, blue or customized
3. Warranty:1 year.
