| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL926 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Yun Nei 490 | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 42 KW | Emissions: | EU Stage II |
| Operating Weight: | 3340 Kg | Rated Load: | 1500 Kg |
| Bucket Capacities: | 0.6-1.0 M³ | Max. Travel Speed: | 28 Km/h |
| Gear Box: | Mechanical Transmission(3F+2R) | Alex: | Isuzu |
| Axle Base: | 2210 Mm | Brake: | Disc Brake |
| Hydraulic Cycle Time - Lift: | ≤ 7 S | Min. Ground Clearance: | 340 Mm |
| Wheel Base: | 1400 Mm | Reach At Max.Dump Height: | 3200 Mm |
| Dump Reach: | ≤ 650 Mm | Overall Length - With Bucket: | 5340 Mm |
| Overall Width: | 1820 Mm | Overall Height: | 2670 Mm |
| Tyre Size: | 20.5-16 | Joystick: | Mechanical |
| Min. Turning Radius: | ≤ 6800 Mm | ||
| High Light: | Articulating Transmission Front End Wheel Loader,Compact Front End Wheel Loader |
||

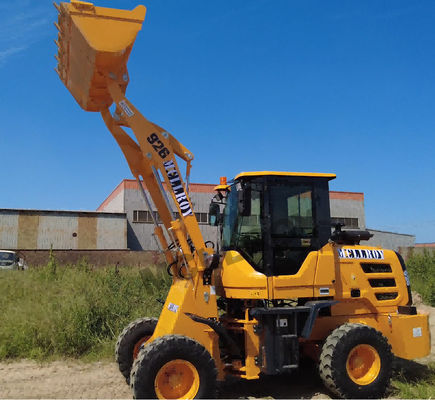

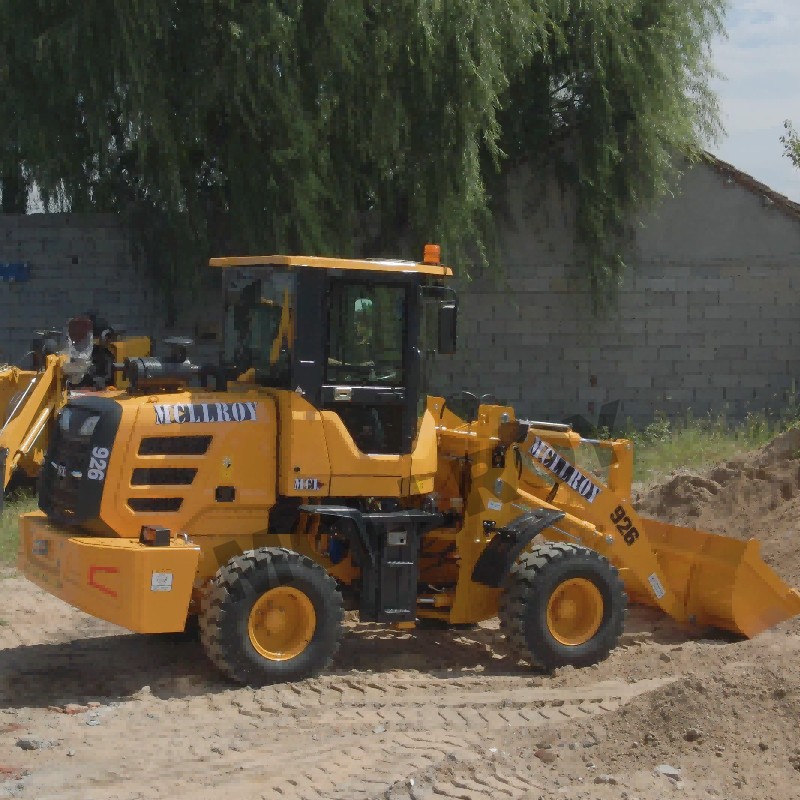

1. Products Description of MCLLROY Wheel Loader
In the construction industry, it is essential that equipment is capable of efficiently handling heavy-duty workloads. For instance, in the case of a loader, it is crucial that the bucket has a high capacity for shoveling material, while simultaneously ensuring that the loader remains stable during operation. Controls should be user-friendly, flexible, and easy to use, and equipment must have a low malfunction rate.
The MCLLROY Wheel Loader is an exceptionally crafted front-wheel loader, which comes with a single bucket, articulated structure, and hydraulic unloading capabilities. The machine has been meticulously designed and developed in accordance with the specific requirements and needs of users while also factoring in reference models that incorporate advanced structural features and technologies from both domestic and international markets.
2.Specification
| MCL 926 | |
| Engine Model | Yun Nei 490 |
| RPM | 2400 |
| Rated Power | 42 kW |
| Emissions | EU Stage II |
| Operating Weight | 3340 kg |
| Rated Load | 1500 kg |
| Bucket Capacities | 0.6-1.0 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | Mechanical Transmission(3F+2R) |
| Alex | Isuzu |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 7 s |
| Min. Ground Clearance | 340 mm |
| Wheel Base | 1400 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 5340 mm |
| Overall Width | 1820 mm |
| Overall Height | 2670 mm |
| Tyre Size | 20.5-16 |
| Joystick | Mechanical |
| Min. turning radius | ≤ 6800 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) The external distribution valve and removable fuel tank allow for easy servicing and maintenance.
2) The buckets comply with construction standards and are suitable for heavy-duty work.
3) The upgraded side flip hood and the crimped model's counterweight lend a more appealing appearance.
4) The tiger head base design reinforces the dynamic arm, making it more resistant to force.
4.Production lines of MCLLROY Wheel Loader
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Moreover, the cutting equipment needs to be properly maintained to ensure the accuracy of the cut. The cutting blades or nozzles should be kept sharp to ensure smooth cutting and prevent damage to the plate.
The cutting process also generates a lot of heat and smoke, which can be hazardous to workers. Adequate ventilation and safety measures should be in place to protect workers from harmful fumes and particles.
In addition, the waste generated from the cutting process should be properly disposed of to avoid environmental damage. The scrap steel can be recycled to reduce waste and promote sustainability.
Overall, steel plate cutting is a crucial process in the manufacturing industry. Proper techniques and equipment are essential to ensure high-quality and precise cuts. Safety measures should also be in place to protect workers and the environment.
