| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL926 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Engine Model: | YN490 | Engine Brand: | Yunnei |
|---|---|---|---|
| Rated Load: | 1500 KG | Bucket Length: | 1.9 M |
| Engine Power: | 42 Kw | Dumping Height: | 3200 Mm |
| Max. Travel Speed: | 28 Km/h | Bucket Capacities: | 0.6-1.0 M³ |
| Operating Weight: | 3340 Kg | Emissions: | EU Stage II |
| Gear Box: | Mechanical Transmission(3F+2R) | Alex: | Isuzu |
| Axle Base: | 2210 Mm | Brake: | Disc Brake |
| Hydraulic Cycle Time - Lift: | ≤ 7 S | Min. Ground Clearance: | 340 Mm |
| Wheel Base: | 1400 Mm | Reach At Max.Dump Height: | 3200 Mm |
| Dump Reach: | ≤ 650 Mm | Overall Length - With Bucket: | 5340 Mm |
| Overall Width: | 1820 Mm | Overall Height: | 2670 Mm |
| Highlight: | Heavy Duty Wheel Loader Machine,1500KG Load Wheel Loader Machine |
||

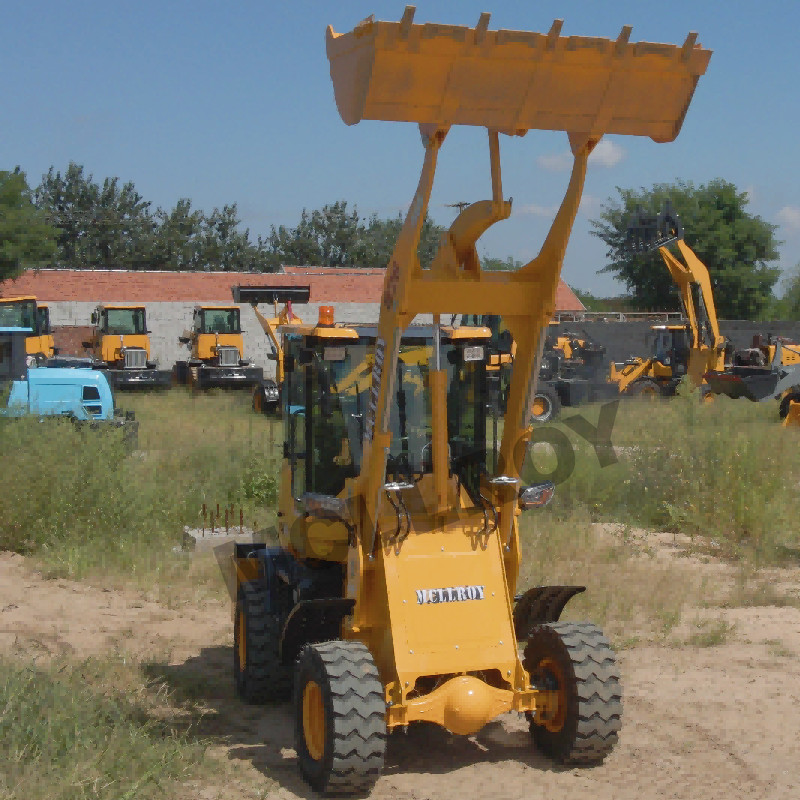

1. Products Description of MCLLROY Wheel Loader
The MCLLROY wheel loader has become immensely popular in the fields of construction, agriculture, and gardening, owing to its superior quality, efficiency, and productivity. Its powerful engine and durable chassis allow it to tackle even the most challenging muddy terrain, while its agile turning capabilities make it ideal for navigating tight spaces. Moreover, the loader's exceptional unloading height makes it a valuable asset for loading tasks.
Regarding the axle of this loader, we prioritize the use of cast steel small axle housing over the market options like iron or Isuzu axles. The axles play a critical role in the loader's overall performance and stability, particularly when subjected to severe working conditions that generate substantial internal forces. A high-quality axle ensures that operators can operate the loader safely and confidently, leading to maximum productivity.
2. Specification of MCLLROY Wheel Loader
| MCL 926 | |
| Engine Model | Yun Nei 490 |
| RPM | 2400 |
| Rated Power | 42 kW |
| Emissions | EU Stage II |
| Operating Weight | 3340 kg |
| Rated Load | 1500 kg |
| Bucket Capacities | 0.6-1.0 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | Mechanical Transmission(3F+2R) |
| Alex | Isuzu |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 7 s |
| Min. Ground Clearance | 340 mm |
| Wheel Base | 1400 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 5340 mm |
| Overall Width | 1820 mm |
| Overall Height | 2670 mm |
| Tyre Size | 20.5-16 |
| Joystick | Mechanical |
| Min. turning radius | ≤ 6800 mm |
| Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
3. Details and Advantages of MCLLROY Wheel Loader
3) The horizontal frame structure has been ingeniously crafted to provide optimal protection for the gearbox and steering cylinder.
4) Boasting a high chassis and a minimum ground clearance of 29 cm, the loader is primed for optimal performance in mountainous, agricultural, and mining settings.
5) The hydraulic system is both reliable and well-established, featuring triple-wire hydraulic hoses to facilitate short cycle times and streamlined operation.
6) The anti-rollover cab is engineered with safety as a top priority. The high-pressure tempered glass construction ensures that, even in the unlikely event of glass breakage, individuals are less likely to suffer injury.
7) The adjustable seat has been ergonomically designed to minimize driver fatigue.
8) Featuring a user-friendly dashboard and an integrated hydraulic operating lever design, the loader offers effortless handling and uncomplicated operation.
4.Production lines of MCLLROY Wheel Loader
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory has arranged seven steps for the assembly process. With over a thousand parts in a loader, I will now elaborate on the assembly of the major components.
During the fifth step of assembly, the following tasks are completed: The cab floor is installed onto the loader, and the hydraulic oil pipe is connected to the radiator. Then, the oil tanks, steering oil tank, and pipeline are installed, followed by the driver's cab bumper. To complete the electrical system, the battery is connected, and diesel and hydraulic oil are added. Finally, the engine hood is installed, along with the air filter, diesel filter, silencer, engine throttle cable, flame-out cable, and handbrake cable.
At this stage, the hydraulic oil pipeline is connected, and the necessary screws and clamps are tightened. It is crucial to ensure that there are no oil leaks after the pipeline installation. Our workers make markings to remind themselves of the installed pipe to prevent subsequent malicious reports or after-sales disputes.
Here, you can see the marking made by our worker after connecting the pipeline. In case someone deliberately loosens the screw in the following step, resulting in oil leakage from the pipes, this mark will become misaligned. During the after-sales process, we may encounter customers who unscrew the pipeline screws without notice and complain about product problems and tubing leaks. At this point, our marking system can address the issue. The marking line will be misaligned due to the screw being loosened twice.
This installation stage is more complicated, so we have allocated four workers to complete it.
