Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL926 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Engine Model: | YN490 | Engine Brand: | Yunnei |
|---|---|---|---|
| Rated Load: | 1500 KG | Bucket Length: | 1.9 M |
| Engine Power: | 42 Kw | Dumping Height: | 3200 Mm |
| Max. Travel Speed: | 28 Km/h | Bucket Capacities: | 0.6-1.0 M³ |
| Operating Weight: | 3340 Kg | Emissions: | EU Stage II |
| Gear Box: | Mechanical Transmission(3F+2R) | Alex: | Isuzu |
| Axle Base: | 2210 Mm | Brake: | Disc Brake |
| Hydraulic Cycle Time - Lift: | ≤ 7 S | Min. Ground Clearance: | 340 Mm |
| Wheel Base: | 1400 Mm | Reach At Max.Dump Height: | 3200 Mm |
| Dump Reach: | ≤ 650 Mm | Overall Length - With Bucket: | 5340 Mm |
| Highlight: | Mechanical Transmission Wheel Loader Machine,28 km/h Wheel Loader Machine |
||

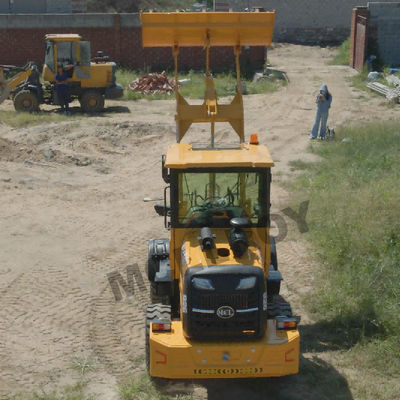

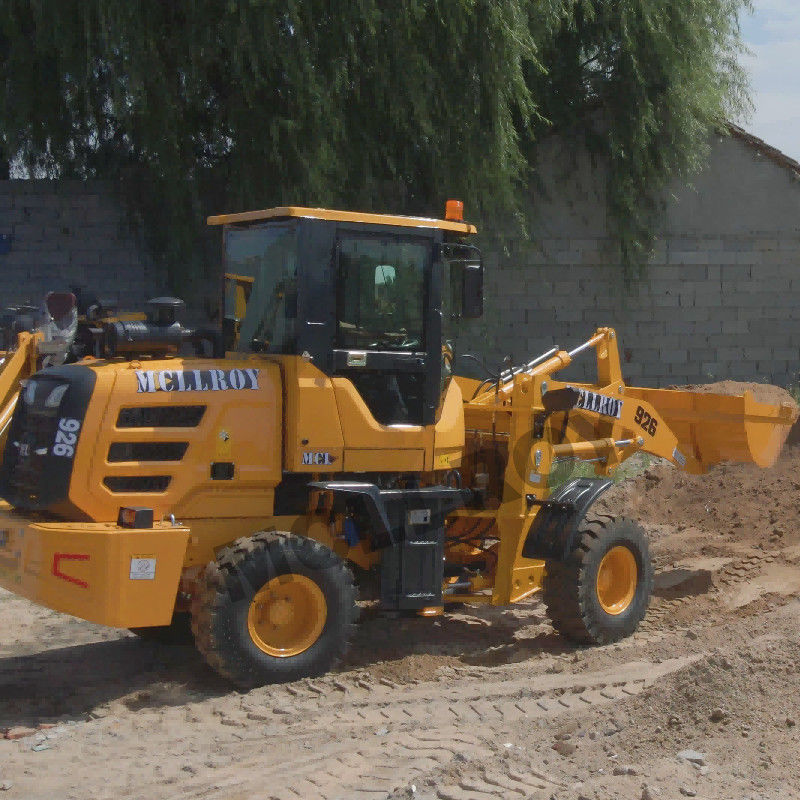

1. Products Description of MCLLROY Wheel Loader
The MCLLROY wheel loader has gained immense popularity in the fields of construction, agriculture, and gardening due to its superior quality, efficiency, and productivity. Its robust power and chassis make it adept at traversing muddy terrain, while its nimble turning capabilities enable it to navigate tight spaces with ease. Additionally, its remarkable unloading height makes it a valuable asset for loading tasks.
When it comes to the axle of this loader, we prioritize the use of cast steel small axle housing over the iron axle or Isuzu axle options available in the market. The axles play a crucial role in the loader's overall performance and stability, particularly when subjected to harsh working conditions that generate significant internal forces. A top-notch axle ensures that operators can operate the loader safely and confidently, allowing for maximum productivity.
2. Specification of MCLLROY Wheel Loader
| MODEL | MCL 926 | |
| ENGINE | Engine Model | Yun Nei 490 |
| RPM | 2400 | |
| Rated Power | 42 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 3340 kg |
| Rated Load | 1500 kg | |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | Mechanical Transmission(3F+2R) | |
| Alex | Isuzu | |
| Axle Base | 2210 mm | |
| Brake | Disc Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 340 mm |
| Wheel Base | 1400 mm | |
| Reach at Max.Dump Height | 3200 mm | |
| Dump Reach | ≤ 650 mm | |
| Overall Length - With Bucket | 5340 mm | |
| Overall Width | 1820 mm | |
| Overall Height | 2670 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 20.5-16 |
| Joystick | Mechanical | |
| Min. turning radius | ≤ 6800 mm | |
3. Details and Advantages of MCLLROY Wheel Loader
1) Utilizing the acclaimed Yunnei China II engine, renowned for its remarkable efficiency and longevity, which has made it a preferred option for agricultural and small-scale construction projects.
2)Equipped with high-speed Isuzu axles (small hub reduction axle also available), ensuring swift navigation.
3) The horizontal frame structure has been ingeniously crafted to provide optimal protection for the gearbox and steering cylinder.
4) Boasting a high chassis and a minimum ground clearance of 29 cm, the loader is primed for optimal performance in mountainous, agricultural, and mining settings.
5) The hydraulic system is both reliable and well-established, featuring triple-wire hydraulic hoses to facilitate short cycle times and streamlined operation.
6) The anti-rollover cab is engineered with safety as a top priority. The high-pressure tempered glass construction ensures that, even in the unlikely event of glass breakage, individuals are less likely to suffer injury.
7) The adjustable seat has been ergonomically designed to minimize driver fatigue.
8) Featuring a user-friendly dashboard and an integrated hydraulic operating lever design, the loader offers effortless handling and uncomplicated operation.
9) The dual high and low-speed gearboxes and handles permit swift switching between work and travel modes.
4.FAQ of MCLLROY Wheel Loader
4.Attachment of MCLLROY Wheel Loader
With these attachments, MCLLROY wheel loader can be used for a wide range of applications such as construction, landscaping, snow removal, waste management, and more. The pallet fork attachment is perfect for lifting and moving heavy loads, while the snow bucket is ideal for clearing snow and ice from driveways, sidewalks, and parking lots.
The high dump bucket attachment is useful for dumping materials at higher elevations, and the sweeper attachment is perfect for cleaning streets, parking lots, and other outdoor areas. The 4in1 bucket is versatile and can be used for digging, grading, and carrying materials.
The quick-hitch attachment allows for fast and easy attachment changes, improving the machine's productivity and efficiency. These attachments not only make the most of the machine's capabilities but also increase economic benefits by reducing the need for additional equipment and increasing utilization rates.
Overall, MCLLROY wheel loader's attachments provide a cost-effective and efficient solution for various work needs, making it an essential machine for any construction or landscaping project.
