Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE,ISO9001 |
Model Number: | MCL926 |
Minimum Order Quantity: | 1 Set |
Price: | $ 4000-6000 /Unit |
Packaging Details: | Nude ,3 Sets Fasten Packing in 1 40HQ |
Delivery Time: | 5-8 working days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
Supply Ability: | 100 sets / month |
Engine Model: | YN490 | Engine Brand: | Yunnei |
---|---|---|---|
Rated Load: | 1500 KG | Bucket Length: | 1.9 M |
Engine Power: | 42 Kw | Dumping Height: | 3200 Mm |
Max. Travel Speed: | 28 Km/h | Bucket Capacities: | 0.6-1.0 M³ |
Operating Weight: | 3340 Kg | Emissions: | EU Stage II |
Gear Box: | Mechanical Transmission(3F+2R) | Alex: | Isuzu |
Axle Base: | 2210 Mm | Brake: | Disc Brake |

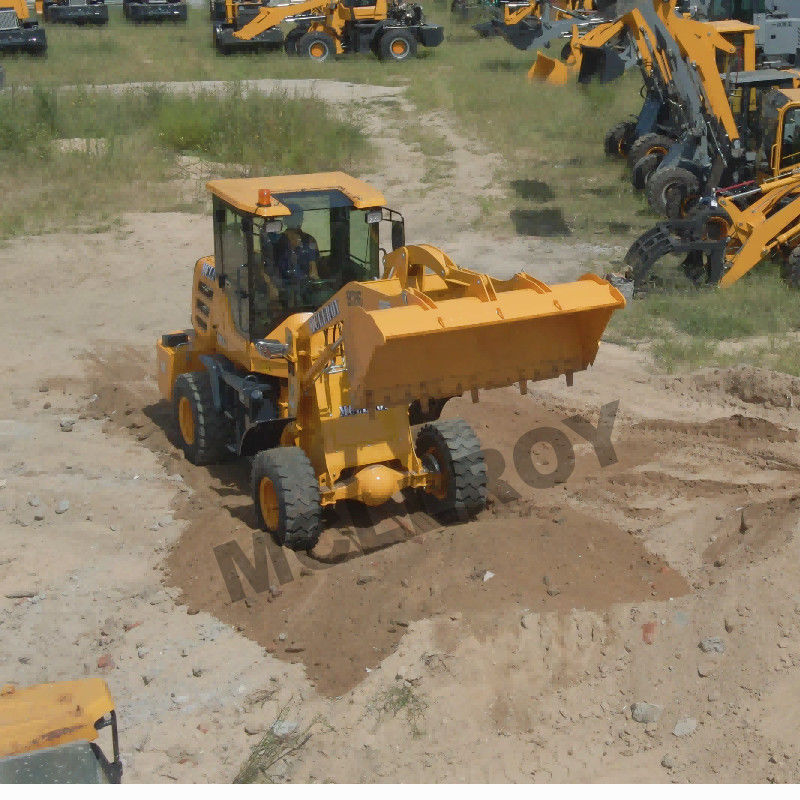

1. Products Description of MCLLROY Wheel Loader
In the domain of construction equipment, the four pivotal factors to be considered are: cost, caliber, functionality, and post-purchase support.
The measure of shovel material and the stability of the loader are contingent upon the synchronicity of the loader frame. The loader's pliability and effortless operation primarily stem from its hydraulic system. A low incidence of malfunctions is commensurate with the quality of the equipment and the caliber of after-sales maintenance.
MCLLROY Wheel Loaders find widespread usage in the construction, municipal engineering, urban and rural landscapes, as well as in lime, sand, cement factories, mines and various other enterprises, institutions, and departments. Its distinct proficiency lies in narrow space loading operations of stones, sands, and other construction materials.
2. Specification of MCLLROY Wheel Loader
MCL 926 | |
Engine Model | Yun Nei 490 |
RPM | 2400 |
Rated Power | 42 kW |
Emissions | EU Stage II |
Operating Weight | 3340 kg |
Rated Load | 1500 kg |
Bucket Capacities | 0.6-1.0 m³ |
Max. Travel Speed | 28 km/h |
Gear Box | Mechanical Transmission(3F+2R) |
Alex | Isuzu |
Axle Base | 2210 mm |
Brake | Disc Brake |
Hydraulic Cycle time - lift | ≤ 7 s |
Min. Ground Clearance | 340 mm |
Wheel Base | 1400 mm |
Reach at Max.Dump Height | 3200 mm |
Dump Reach | ≤ 650 mm |
Overall Length - With Bucket | 5340 mm |
Overall Width | 1820 mm |
Overall Height | 2670 mm |
3. Details and Advantages of MCLLROY Wheel Loader
4) Boasting a high chassis and a minimum ground clearance of 29 cm, the loader is primed for optimal performance in mountainous, agricultural, and mining settings.
5) The hydraulic system is both reliable and well-established, featuring triple-wire hydraulic hoses to facilitate short cycle times and streamlined operation.
6) The anti-rollover cab is engineered with safety as a top priority. The high-pressure tempered glass construction ensures that, even in the unlikely event of glass breakage, individuals are less likely to suffer injury.
7) The adjustable seat has been ergonomically designed to minimize driver fatigue.
8) Featuring a user-friendly dashboard and an integrated hydraulic operating lever design, the loader offers effortless handling and uncomplicated operation.
4.Certification of MCLLROY Wheel Loader
Product quality serves as the bedrock of customer satisfaction and the sustained success of a company. At MCLLROY, we comprehend this basic tenet, which is why we have obtained both the ISO9001:2000 international quality control system and the ISO 9001:2015 quality management system certification.
Our acquisition of the CE certificate, which applies to a diverse range of our product portfolio, from wheel loaders and backhoe loaders to excavators and mixer trucks, fills us with both a sense of pride and humility. This certification stands as an indisputable testament to our unwavering devotion to providing our distinguished clients with nothing short of the finest-quality products.
