Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE,ISO9001 |
Model Number: | MCL926 |
Minimum Order Quantity: | 1 Set |
Price: | $ 4000-6000 /Unit |
Packaging Details: | Nude ,3 Sets Fasten Packing in 1 40HQ |
Delivery Time: | 5-8 working days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
Supply Ability: | 100 sets / month |
Engine Model: | YN490 | Engine Brand: | Yunnei |
---|---|---|---|
Rated Load: | 1500 KG | Bucket Length: | 1.9 M |
Engine Power: | 42 Kw | Dumping Height: | 3200 Mm |
Max. Travel Speed: | 28 Km/h | Bucket Capacities: | 0.6-1.0 M³ |

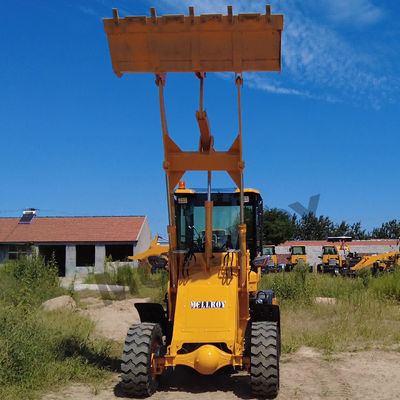

1. Products Description of MCLLROY Wheel Loader
When it comes to construction machinery, the primary requirement is that it should be capable of handling heavy workloads efficiently. Take the loader, for instance. The bucket should have the ability to shovel as much material as possible, while the loader itself should be stable during operation. The controls should be easy to use and flexible, and the malfunction rate should be minimal.
MCLLROY Wheel Loader is a front-wheel loader that comes equipped with a single bucket, an articulated structure, and hydraulic unloading capabilities. It has been meticulously developed and designed in accordance with the needs of users, with reference to models that incorporate advanced structural features and technologies from both domestic and international markets.
2. Specification of MCLLROY Wheel Loader
MODEL | MCL 926 | |
ENGINE | Engine Model | Yun Nei 490 |
RPM | 2400 | |
Rated Power | 42 kW | |
Emissions | EU Stage II | |
WEIGHTS | Operating Weight | 3340 kg |
Rated Load | 1500 kg | |
BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
TRANSMISSION | Max. Travel Speed | 28 km/h |
Gear Box | Mechanical Transmission(3F+2R) | |
Alex | Isuzu | |
Axle Base | 2210 mm | |
Brake | Disc Brake |
3. Details and Advantages of MCLLROY Wheel Loader
The anti-rollover cab is engineered with safety as a top priority. The high-pressure tempered glass construction ensures that, even in the unlikely event of glass breakage, individuals are less likely to suffer injury.
7) The adjustable seat has been ergonomically designed to minimize driver fatigue.
8) Featuring a user-friendly dashboard and an integrated hydraulic operating lever design, the loader offers effortless handling and uncomplicated operation.
9) The dual high and low-speed gearboxes and handles permit swift switching between work and travel modes.
10) The visual skylight design streamlines overhead shoveling and unloading operations.
4.Production lines of MCLLROY Wheel Loader
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory has arranged seven steps for the assembly process, and with over a thousand parts in a loader, I will now elaborate on the assembly of the major components.
During the sixth step of assembly, the following tasks are completed: The cylinder liner is installed for the boom, tilt arm, and pull rod, and the lifting and tilting cylinder is also installed. Then, the pull rod and boom are installed, and the working part is connected to the loader body using a crane. Finally, the pipeline is connected. This step involves many sleeves and pins. The connection between the boom, tilt arm, and cylinder must rely on the sleeve and pin, and the connection part should not be too loose or too tight. So, what is suitable? The diameter of the arm hole in the boom should be 10 centimeters larger than the outer diameter of the sleeve.
Our workers must exert a lot of effort at this stage. When they hammer the pin with a rubber hammer, they should take care not to damage the parts and welded joints. Additionally, we will also put a circle of flower cap bolts outside the pin of the middle arm to reinforce the pin. This is a unique design of our product. Do you remember the articulated bearing? This flower cap is also used in articulated bearings. It is mainly used in places with high stress and that are easy to wear.
As this installation stage is complex, we have assigned 2-3 workers to complete it.
