Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE/ISO |
Model Number: | MCL932 |
Minimum Order Quantity: | 1 Unit |
Price: | $4000-6000/Unit |
Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
Delivery Time: | 5-8 days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
Supply Ability: | 100 Units / Month |
Engine Model: | Yun Nei 490 Supercharged | RPM: | 2400 |
---|---|---|---|
Rated Power: | 58 KW | Emissions: | EU Stage II |
Operating Weight: | 3670 Kg | Rated Load: | 1800 Kg |
Bucket Capacities: | 0.6-1.0 M³ | Max. Travel Speed: | 28 Km/h |
Gear Box: | CVT 265 Torque Converter | Alex: | Small Hub |
Axle Base: | 2210 Mm | Brake: | Disc Brake |
Hydraulic Cycle Time - Lift: | ≤ 7 S | Min. Ground Clearance: | 290 Mm |
Wheel Base: | 1490 Mm | Reach At Max.Dump Height: | 3200 Mm |
Dump Reach: | ≤ 650 Mm | Overall Length - With Bucket: | 5300 Mm |
Overall Width: | 1820 Mm | Overall Height: | 2670 Mm |
Tyre Size: | 20.5-16 | Joystick: | Mechanical |
1. Products Description of MCLLROY Wheel Loader
When it comes to construction machinery, the primary requirement is that it should be capable of handling heavy workloads efficiently. Take the loader, for instance. The bucket should have the ability to shovel as much material as possible, while the loader itself should be stable during operation. The controls should be easy to use and flexible, and the malfunction rate should be minimal.

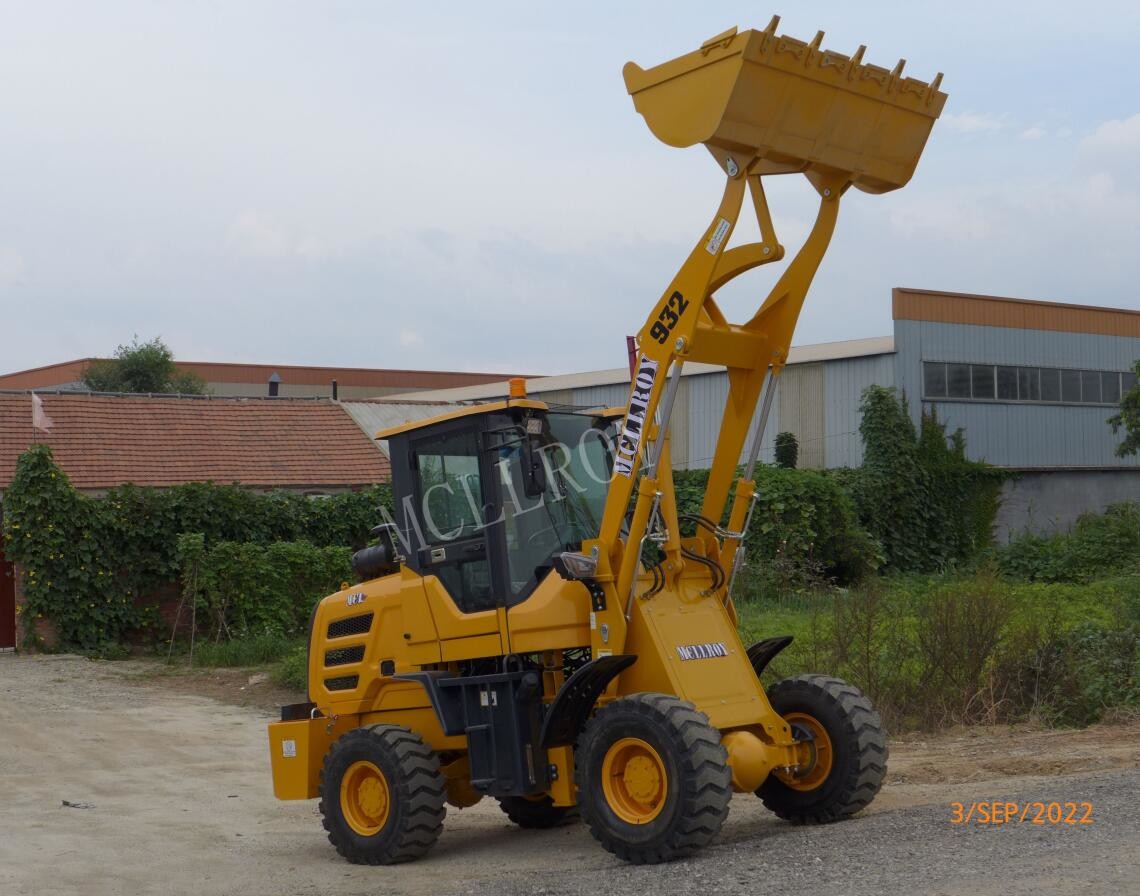

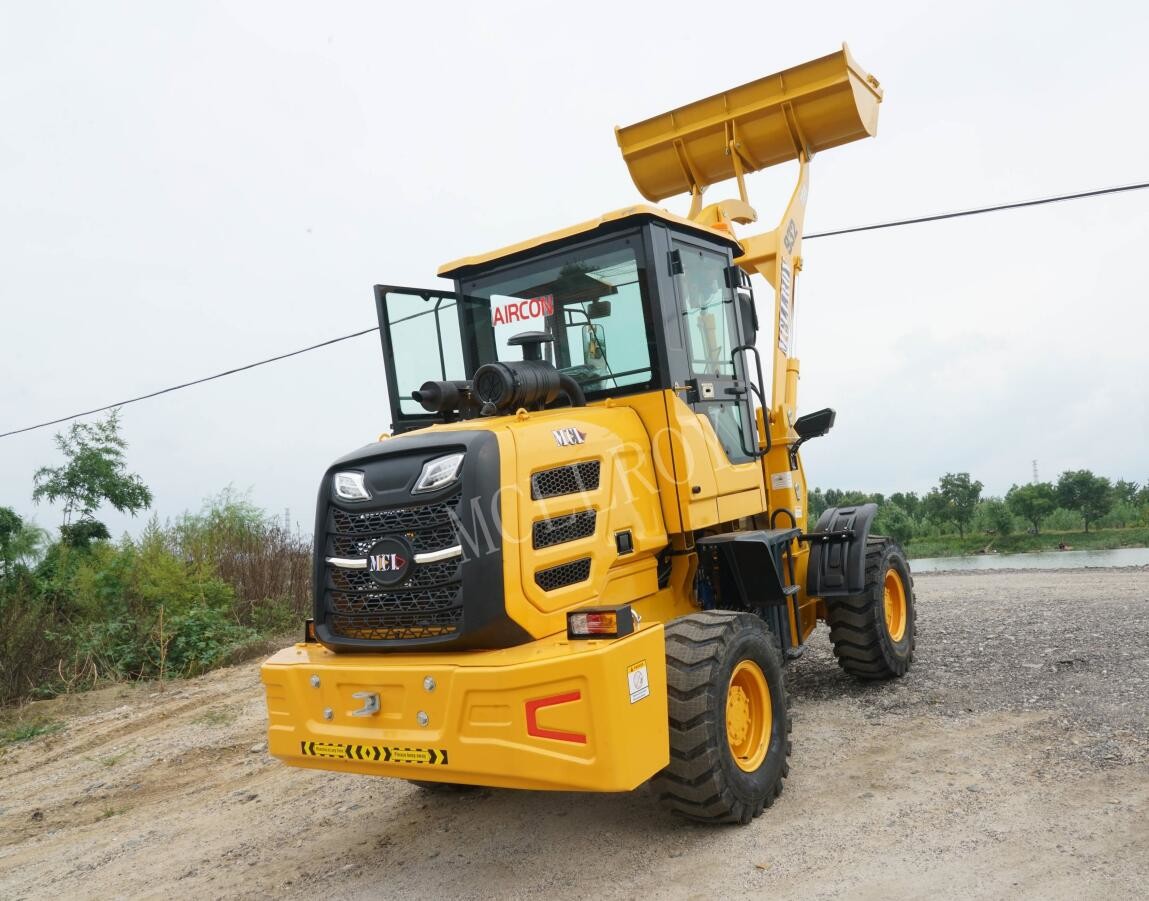

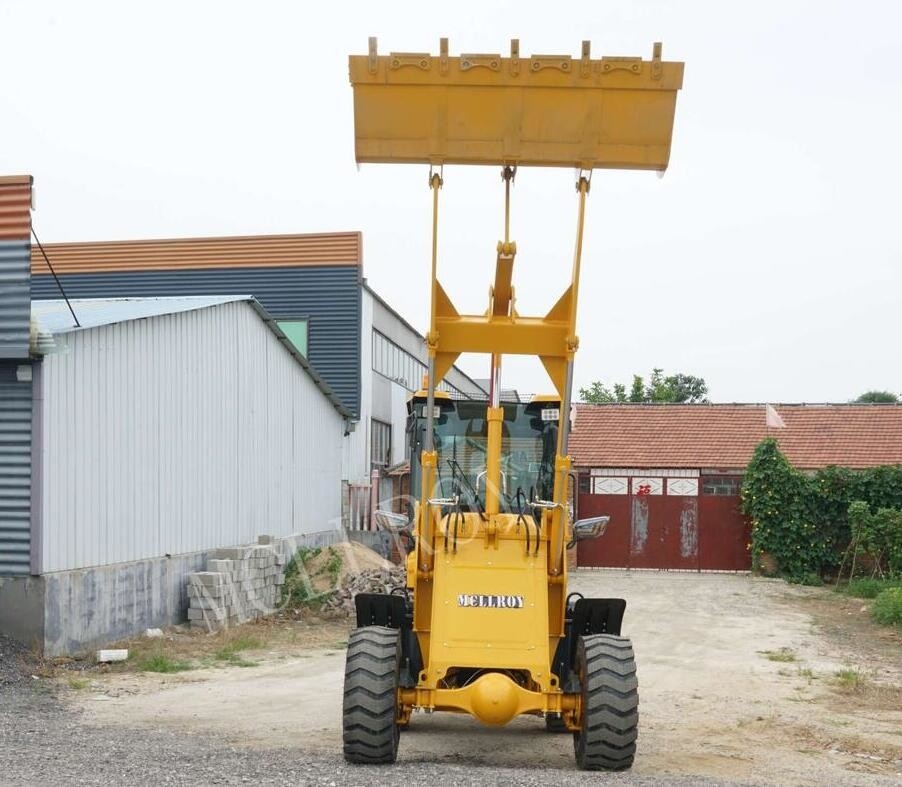

MCLLROY Wheel Loader is a front-wheel loader that comes equipped with a single bucket, an articulated structure, and hydraulic unloading capabilities. It has been meticulously developed and designed in accordance with the needs of users, with reference to models that incorporate advanced structural features and technologies from both domestic and international markets.
2. Specification
MCL 932 | |
Engine Model | Yun Nei 490 Supercharged |
RPM | 2400 |
Rated Power | 58 kW |
Emissions | EU Stage II |
Operating Weight | 3670 kg |
Rated Load | 1800 kg |
Bucket Capacities | 0.6-1.0 m³ |
Max. Travel Speed | 28 km/h |
Gear Box | CVT 265 torque converter |
Alex | Small hub |
Axle Base | 2210 mm |
Brake | Disc Brake |
Hydraulic Cycle time - lift | ≤ 7 s |
Min. Ground Clearance | 290 mm |
Wheel Base | 1490 mm |
Reach at Max.Dump Height | 3200 mm |
Dump Reach | ≤ 650 mm |
Overall Length - With Bucket | 5300 mm |
Overall Width | 1820 mm |
Overall Height | 2670 mm |
Tyre Size | 20.5-16 |
Joystick | Mechanical |
Min. turning radius | ≤ 7000 mm |
Hour meter | Yes |
Tool Box | Yes |
Dual Hight&Low Speed Handle | Yes |
Air Conditioning/heater | |
Quick Change | |
Multifunctional Attachment | |
Hydraulic Pilot |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Employing the highly efficient and durable Yunnei China II engine, renowned for its exceptional performance in agricultural and small-scale construction projects.
2) Boasting a cast steel small hub reduction axle, which is both classic and robust.
3) The horizontal frame design has been skillfully engineered to protect the gearbox and steering cylinder.
4) With a high chassis and a minimum ground clearance of 29 cm, the loader is well-suited for mountainous, agricultural, and mining operations.
5) The hydraulic system is stable and reliable, with triple-wire hydraulic hoses that facilitate short cycle times and streamlined operation.
6) The anti-rollover cab is designed with safety as a top priority, featuring high-pressure tempered glass that reduces the risk of injury even in the event of glass breakage.
7) The ergonomic adjustable seat is tailored to minimize driver fatigue.
8) The general dashboard and integrated hydraulic operating lever are designed to make driving simple and user-friendly.
9) The dual high and low-speed gearboxes and handles enable swift switching between work and travel modes.
10) The visual skylight design eases overhead shoveling and unloading operations.
11) With a wide field of view, the cab facilitates work in all directions and ensures safe walking.
12) Engineered with tires featuring a rubber content of over 38%, ensuring optimal durability and performance.
13) The external distribution valve and removable fuel tank streamline servicing and maintenance.
14) The buckets adhere to construction standards and are suitable for heavy-duty work.
15) The upgraded side flip hood and crimped model counterweight contribute to a more visually appealing appearance.
16) The tiger head base design fortifies the dynamic arm, enabling it to withstand force with ease.
17) Featuring adjustable air conditioning, the loader provides a comfortable driving experience even in adverse weather conditions.
4.FAQ of MCLLROY Wheel Loader
1) Are you a manufacturer or a trade company?
As a holding group company, we operate a manufacturing plant that specializes in the production of loaders, forklifts, and other construction equipment, boasting a rich 20-year history in machinery manufacturing. Additionally, we maintain a professional export company with 15 years of extensive experience in foreign exchange settlement, customs declaration, shipping, and taxation.
2) What is the payment terms?
We offer a variety of payment methods to suit your needs, including TT, Western Union, PayPal, domestic RMB private account, and cash. Typically, we require a 30% deposit, with the balance paid before delivery. Additionally, we also accept letters of credit at sight. Our accepted currencies include USD, EUR, and RMB. With so many options available, we are confident that you will find a payment method that is convenient and suitable for you.
3) Can I put my logo on the product?
We are delighted to engage in any form of collaboration with you. However, we kindly request that your logo is legally registered. If your trademark is legally registered, please provide the trademark registration certificate, as well as the relevant documents authorizing our production and export. If your trademark is not registered, there is no need to provide any documentation. The paramount consideration here is that your trademark does not infringe on any legal rights.
4) Can the color be customized?
Certainly. Our standard color is yellow. However, if you have a specific color in mind, please provide us with the designated color number.
5) How about your delivery time?
Our small loaders can be delivered approximately 7 days after the deposit has been received.
