Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL946G |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Yunnei 4102 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 76 KW | Emissions: | EU Stage II |
| Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
| Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
| Gear Box: | CVT 300 Split Torque Converter | Axle: | Large Hub |
| Axle Base: | 2600 Mm | Brake: | Air Brake |
| Hydraulic Cycle Time - Lift: | ≤ 10 S | Min. Ground Clearance: | 370 Mm |
| Wheel Base: | 2100 Mm | Reach At Max.Dump Height: | 3600 Mm |
| Dump Reach: | 1180 Mm | Overall Length - With Bucket: | 6660 Mm |
| Overall Width: | 2300 Mm | Overall Height: | 3000 Mm |
| Tyre Size: | 16/70-24 | Joystick: | Machanical |
| Min. Turning Radius: | 5500 Mm | Hour Meter: | Yes |
| Tool Box: | Yes | Dual Hight&Low Speed Handle: | Yes |
| Highlight: | 2.5 Ton Front End Wheel Loader,Mechanical Joystick Front End Wheel Loader |
||

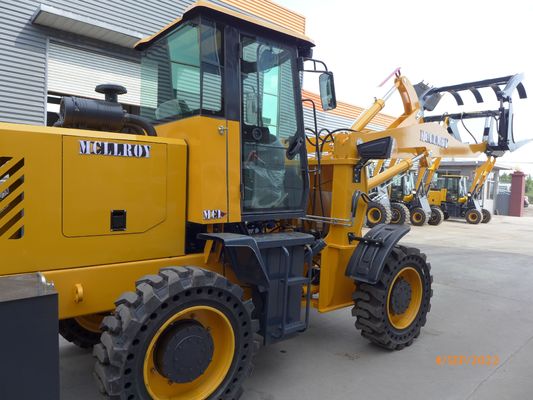

1. Products Description of MCLLROY Wheel Loader
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification of MCLLROY Wheel Loader
| MCL946G | Metric Units |
| Engine Model | Yunnei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6350 kg |
| Rated Load | 2200-2500 kg |
| Bucket Capacities | 1.4 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT 300 split torque converter |
| Axle | Large hub |
| Axle Base | 2600 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 10 s |
| Min. Ground Clearance | 370 mm |
| Wheel Base | 2100 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1180 mm |
| Overall Length - With Bucket | 6660 mm |
| Overall Width | 2300 mm |
| Overall Height | 3000 mm |
| Tyre Size | 16/70-24 |
| Joystick | Machanical |
| Min. turning radius | 5500 mm |
| Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) External distribution valve and removable fuel tank for easy servicing and maintenance.
2) Buckets are in accord with construction standard,which is suitable for heavy-duty work.
3) The upgraded side flip hood and the counterweight of the crimped model give a more attractive appearance.
4) The design of the tiger head base strengthens the dynamic arm to withstand the force.
5) Adjustable air-conditioning.
4.Delivery of MCLLROY Wheel Loader
In addition to stability, we also need to consider as many packs as possible. Since the outbreak of the COVID-19, ocean freight prices have increased significantly, and it is common to see increased costs due to increases in ocean freight rates.
In order to save the buyer's transportation cost, MCLLROY has optimized and improved the size of the loader according to the size of the container. On the premise of reducing customer disassembly procedures as much as possible, install as many as possible.
3 Units 918/926/930/932 can be loaded in a 40HQ container
2 Units 936/940 can be loaded in a 40HQ container
