Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MCL946G |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-6000/ |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Yunnei 4102 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 76 KW | Emissions: | EU Stage II |
| Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
| Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
| Gear Box: | CVT 300 Split Torque Converter | Axle: | Large Hub |
| Axle Base: | 2600 Mm | Brake: | Air Brake |
| Hydraulic Cycle Time - Lift: | ≤ 10 S | Min. Ground Clearance: | 370 Mm |
| Wheel Base: | 2100 Mm | Reach At Max.Dump Height: | 3600 Mm |
| Dump Reach: | 1180 Mm | Overall Length - With Bucket: | 6660 Mm |
| Overall Width: | 2300 Mm | Overall Height: | 3000 Mm |
| Highlight: | Gear Box Front End Wheel Loader,Large Hub Front End Wheel Loader |
||
1. Products Description of MCLLROY Wheel Loader
We need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.
MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification of MCLLROY Wheel Loader
| MCL946G | Metric Units |
| Engine Model | Yunnei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6350 kg |
| Rated Load | 2200-2500 kg |
| Bucket Capacities | 1.4 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT 300 split torque converter |
| Axle | Large hub |
| Axle Base | 2600 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 10 s |
| Min. Ground Clearance | 370 mm |
| Wheel Base | 2100 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1180 mm |
| Overall Length - With Bucket | 6660 mm |
| Overall Width | 2300 mm |
| Overall Height | 3000 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
5) Stable and proven hydraulic system with triple-wire hydraulic hoses for short cycle times and efficient operation.
6) With an anti-rollover cab, safety, guaranteed.The use of high pressure tempered glass makes it less likely that people will be injured even if the glass breaks.
7) Ergonomic adjustable seat for less fatiguing driving.
8) The general dashboard and integrated hydraulic operating lever design make driving simple and easy to handle.

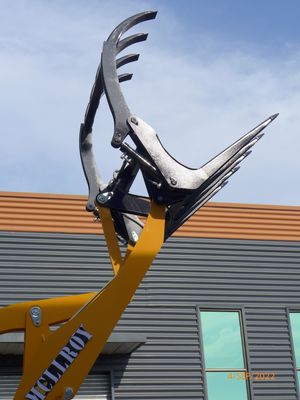

4.Attachment of MCLLROY Wheel Loader
A variety of accessories for make full use of the machine and improve the economic benefit.
MCLLROY wheel loader can be installed with different attachments to meet customers' work needs, as following:
Pallet fork,Snow bucket,High dump bucket,Sweeper,4in1 bucket,Quick-hitch,etc.
