Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE/ISO |
Model Number: | MCL946G |
Minimum Order Quantity: | 1 Unit |
Price: | $4000-6000/ |
Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
Delivery Time: | 5-8 days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
Supply Ability: | 100 Units / Month |
Engine Mode: | Yunnei 4102 Supercharged | RPM: | 2400 |
---|---|---|---|
Rated Power: | 76 KW | Emissions: | EU Stage II |
Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
Gear Box: | CVT 300 Split Torque Converter | Axle: | Large Hub |
Axle Base: | 2600 Mm | Brake: | Air Brake |
Hydraulic Cycle Time - Lift: | ≤ 10 S | Min. Ground Clearance: | 370 Mm |
Wheel Base: | 2100 Mm | Reach At Max.Dump Height: | 3600 Mm |
Dump Reach: | 1180 Mm | Overall Length - With Bucket: | 6660 Mm |
Overall Width: | 2300 Mm | Overall Height: | 3000 Mm |
Tyre Size: | 16/70-24 | Joystick: | Machanical |
Min. Turning Radius: | 5500 Mm | Hour Meter: | Yes |
Tool Box: | Yes | Dual Hight&Low Speed Handle: | Yes |
Highlight: | 3600mm Agriculture Wheel Loader,Articulated Agriculture Wheel Loader |

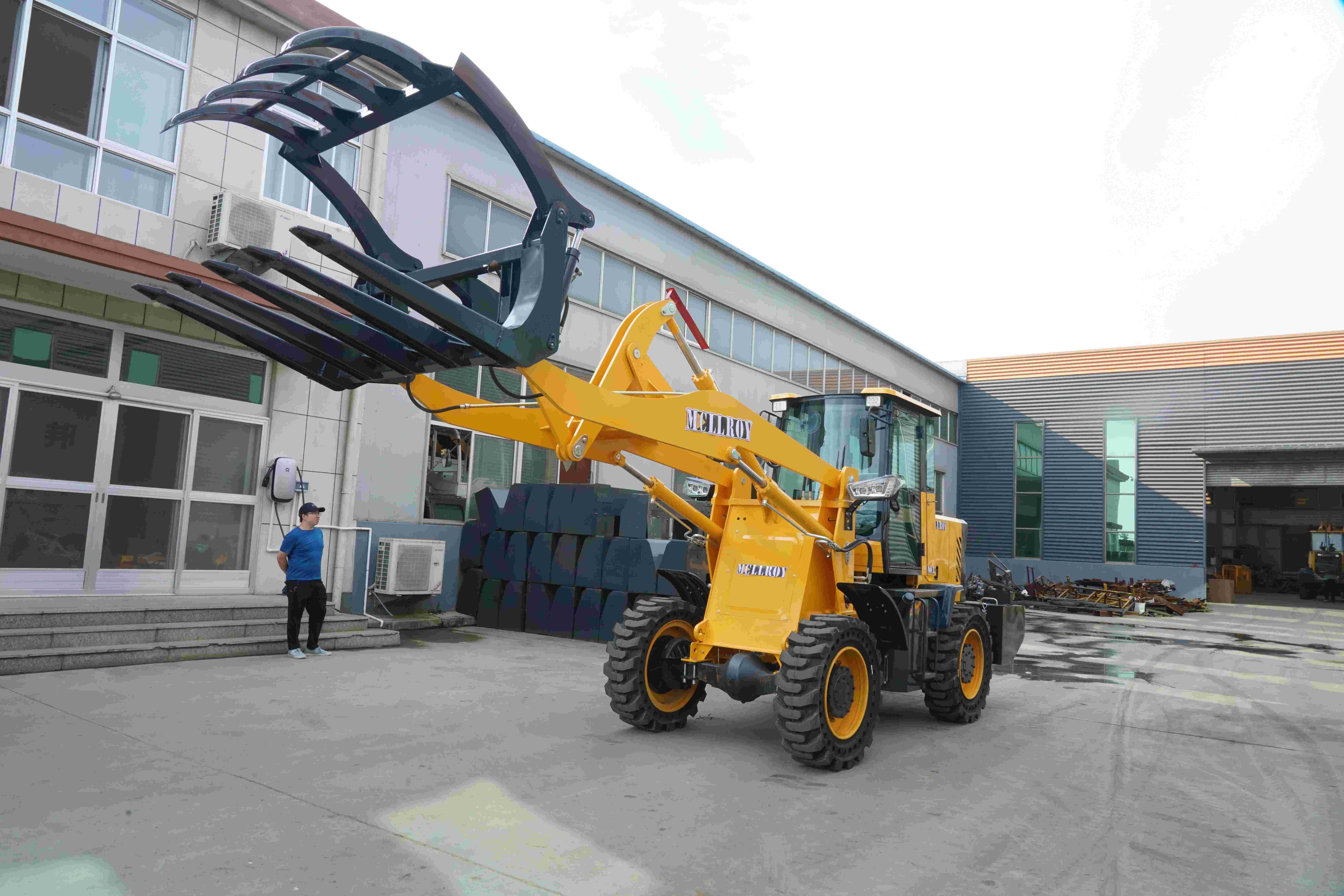

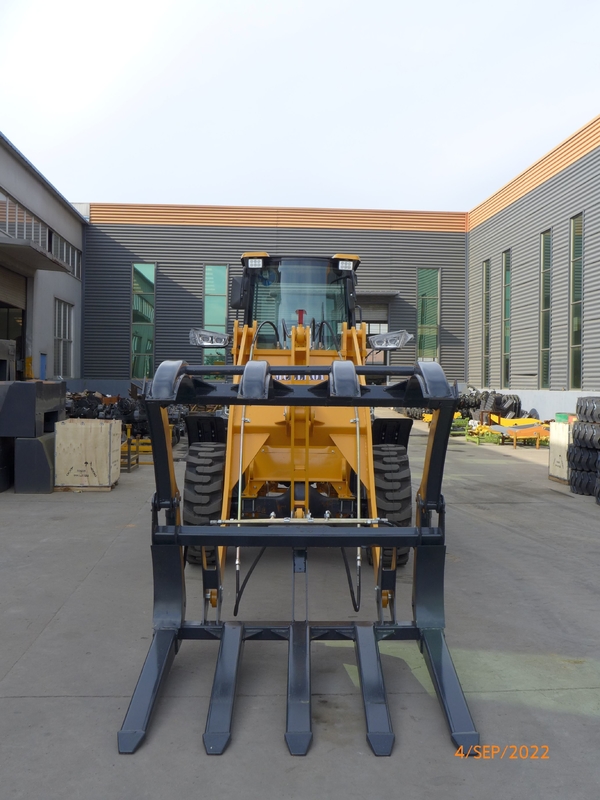

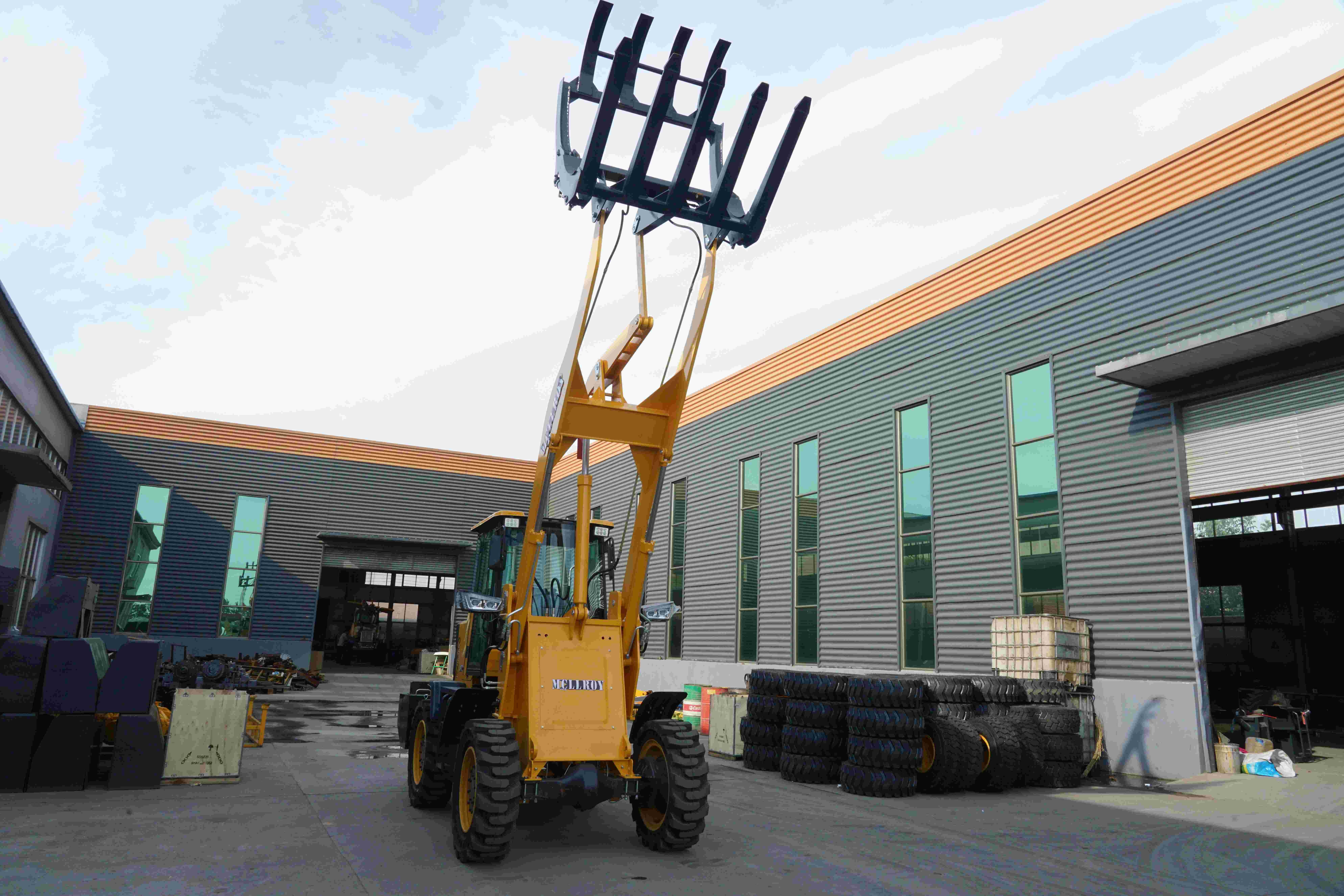

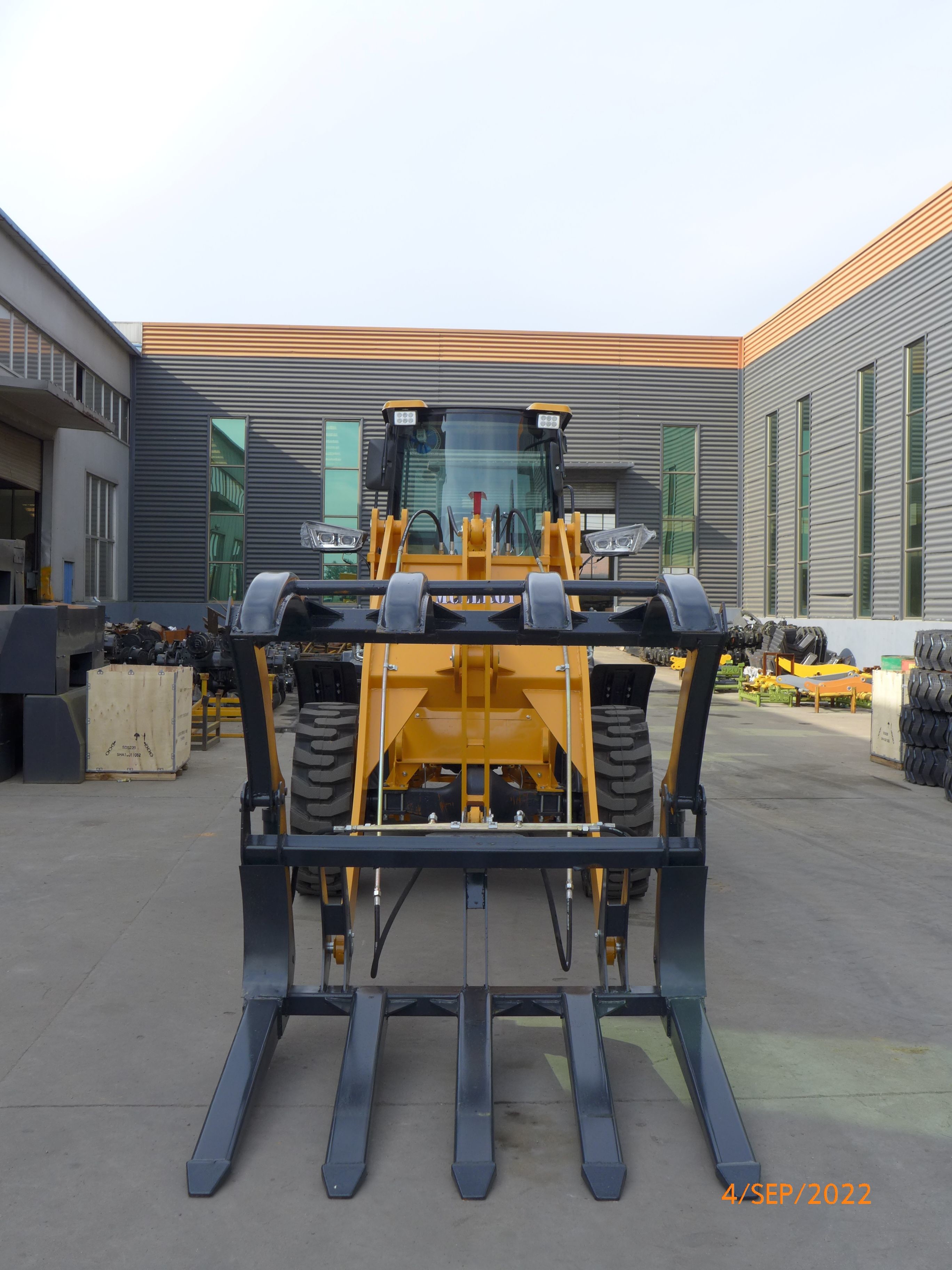

1. Products Description of MCLLROY Wheel Loader
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification of MCLLROY Wheel Loader
MCL946G | Metric Units |
Engine Model | Yunnei 4102 Supercharged |
RPM | 2400 |
Rated Power | 76 kW |
Emissions | EU Stage II |
Operating Weight | 6350 kg |
Rated Load | 2200-2500 kg |
Bucket Capacities | 1.4 m³ |
Max. Travel Speed | 45 km/h |
Gear Box | CVT 300 split torque converter |
Axle | Large hub |
Axle Base | 2600 mm |
Brake | Air Brake |
Hydraulic Cycle time - lift | ≤ 10 s |
Min. Ground Clearance | 370 mm |
Wheel Base | 2100 mm |
Reach at Max.Dump Height | 3600 mm |
Dump Reach | 1180 mm |
Overall Length - With Bucket | 6660 mm |
Overall Width | 2300 mm |
Overall Height | 3000 mm |
Tyre Size | 16/70-24 |
Joystick | Machanical |
Min. turning radius | 5500 mm |
Hour meter | Yes |
Tool Box | Yes |
Dual Hight&Low Speed Handle | Yes |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) External distribution valve and removable fuel tank for easy servicing and maintenance.
2) Buckets are in accord with construction standard,which is suitable for heavy-duty work.
3) The upgraded side flip hood and the counterweight of the crimped model give a more attractive appearance.
4) The design of the tiger head base strengthens the dynamic arm to withstand the force.
5) Adjustable air-conditioning.
4.Attachment of MCLLROY Wheel Loader
A variety of accessories for make full use of the machine and improve the economic benefit.
MCLLROY wheel loader can be installed with different attachments to meet customers' work needs, as following:
Pallet fork,Snow bucket,High dump bucket,Sweeper,4in1 bucket,Quick-hitch,etc.
