Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE/ISO |
Model Number: | MCL946G |
Minimum Order Quantity: | 1 Unit |
Price: | $4000-6000/ |
Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
Delivery Time: | 5-8 days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
Supply Ability: | 100 Units / Month |
Engine Mode: | Yunnei 4102 Supercharged | RPM: | 2400 |
---|---|---|---|
Rated Power: | 76 KW | Emissions: | EU Stage II |
Operating Weight: | 6350 Kg | Rated Load: | 2200-2500 Kg |
Bucket Capacities: | 1.4 M³ | Max. Travel Speed: | 45 Km/h |
Gear Box: | CVT 300 Split Torque Converter | Axle: | Large Hub |
Axle Base: | 2600 Mm | Brake: | Air Brake |
Hydraulic Cycle Time - Lift: | ≤ 10 S | Min. Ground Clearance: | 370 Mm |
Wheel Base: | 2100 Mm | Reach At Max.Dump Height: | 3600 Mm |
Dump Reach: | 1180 Mm | Overall Length - With Bucket: | 6660 Mm |
Overall Width: | 2300 Mm | Overall Height: | 3000 Mm |
Tyre Size: | 16/70-24 | Joystick: | Machanical |
Min. Turning Radius: | 5500 Mm | ||
High Light: | 3600mm Mining Wheel Loader,Quick Change Mining Wheel Loader |

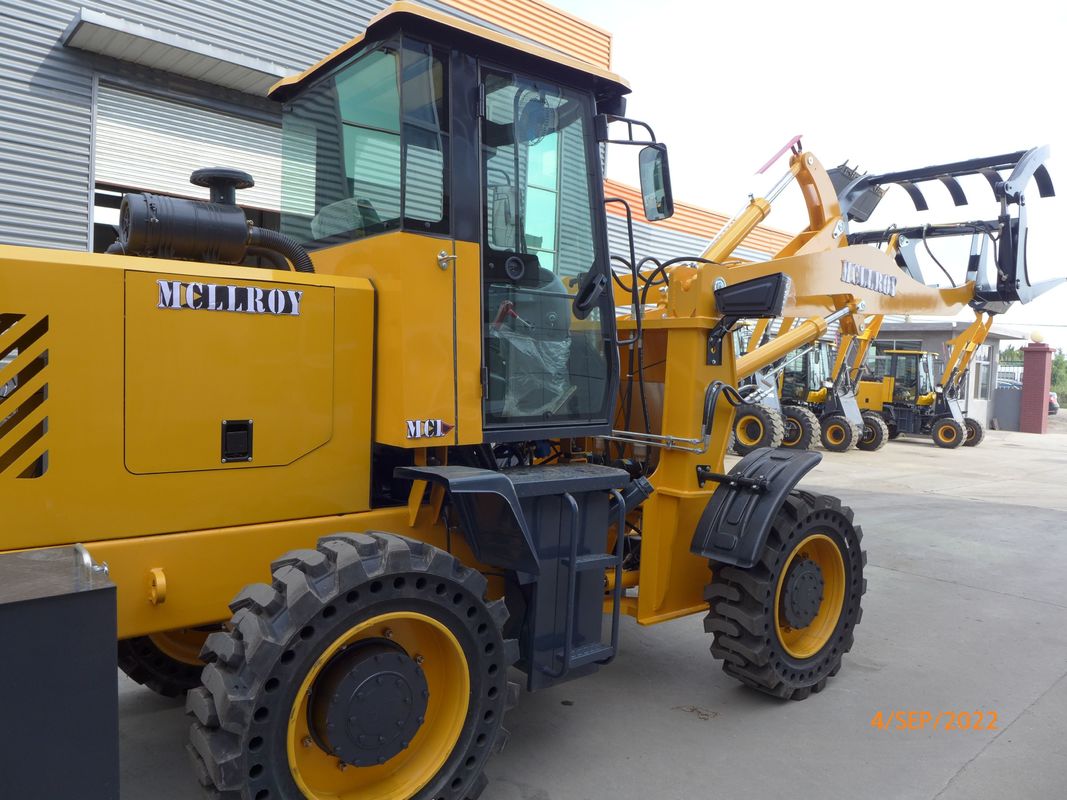

1. Products Description of MCLLROY Wheel Loader
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification of MCLLROY Wheel Loader
MCL946G | Metric Units |
Engine Model | Yunnei 4102 Supercharged |
RPM | 2400 |
Rated Power | 76 kW |
Emissions | EU Stage II |
Operating Weight | 6350 kg |
Rated Load | 2200-2500 kg |
Bucket Capacities | 1.4 m³ |
Max. Travel Speed | 45 km/h |
Gear Box | CVT 300 split torque converter |
Axle | Large hub |
Axle Base | 2600 mm |
Brake | Air Brake |
Hydraulic Cycle time - lift | ≤ 10 s |
Min. Ground Clearance | 370 mm |
Wheel Base | 2100 mm |
Reach at Max.Dump Height | 3600 mm |
Dump Reach | 1180 mm |
Overall Length - With Bucket | 6660 mm |
Overall Width | 2300 mm |
Overall Height | 3000 mm |
Tyre Size | 16/70-24 |
Joystick | Machanical |
Min. turning radius | 5500 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Dual high and low speed gearboxes and handles for quick switching between work and travel modes.
2) The visual skylight design makes overhead shovelling and unloading operations more convenient.
3) The cab has a wide field of view, which facilitates work in all directions and safe walking.
4) Uses engineering tyres with a rubber content of over 38% .
4. Inspection of MCLLROY Wheel Loader
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts, track width ,dashboard and electrical system , MCLLROY technicians usually need to inspect the followings(Parts III) :
1) Do the road test for 3 to 6km. If the water temperature is below 100 deg celcius after the road test, that is qualified, otherwise, technician will check where the problem is.
2) And then check if the lubricant oil pressure is normal;
3) Use thermometer to test the temperature of gearbox and hydraulic oil.
4) Touch the air pump by hand;
5) Check for abnormal noise, oil leakage.
6) Do the brake performance test :drive the loader on a 45-degree slope, step on the brake and do not let go, it's okay if the loader does not move.
