| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE/ISO |
| Model Number: | MSL930 |
| Minimum Order Quantity: | 1 Unit |
| Price: | $4000-8000/ |
| Packaging Details: | Nude,Fasten Packing ,2 or 3 Units loaded in one 40HQ |
| Delivery Time: | 5-8 days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment / 100% L / C at sight |
| Supply Ability: | 100 Units / Month |
| Engine Model: | Changfa 490 /Yun Nei 490 | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 42 KW | Emissions: | EU Stage II |
| Operating Weight: | 3200 Kg | Rated Load: | 2000 Kg |
| Bucket Capacities: | 1.0 M³ | Max. Travel Speed: | 35 Km/h |
| Highlight: | Front End Wheel Loader Machine,Mine Wheel Loader Machine |
||

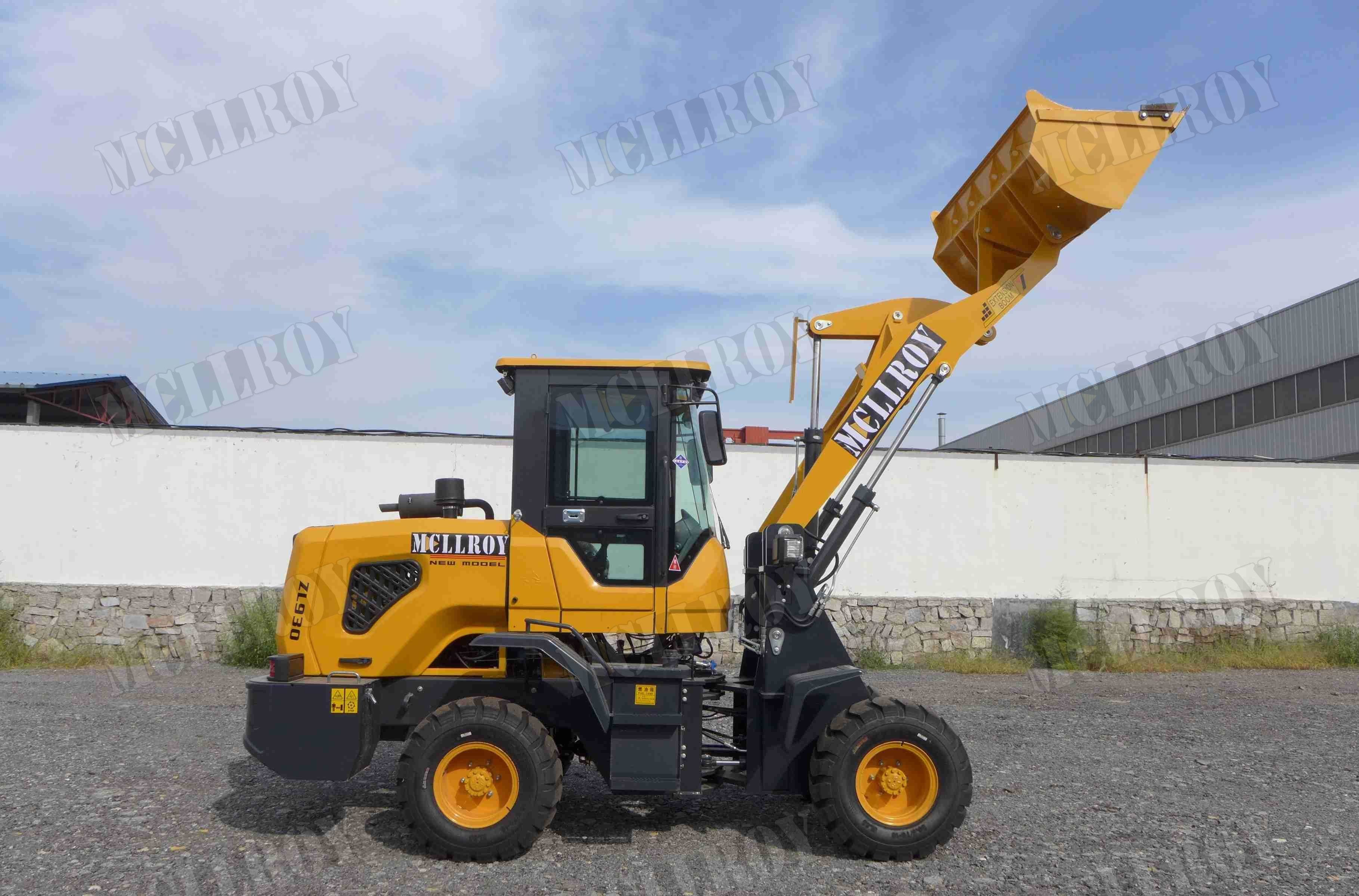

1. Products Description of MCLLROY Wheel Loader
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification of MCLLROY Wheel Loader
| MSL930/ZL930 | Metric Units |
| Engine Model | Changfa 490 /Yun Nei 490 |
| RPM | 2400 |
| Rated Power | 42 kW |
| Emissions | EU Stage II |
| Operating Weight | 3200 kg |
| Rated Load | 2000 kg |
| Bucket Capacities | 1.0 m³ |
| Max. Travel Speed | 35 km/h |
| Gear Box | CVT 265 torque converter |
| Axle | Isuzu |
| Axle Base | 2300 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 7 s |
| Min. Ground Clearance | 260 mm |
| Wheel Base | 1800 mm |
| Reach at Max.Dump Height | 3300 mm |
| Dump Reach | 850 mm |
| Overall Length - With Bucket | 5300 mm |
| Overall Width | 1850 mm |
| Overall Height | 2750 mm |
| Tyre Size | 20.5-16S |
| Joystick | Mechanical |
| Min. turning radius | 4500 mm |
3.Details and advantages of MCLLROY Wheel Loader
The MCLLROY MSL series are compact, yet powerful, delivering high performance .
The turning radius is small and the steering is flexible; suitable for operating in tight spaces.
A 25% increase in lift total cycling time and a 40-45km/h travel speed will allow the operator to be more productive.
While the enhanced structure parts such as bucket link,bell crane,steering pin, tiger head lift arm basement provides provides solid and durability when the loader is working under tough conditions.
Service brake control adopts the double-booster pump air over caliper disc brake, which has the characteristics of great brake power, convenient dismantling, safety and reliability.
17) Adjustable air-conditioning.
4.Attachment of MCLLROY Wheel Loader
MCLLROY compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
