Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL940 ZL940 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 76 KW | Rated Load: | 2800 Kg |
|---|---|---|---|
| Dumping Height: | 3500mm | Bucket Capacity: | 1.2 M³ |
| Max.Dump Clearance: | 3500mm | Emissions: | EU Stage II |
| Engine Model: | Yun Nei 4102 Supercharged | RPM: | 2400 |
| Operating Weight: | 6100 Kg | Bucket Capacities: | 1.2 M³ |
| Max. Travel Speed: | 28 Km/h | Gear Box: | "CVT 280 Torque Converter" |
| Axle: | Large Hub | Axle Base: | 2560 Mm |
| Brake: | Air Brake | Hydraulic Cycle Time - Lift: | ≤ 6 S |
| Min. Ground Clearance: | 400 Mm | Wheel Base: | 1640 Mm |
| Reach At Max.Dump Height: | 3500 Mm | Dump Reach: | ≤ 650 Mm |
| Overall Length - With Bucket: | 6240 Mm | Overall Width: | 2040 Mm |
| Overall Height: | 2830 Mm | ||
| High Light: | 2800kg Front End Wheel Loader,Yunnei Front End Wheel Loader |
||

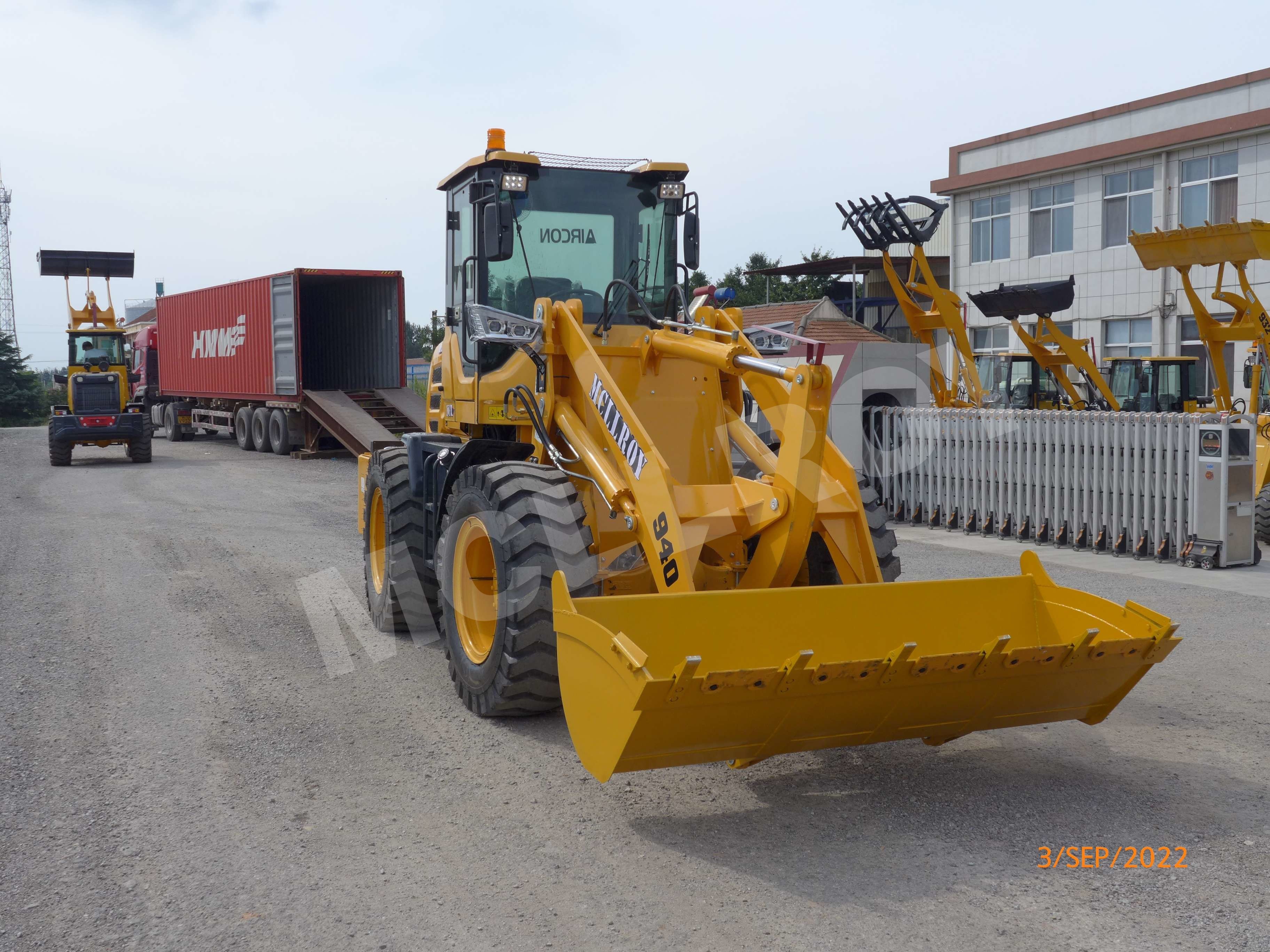

1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MODEL | MCL 940 | |
| ENGINE | Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 | |
| Rated Power | 76 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 6100 kg |
| Rated Load | 2800 kg | |
| BUCKETS | Bucket Capacities | 1.2 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
|
| Axle | Large hub | |
| Axle Base | 2560 mm | |
| Brake | Air Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 400 mm |
| Wheel Base | 1640 mm | |
| Reach at Max.Dump Height | 3500 mm | |
| Dump Reach | ≤ 650 mm | |
| Overall Length - With Bucket | 6240 mm | |
| Overall Width | 2040 mm | |
| Overall Height | 2830 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 1670-24 |
| Breakout Force | 52 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 6200 mm | |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes | |
| Dual Hight&Low Speed Handle | Yes | |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Strong driven force ,low fuel consumption ,high economic benefits.
2) Transmission:Split torque converter,not high temperature,easy to repair.
3) Hydraulic system:Open hydraulic system,constant flow gear pump ,heat treatment gear,provide stable high pressure oil for wheel loader.
4) Tire:A variety of patterns to adapt to different perorations ,solid tires available.
4.FAQ
1) Are you a manufacturer or a trade company?
We are a holding group company.
Its manufacturing plant specializes in the production of loaders, forklifts and other construction equipment, with 20 years of experience in machinery manufacturing.
We also have a professional export company with 15 years of rich experience in foreign exchange settlement, customs declaration, shipping and taxation.
2) What is the payment terms?
We accept TT, Western Union, Paypal, domestic RMB private account, and cash. Usually 30% deposit, the balance paid before delivery.And a Letter of credit at sight is acceptable either.
Currencies include USD, EUR, and RMB.
There are so many ways to get paid, there's always one that's right for you.
3) Can I put my logo on the product?
Yes ,we welcome any kind of cooperation.Make sure your logo is legally registered. If it is a legally registered trademark, please provide the trademark registration certificate, as well as the documents authorizing our production and export.
If your trademark is unregistered, you do not need to provide any documentation.
The key here is that your trademark is not infringing.
