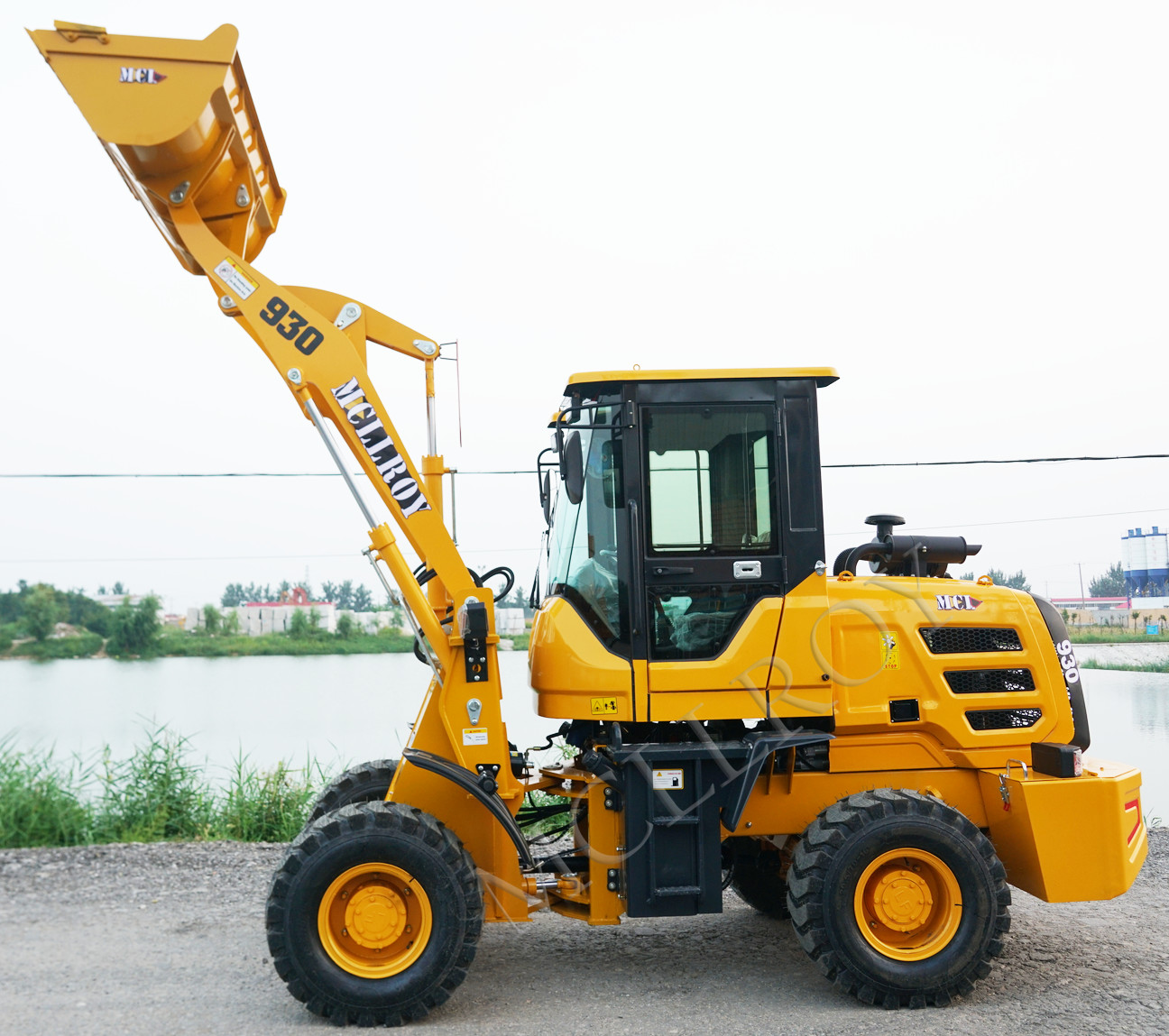

2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3

2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3
2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3 2210mm Axle Base Compact Wheel Loader Bucket Capacity 1.0m3
Basic Information
Place of Origin: China
Brand Name: MCLLROY
Certification: CE,ISO9001
Model Number: MCL930 ZL930
Minimum Order Quantity: 1 Set
Price: $ 4000-6000 /Unit
Packaging Details: Nude ,3 Sets Fasten Packing in 1 40HQ
Delivery Time: 5-8 working days
Payment Terms: 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
Supply Ability: 100 sets / month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Rated Power: 42 KW Rated Load: 1600kg
Dumping Height: 3200mm Bucket Capacity: 0.6-1.0 M³
Max.Dump Clearance: 3500mm Emissions: EU Stage II
Operating Weight: 3500 Kg Max. Travel Speed: 28 Km/h
Gear Box: CVT 265 Torque Converter Axle: Small Hub
Axle Base: 2210 Mm Brake: Air Brake
Hydraulic Cycle Time - Lift: ≤ 7 S Min. Ground Clearance: 290 Mm
Wheel Base: 1490 Mm Reach At Max.Dump Height: 3200 Mm
Dump Reach: 700 Mm Overall Length - With Bucket: 5300 Mm
Overall Width: 1820 Mm Overall Height: 2760 Mm
Tyre Size: 20.5-16 Breakout Force: 40 KN
Joystick: Machanical Min. Turning Radius: ≤ 7000 Mm
High Light:

2210mm Axle Base Compact Wheel Loader

,

1.0m3 Compact Wheel Loader

COMPACT WHEEL LOADER STRICT STANDARD INSPECTION PROCESS ENSURING THE QUALITY



1. Products Description

In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.



The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.

The flexibility and light operation mainly depends on the hydraulic system of the loader.

The low failure rate depends on quality as well as the after-sales service.


MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.



2. Specification

MODEL MCL930/ ZL930 Metric Units
ENGINE Engine Model Yun Nei 490
RPM 2400
Rated Power 42 kW
Emissions EU Stage II
WEIGHTS Operating Weight 3500 kg
Rated Load 1600 kg
BUCKETS Bucket Capacities 0.6-1.0 m³
TRANSMISSION Max. Travel Speed 28 km/h
Gear Box CVT
265 torque converter
Axle Small hub
Axle Base 2210 mm
Brake Air Brake
HYDRAULIC SYSTEM Hydraulic Cycle time - lift ≤ 7 s
DIMENSIONS(APPROXIMATE) Min. Ground Clearance 290 mm
Wheel Base 1490 mm
Reach at Max.Dump Height 3200 mm
Dump Reach 700 mm
Overall Length - With Bucket 5300 mm
Overall Width 1820 mm
Overall Height 2760 mm
OPERATING SPECIFICATIONS Tyre Size 20.5-16
Breakout Force 40 KN
Joystick Machanical
Min. turning radius ≤ 7000 mm
STANDARD EQUIPMENT Hour meter Yes
Tool Box Yes
Dual Hight&Low Speed Handle Yes
OPTIONAL EQUIPMENT Air Conditioning/heater Option
Quick Change Option
Multifunctional Attachment Option
Hydraulic Pilot Option



3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Engine:Strong driven force ,low fuel consumption ,high economic benefits.

2) Transmission:Split torque converter,not high temperature,easy to repair.

3) Hydraulic system:Open hydraulic system,constant flow gear pump ,heat treatment gear,provide stable high pressure oil for wheel loader.

4) Tire:A variety of patterns to adapt to different perorations ,solid tires available.



4. Inspection

The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts and track width,MCLLROY technicians usually need to inspect the followings(Parts II) :

1) Check the meters reading on dash board inside the cab,including

n brake pump pressure: 0.4-0.8;

n lubricant oil pressure: 0.2-0.6;

n water temperature: check if it is too high after the testing;

n torque converter pressure: 2.2-2.4

n (at full load and step heavily on the accelerate pedal)

2) Check if head light, tail light, on and off switch of different functions, and radio operating normally, if electric wires are exposed.
