| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL930 ZL930 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 42 KW | Rated Load: | 1600kg |
|---|---|---|---|
| Dumping Height: | 3200mm | Bucket Capacity: | 0.6-1.0 M³ |
| Max.Dump Clearance: | 3500mm | Emissions: | EU Stage II |
| Operating Weight: | 3500 Kg | Max. Travel Speed: | 28 Km/h |
| Gear Box: | CVT 265 Torque Converter | Axle: | Small Hub |
| Axle Base: | 2210 Mm | Brake: | Air Brake |
| Hydraulic Cycle Time - Lift: | ≤ 7 S | Min. Ground Clearance: | 290 Mm |
| Wheel Base: | 1490 Mm | Reach At Max.Dump Height: | 3200 Mm |
| Dump Reach: | 700 Mm | Overall Length - With Bucket: | 5300 Mm |
| Overall Width: | 1820 Mm | Overall Height: | 2760 Mm |
| High Light: | 57HP Front Wheel Loader,1490mm Base Front Wheel Loader |
||

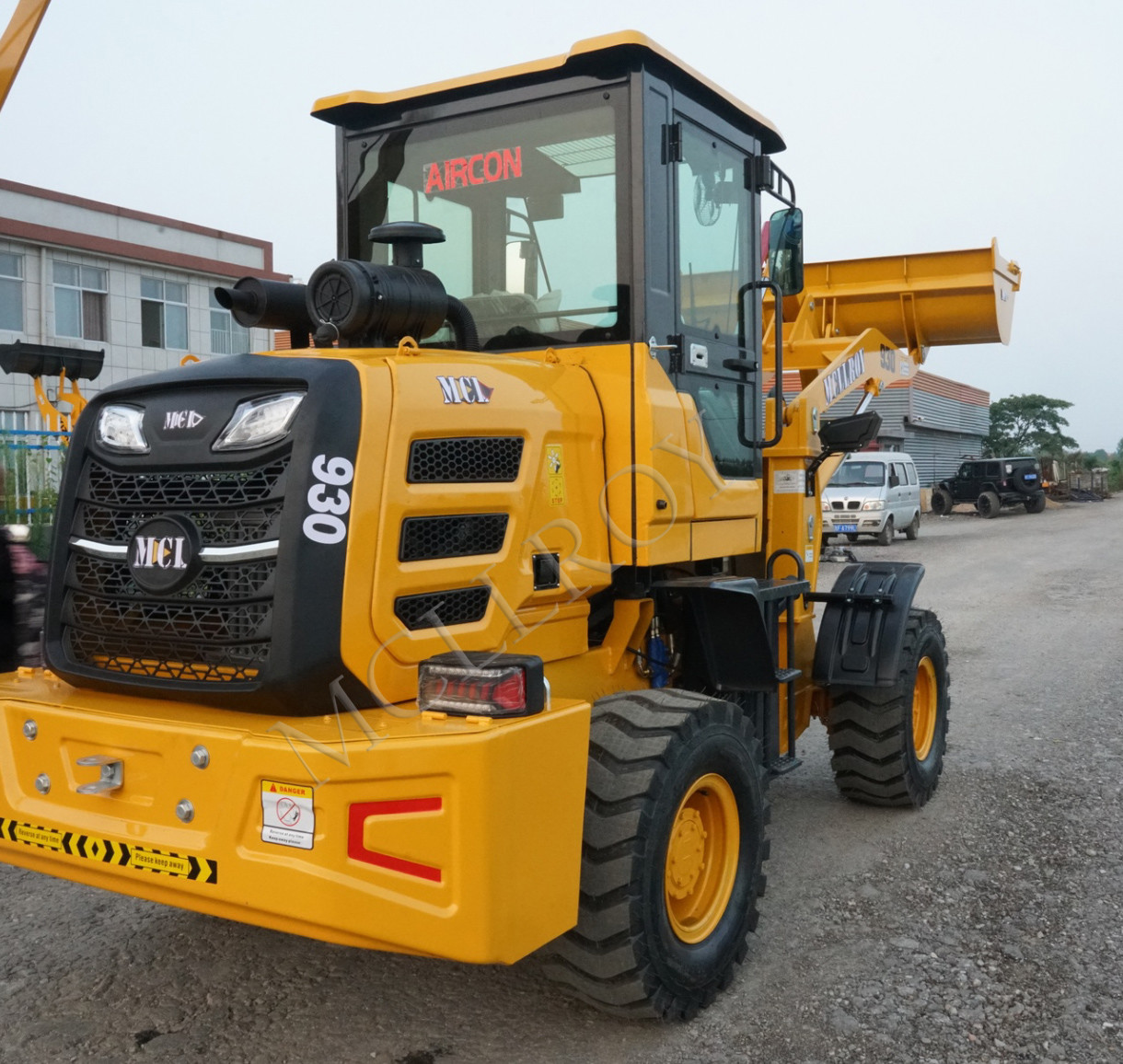

1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MODEL | MCL930/ ZL930 | Metric Units |
| ENGINE | Engine Model | Yun Nei 490 |
| RPM | 2400 | |
| Rated Power | 42 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 3500 kg |
| Rated Load | 1600 kg | |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
|
| Axle | Small hub | |
| Axle Base | 2210 mm | |
| Brake | Air Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm | |
| Reach at Max.Dump Height | 3200 mm | |
| Dump Reach | 700 mm | |
| Overall Length - With Bucket | 5300 mm | |
| Overall Width | 1820 mm | |
| Overall Height | 2760 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 20.5-16 |
| Breakout Force | 40 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 7000 mm | |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes | |
| Dual Hight&Low Speed Handle | Yes | |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option | |
| Multifunctional Attachment | Option | |
| Hydraulic Pilot | Option |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:After the rise of force ,high discharge automatic flat working device,short operation time, improve the work efficiency.
4.Attachment
MCLLROY compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
