| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL930 ZL930 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 42 KW | Rated Load: | 1600kg |
|---|---|---|---|
| Dumping Height: | 3200mm | Bucket Capacity: | 0.6-1.0 M³ |
| Max.Dump Clearance: | 3500mm | Emissions: | EU Stage II |
| Operating Weight: | 3500 Kg | Max. Travel Speed: | 28 Km/h |
| Gear Box: | CVT 265 Torque Converter | Axle: | Small Hub |
| Axle Base: | 2210 Mm | Brake: | Air Brake |
| High Light: | Mini Shovel 1.5 Ton Wheel Loader,EU Stage 1.5 Ton Wheel Loader |
||

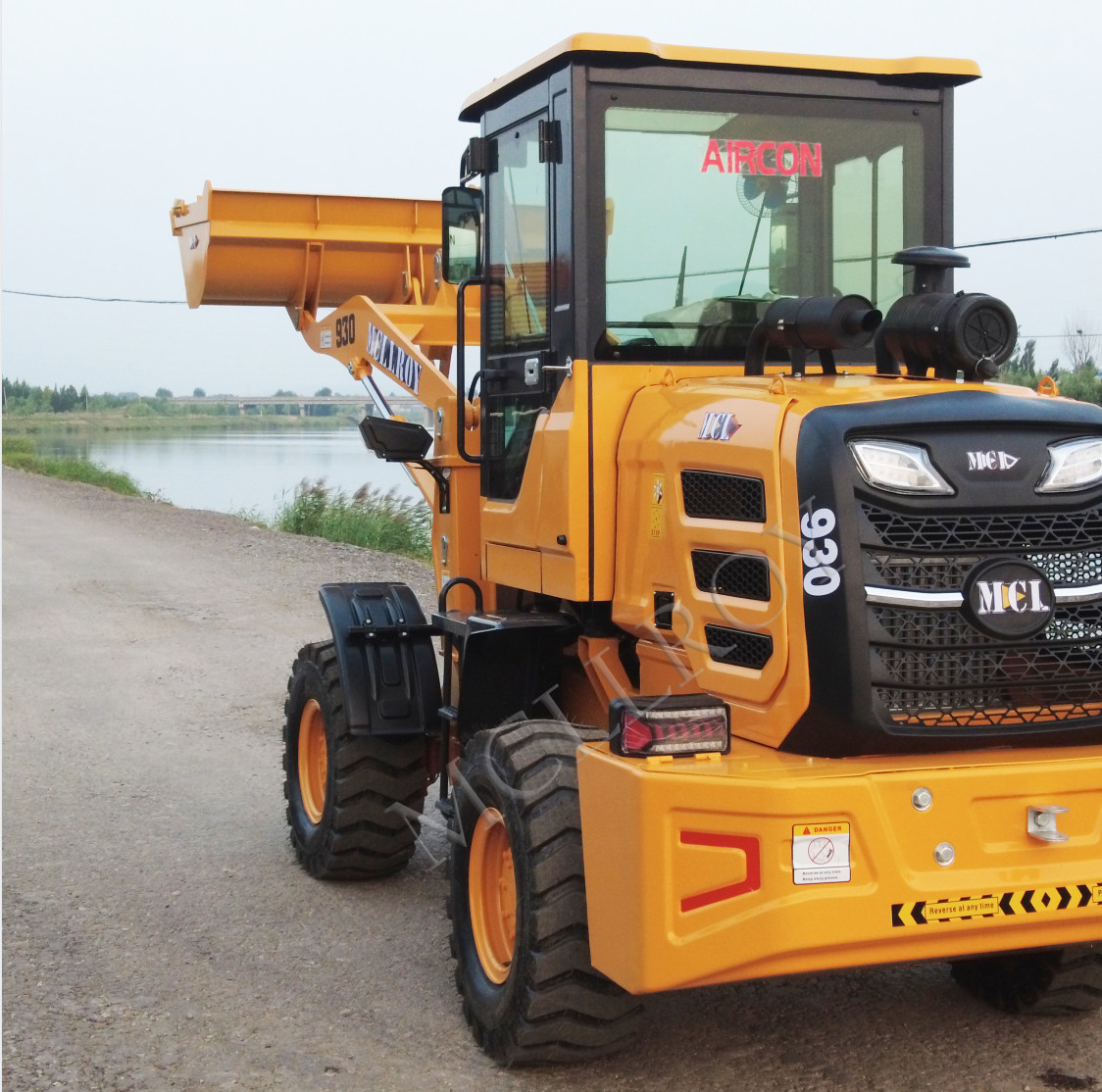

1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MODEL | MCL930/ ZL930 | Metric Units |
| ENGINE | Engine Model | Yun Nei 490 |
| RPM | 2400 | |
| Rated Power | 42 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 3500 kg |
| Rated Load | 1600 kg | |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
|
| Axle | Small hub | |
| Axle Base | 2210 mm | |
| Brake | Air Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The thickened frame has strong impact resistance and remarkable passing performance, enabling the loader to pass unimpeded in the difficult working environment.
3) Cab:Large space in the H-series cab The low-noise and shock-absorbing cab
4) The brake caliper is exposed to facilitate servicing.
5) The bucket with high wear-resistant material even is used for stone.
4.Delivery
The most important thing for delivery is the stability. The climate at sea is unpredictable. If the reinforcement is improper, it will cause damage to the machine during transportation. For example, if the lifting boom is not properly reinforced, it will cause the boom to fall, smash the cab, and smash the glass.
The shipping process for MCLLROY is as follows:
1.Tool box put in the loader.
2.Seat and control panel warp in PVC.
3.Warning lights put in the loader.
4.Drive the loader inside the Container.
5.Stabilize the loader with heavy steel rope.
6.Fasten triangles wood in bottom of tires.
7.Close and seal the door ready for shipment.
