| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL940 ZL940 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Rated Power: | 76kw | Rated Load: | 2200kg |
|---|---|---|---|
| Dumping Height: | 3500mm | Bucket Capacity: | 1.2m3 |
| Overall Size (L*W*H): | 6330*2170*3080mm | Max.Dump Clearance: | 3500mm |
| Emissions: | EU Stage II | Operating Weight: | 6100 Kg |
| High Light: | Mining 2.5 Ton Wheel Loader,Large Hub 2.5 Ton Wheel Loader |
||
1. Products Description

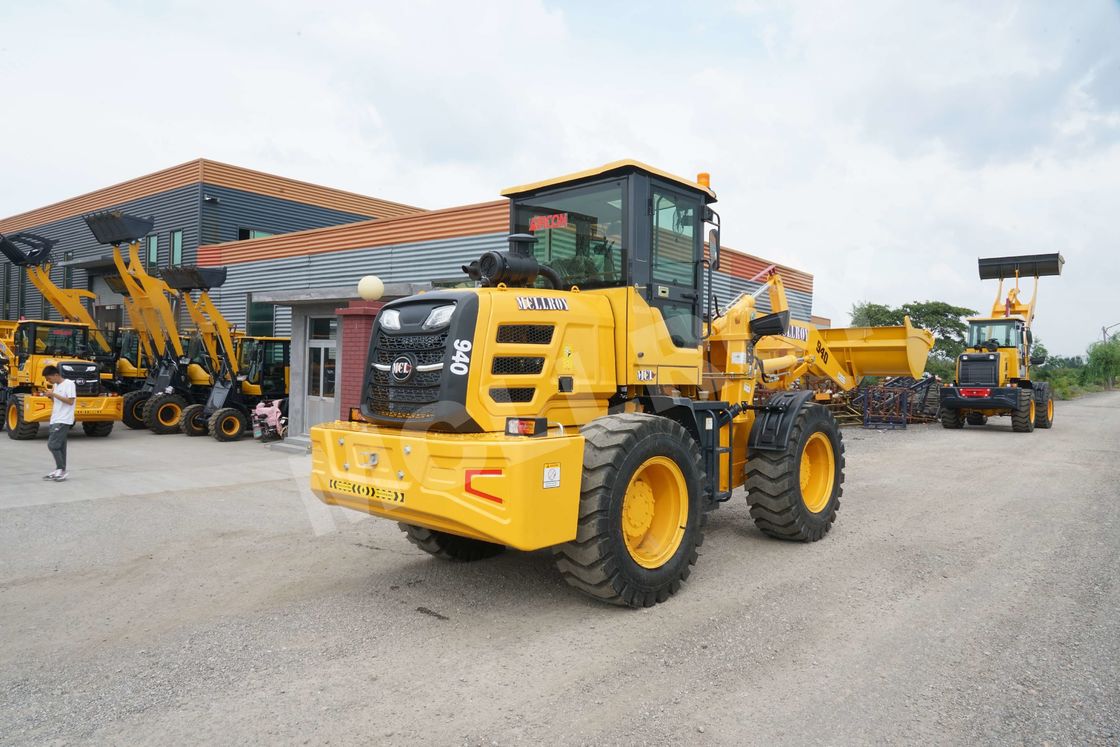

If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification
| MODEL | MCL 940 | |
| ENGINE | Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 | |
| Rated Power | 76 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 6100 kg |
| Rated Load | 2800 kg | |
| BUCKETS | Bucket Capacities | 1.2 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
|
| Alex | Large hub | |
| Axle Base | 2560 mm | |
| Brake | Air Brake | |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
3) Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.
4) Complete safety signs.
5) Large steps on the side of the frame also enhance accessibility.
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory arrange seven steps for assembly. There are over a thousand parts in a loader. I will talk about assembly of major components.
Second step is to connect the engine and gearbox together, install drive shafts, add engine lubricant. oil, connect the pipeline of working pump and walking pump.
At this point ,don't forget to apply sealant on working pumps and walking pumps , apply oil seals, tighten screws, to ensure there will be no oil leaking; adding engine lubricant. oil is important (there are winter lubricant. oil and summer lubricant. oil, the oil suitable for winter is relatively thin, the oil used in summer is relatively thick ).
Two workers work together to finish the task.
