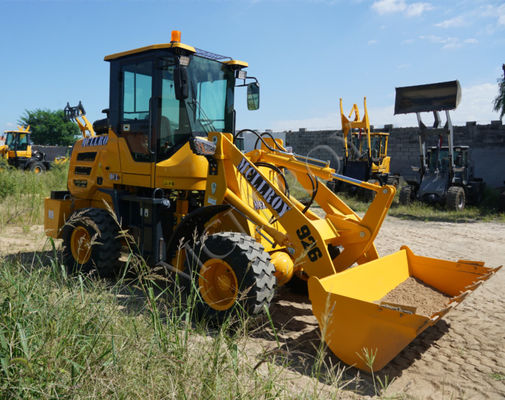

EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader

EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader
EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader EU Stage II 1.5 Ton Wheel Loader Isuzu Axle Mini Articulated Loader
Basic Information
Place of Origin: China
Brand Name: MCLLROY
Certification: CE,ISO9001
Model Number: MCL926
Minimum Order Quantity: 1 Set
Price: $ 4000-6000 /Unit
Packaging Details: Nude ,3 Sets Fasten Packing in 1 40HQ
Delivery Time: 5-8 working days
Payment Terms: 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
Supply Ability: 100 sets / month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Engine Brand: Yunnei Engine Model: YN490
Engine Power: 42 Kw Rated Load: 1500 KG
Bucket Length: 1.9 M Dumping Height: 3200 Mm
Operating Weight: 3340 Kg Emissions: EU Stage II
Hydraulic Cycle Time - Lift: ≤ 7 S Axle: Isuzu
Axle Base: 2210 Mm Brake: Disc Brake
High Light:

EU Stage 1.5 Ton Wheel Loader

,

Isuzu Axle 1.5 Ton Wheel Loader

Mini Articulated Loader 1.5 Ton Wheel Loader Isuzu Axle

1. Products Description

We need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.



MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.



2. Specification

MODEL MCL 926
ENGINE Engine Model Yun Nei 490
RPM 2400
Rated Power 42 kW
Emissions EU Stage II
WEIGHTS Operating Weight 3340 kg
Rated Load 1500 kg
BUCKETS Bucket Capacities 0.6-1.0 m³
TRANSMISSION Max. Travel Speed 28 km/h
Gear Box Mechanical Transmission(3F+2R)
Axle Isuzu
Axle Base 2210 mm
Brake Disc Brake
HYDRAULIC SYSTEM Hydraulic Cycle time - lift ≤ 7 s
DIMENSIONS(APPROXIMATE) Min. Ground Clearance 340 mm
Wheel Base 1400 mm
Reach at Max.Dump Height 3200 mm
Dump Reach ≤ 650 mm
Overall Length - With Bucket 5340 mm
Overall Width 1820 mm
Overall Height 2670 mm
OPERATING SPECIFICATIONS Tyre Size 20.5-16
Breakout Force 32 KN
Joystick Machanical
Min. turning radius ≤ 6800 mm




3. Details and Advantages

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

1) Frame:High Reliability Upgraded & enhanced front & back frames ,and reinforced counterweight.

2) Cab:Comfortable Operation Ergonomic design for more comfortable operation.

3) Convenient maintenance leading-out grease fitting is convenient for lubrication.

4) Ladder with wide steps and well-placed hand holds to ease entry and exit from the cabin.



4.Delivery

The most important thing for delivery is the stability. The climate at sea is unpredictable. If the reinforcement is improper, it will cause damage to the machine during transportation. For example, if the lifting boom is not properly reinforced, it will cause the boom to fall, smash the cab, and smash the glass.

The shipping process for MCLLROY is as follows:

1.Tool box put in the loader.

2.Seat and control panel warp in PVC.

3.Warning lights put in the loader.

4.Drive the loader inside the Container.

5.Stabilize the loader with heavy steel rope.

6.Fasten triangles wood in bottom of tires.

7.Close and seal the door ready for shipment.
