Place of Origin: | China |
---|---|
Brand Name: | MCLLROY |
Certification: | CE,ISO9001 |
Model Number: | MCL926 |
Minimum Order Quantity: | 1 Set |
Price: | $ 4000-6000 /Unit |
Packaging Details: | Nude ,3 Sets Fasten Packing in 1 40HQ |
Delivery Time: | 5-8 working days |
Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
Supply Ability: | 100 sets / month |
Engine Brand: | Yunnei | Engine Model: | YN490 |
---|---|---|---|
Engine Power: | 42 Kw | Rated Load: | 1500 KG |
Bucket Length: | 1.9 M | Dumping Height: | 3200 Mm |
Operating Weight: | 3340 Kg | Emissions: | EU Stage II |
Highlight: | Yunnei Engine 1.5 Ton Wheel Loader,1.5 Ton Wheel Loader |

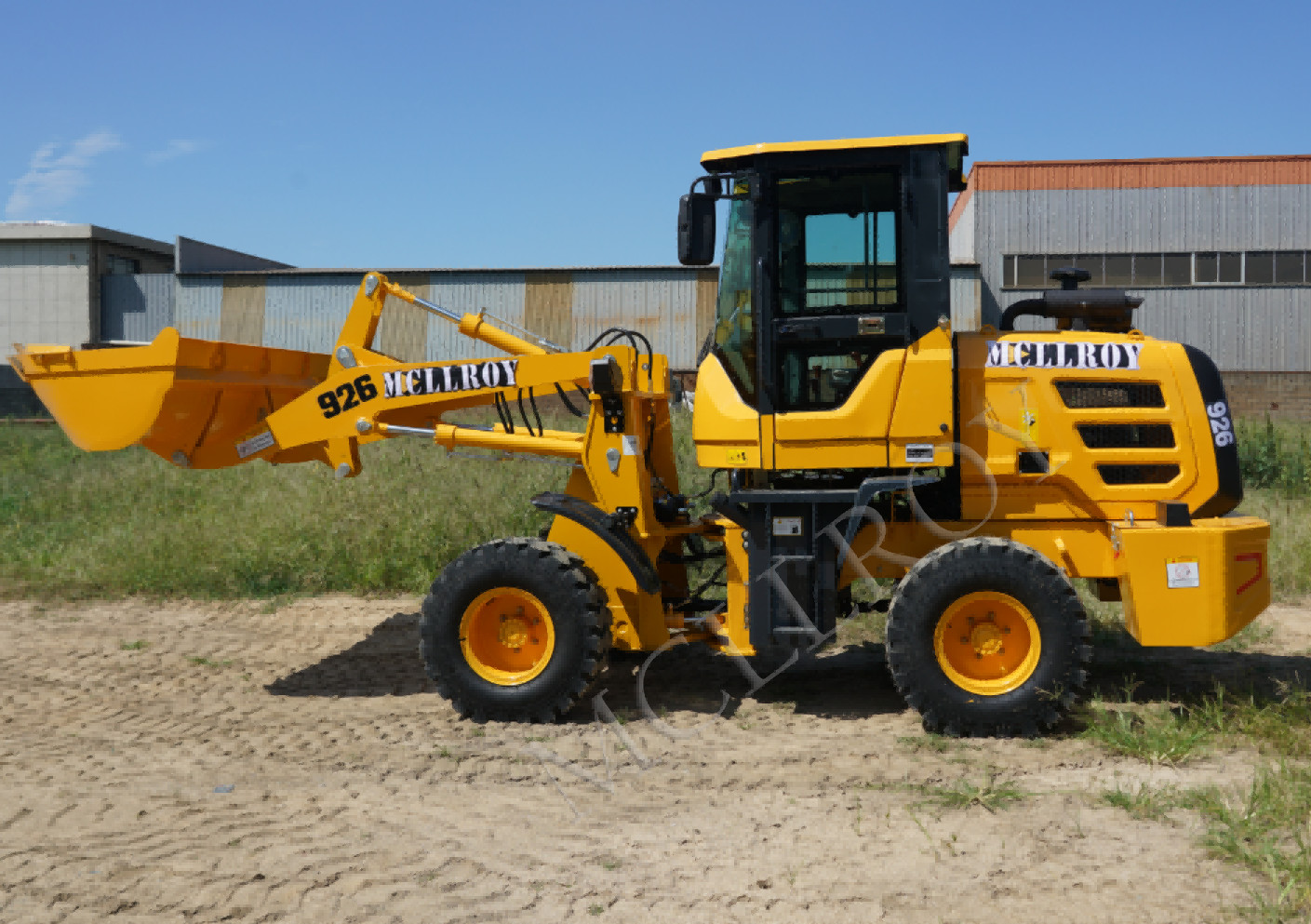

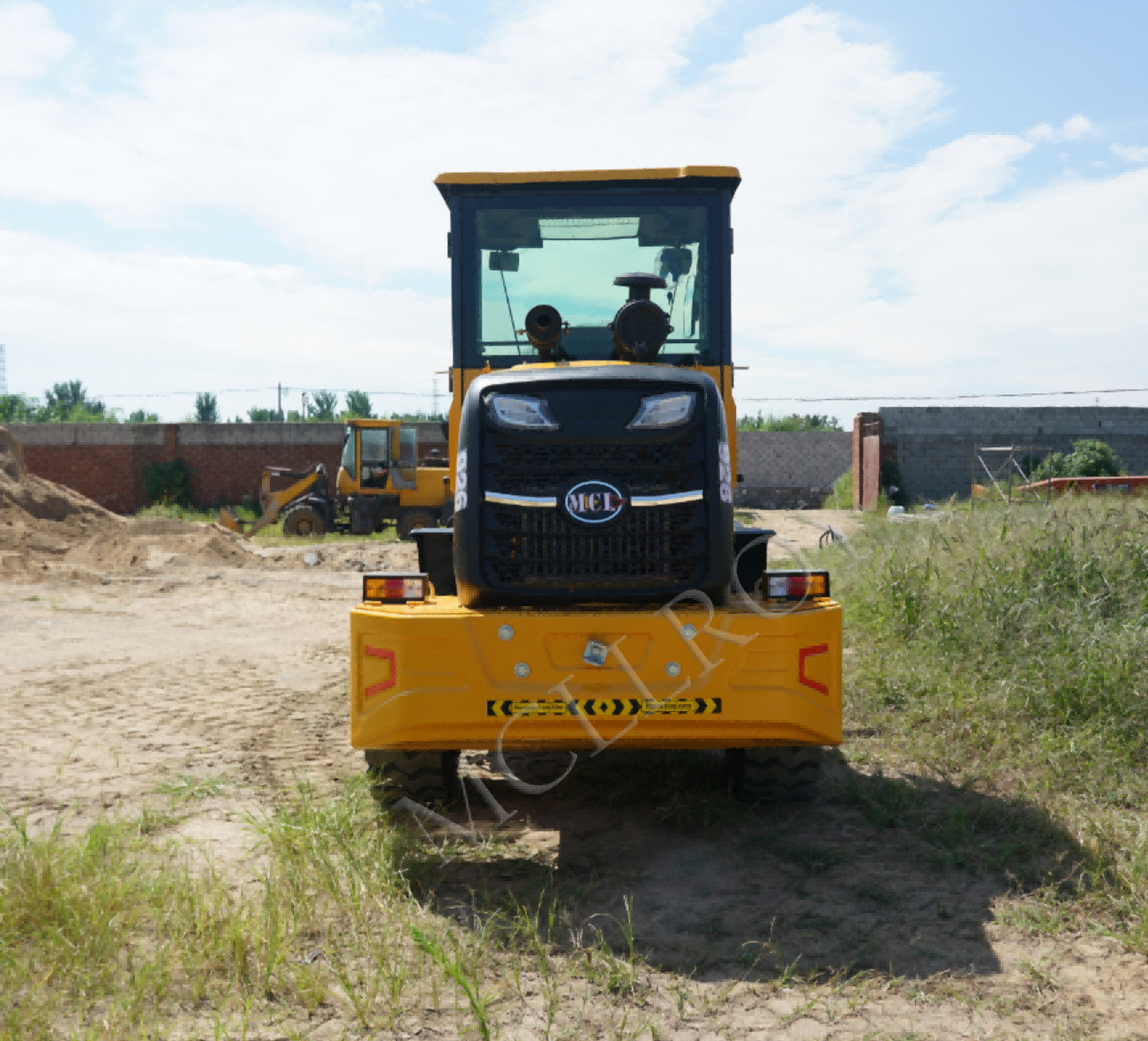

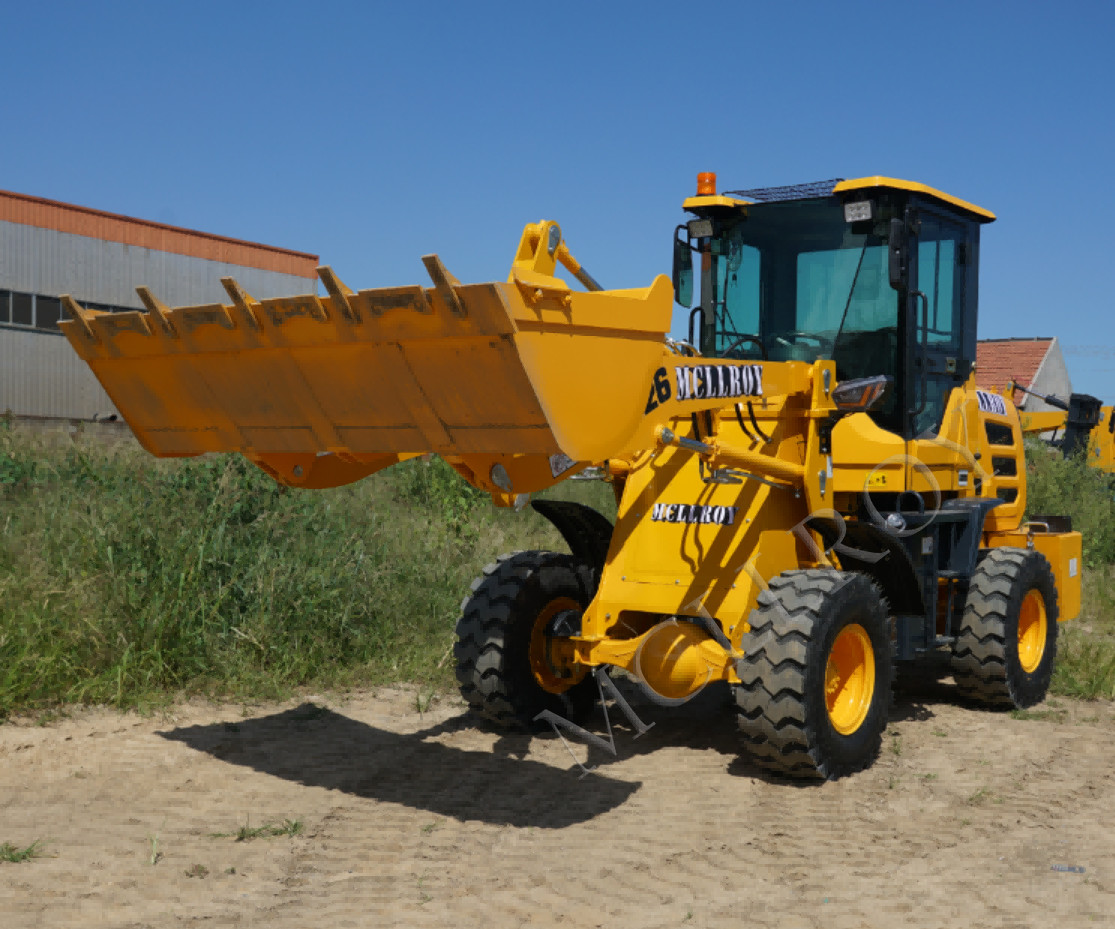

1. Products Description
If you're looking for a small machine with bigger performances,then MCLLROY wheel loader is made for you with its amazing lifting and dumping height and huge breakout force when it is equipped with buckets,or with pallet forks,guaranteed max productivity.
We use Yunnei engine for this loader. Many developing countries do not currently have strict requirements on engine emissions. Therefore, for export to Southeast Asia, we use Yunnei engines. Yunnei engines are relatively stable in performance and affordable, and can be described as the most cost-effective engine among small loaders.
2. Specification
MODEL | MCL 926 | |
ENGINE | Engine Model | Yun Nei 490 |
RPM | 2400 | |
Rated Power | 42 kW | |
Emissions | EU Stage II | |
WEIGHTS | Operating Weight | 3340 kg |
Rated Load | 1500 kg | |
BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
TRANSMISSION | Max. Travel Speed | 28 km/h |
Gear Box | Mechanical Transmission(3F+2R) | |
Axle | Isuzu | |
Axle Base | 2210 mm | |
Brake | Disc Brake | |
HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 340 mm |
Wheel Base | 1400 mm | |
Reach at Max.Dump Height | 3200 mm | |
Dump Reach | ≤ 650 mm | |
Overall Length - With Bucket | 5340 mm | |
Overall Width | 1820 mm | |
Overall Height | 2670 mm |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
3) Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.
4) Complete safety signs.
5) Large steps on the side of the frame also enhance accessibility.
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Material procurement:
For the parts that can be inspected on site, our company has a dedicated quality inspector, such as whether the cylinder is leaking, these can be found out on site, and only qualified parts can be put into the warehouse; for conventional parts, the monthly defective product rate should be less than five in every 1000 parts, if it exceeds, our company sign a punishment agreement with our suppliers. If it exceeds 1%, we will pay $150 less to our supplier, if defect rate exceeds 2%, we will be deduct $300, if it exceeds 3%, we will pay $600 less, and it will double in turn.
with this agreement, suppliers will take it seriously. So in recent years, our company’s after-sales complaints have reduced, and when we offer better quality product, the reputation is getting better, and our customers' business grew with us.
