Place of Origin: | SHANGDONG ,CHINA |
---|---|
Brand Name: | MCLLROY |
Certification: | CE/ISO |
Model Number: | MCL656G 656G |
Minimum Order Quantity: | 1 Set |
Price: | 20000-35000 USD |
Packaging Details: | Nude , 1 sets in 1 40HQ |
Delivery Time: | 10 working days |
Supply Ability: | 30 SETS PER MONTH |
Rated Load: | 5000kg | Operating Weight: | 16700kg |
---|---|---|---|
Rated Bucket Capacity: | 2.7-4.5 M³ | Maximum Tractive Force: | 172KN |
Maximum Breakout Force: | ≥163KN | Maximum Grade Ability: | 30° |
Maximum Dump Height: | 3200mm | Maximum Dump Reach: | 1260mm |
Overall Dimension (L×W×H): | 8247×3060×3410mm | Engine Type: | Lnline Water Cooling Dry Cylinder Injection |
Minimum Turning Radius: | (Bucket Lateral) 5917mm | ||
Highlight: | Medium 5 Ton Wheel Loader,5 Ton Wheel Loader Shovel,Wheel Loader Shovel Multifunctional |

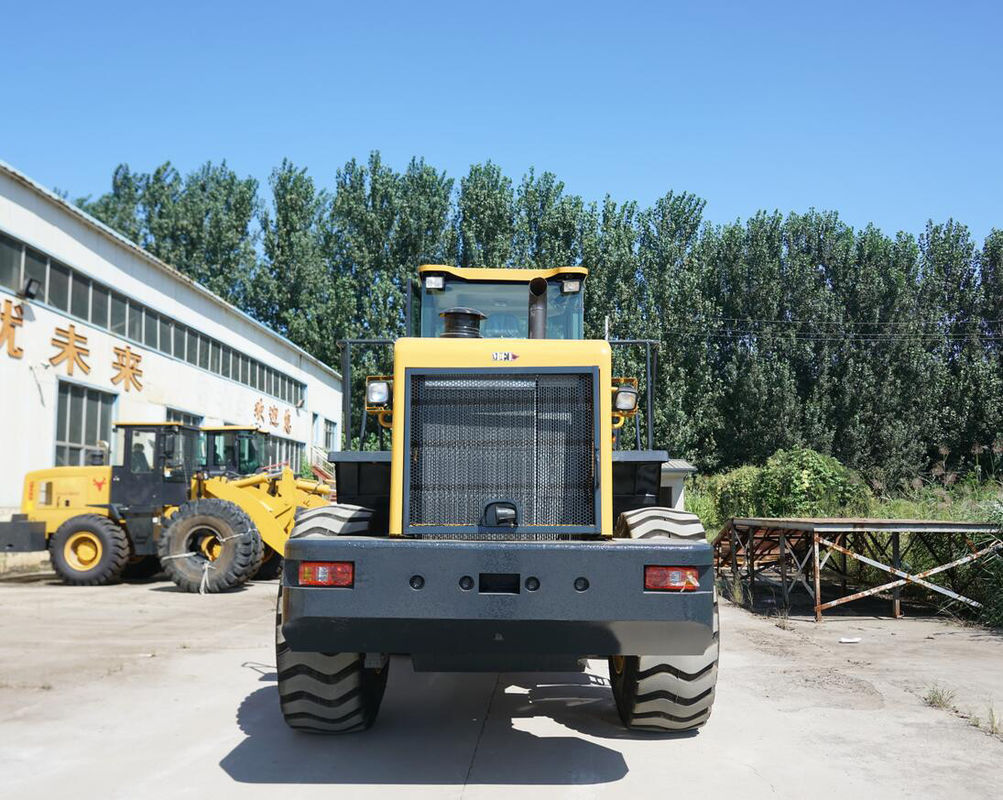

1. General Description
POWERED TO PERFORM
Jobsite adaptability is about giving you the power to get more productivity from your machine, but for less cost and less environmental impact.
DESIGNED TO GET MORE DONE
Jobsite adaptability is about giving you more options to take on multiple tasks and to achieve higher return on your investment.
COMFORT AND SAFETY. NO COMPROMISES.
Climb into our cabs and you can see that they have been designed by someone who has operated a machine in really tough conditions and who knows the importance of comfort and safety.
2. Specification
Model | MCL 656G | |
Performance | rated load | 5000kg |
Operating weight | 16700kg | |
rated bucket capacity | 2.7-4.5 m³ | |
maximum tractive force | 172KN | |
maximum breakout force | ≥163KN | |
maximum grade ability | 30° | |
maximum dump height | 3200mm | |
maximum dump reach | 1260mm | |
overall dimension (L×W×H) | 8247×3060×3410mm | |
minimum turning radius | (Bucket lateral) 5917mm | |
(Tire lateral) 6931mm | ||
Engine | Model | Weichai Steyr WD10G210E22 |
Engine type | lnline water cooling dry cylinder injection | |
No. of cylinder | 6 | |
bore x stroke | 126×130mm | |
rated power | 162kw | |
Speed/min | 2400r/min | |
maximum torque | 920N.m | |
min fuel-consume ratio | ≤215g/kw.h | |
Transmission system | torque converter | YJ375 |
gearbox mode | power shift normally engaged straight gear | |
gear shift | 4 forward shift 4reverse shift | |
maximum speed | 41km/h |
3. Details and Advantages
LOCKED ON VERSATILITY
Our quick coupler lives up to its name and turns your wheel loader into a powerful multi-functional tool in seconds. It allows your operators to select, lock on and utilize attachments quickly and safely from the comfort of the cab, helping you do more and earn more.
NEW Z-BAR LINKAGE
Careful distribution of stress loads increases the Z-bar’s tolerance significantly. Improved Z-bar geometry enhances bucket breakout force, operator visibility, loading stability and speed.
ADVANCED LOAD SENSING HYDRAULICS
MCLLROY’s new-generation advanced hydraulic system adapts itself to any job, organizing the mechanical, electrical and hydraulic systems to work in perfect harmony.
Adaptive technology perfectly matches the hydraulic flow with the machine’s operation. Power is only supplied as needed, ensuring superior control of both the boom and the attachment
enabling the operator to complete a variety of demanding tasks with precision and efficiency.
4. Delivery
The most important thing for delivery is the stability. The climate at sea is unpredictable. If the reinforcement is improper, it will cause damage to the machine during transportation. For example, if the lifting boom is not properly reinforced, it will cause the boom to fall, smash the cab, and smash the glass.
The shipping process for MCLLROY is as follows:
1. Tool box put in the loader.
2. Seat and control panel warp in PVC.
3. Warning lights put in the loader.
4. Drive the loader inside the Container.
5. Stabilize the loader with heavy steel rope.
6. Fasten triangles wood in bottom of tires.
7. Close and seal the door ready for shipment.
