Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL930 ZL930 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Condition: | New | Moving Type: | Wheel Loader |
|---|---|---|---|
| Engine Power: | 42kw | Rated Load: | 1600KG |
| Bucket Capacity: | 1cbm | Dumping Height: | 3200mm |
| Dimension(long * Breadth * High): | 5500*1620*2750mm | Machine Weight: | 3500KG |
| Engine Model: | YN490 | Speed/min: | 2400 |
| Gear Box: | CVT | Axle: | Small Hub |
| High Light: | Multipurpose 1.5 Ton Wheel Loader,1.5 Ton Wheel Loader Small,Small End Loader 1800kg |
||
1. Products Description
We need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

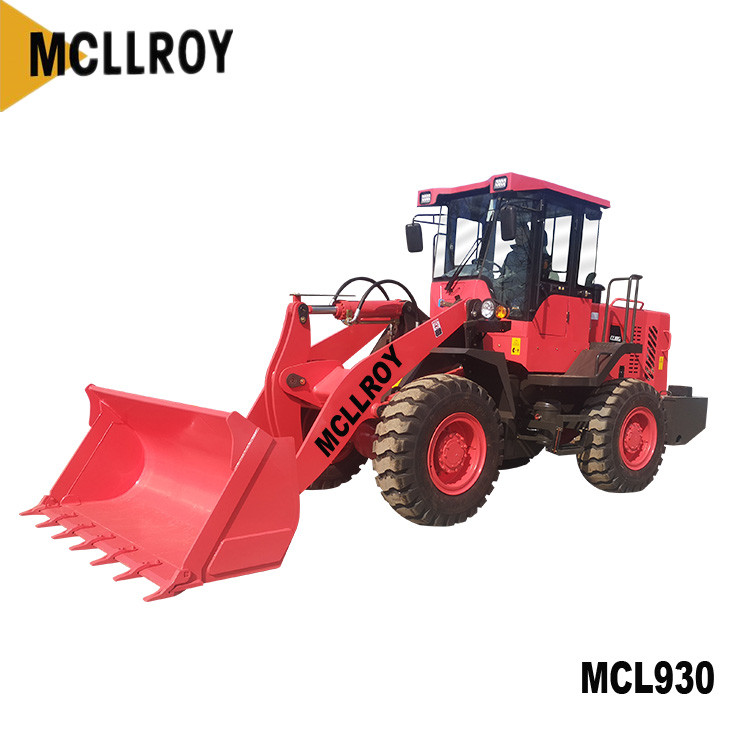

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| Model | Metric Unit | MCL930 ZL930 |
|
| Rated power | kw | 42 | |
| Rated Load | kg | 1600 | |
| Bucket Capacity | m³ | 1.0 | |
| Max.Dump Clearance | mm | 3200 | |
| Overall Size (L*W*H) | mm | 5500*1620*2750 | |
| Operating Weight | kg | 3500 | |
| Engine Model | YN490 | ||
| Engine speed/min | rpm | 2400 | |
| Dump Reach | mm | 1350 | |
| Gear Box | CVT | ||
| Axle | Small hub | ||
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:Precision hydraulic cylinder and the fourth generation hydraulic transmission system give large breakout force for earth-moving work.
4. Inspection
The inspection is as important as any other procedure. MCLLROY technicians usually need to inspect the followings (Part I):
1) Adjust the tire pressure, drive the loader to the inspection platform, to see if the bucket is level to the ground when it is on the ground.
2) Check if the hydraulic oil is enough, and then lift the arm, withdraw the bucket and check the hydraulic oil level again, check the hydraulic oil tank scale (scale at 11 to 13 means enough)
3) Check if any bolts are loose or missing, and if there is a oil leaking problem.
4) Check the track width to see if it is different from standard.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
