| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL936 ZL936 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Engine Model: | Yun Nei 4100 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 65kW | Emissions: | EU Stage II |
| Operating Weight: | 4880 Kg | Rated Load: | 2500 Kg |
| Overall Length - With Bucket: | 5600 Mm | Overall Width: | 2060 Mm |
| Overall Height: | 2860 Mm | Tyre Size: | 1670-20 |
| Breakout Force: | ≥ 50 KN | Joystick: | Mechanical |
| Min. Turning Radius: | ≤ 7000 Mm | Hour Meter: | Yes |
| Tool Box: | Yes | Dual Hight&Low Speed Handle: | Yes |
| High Light: | Garden Smallest Wheel Loader,2.5 Ton Smallest Wheel Loader,65kW Agriculture Wheel Loader |
||

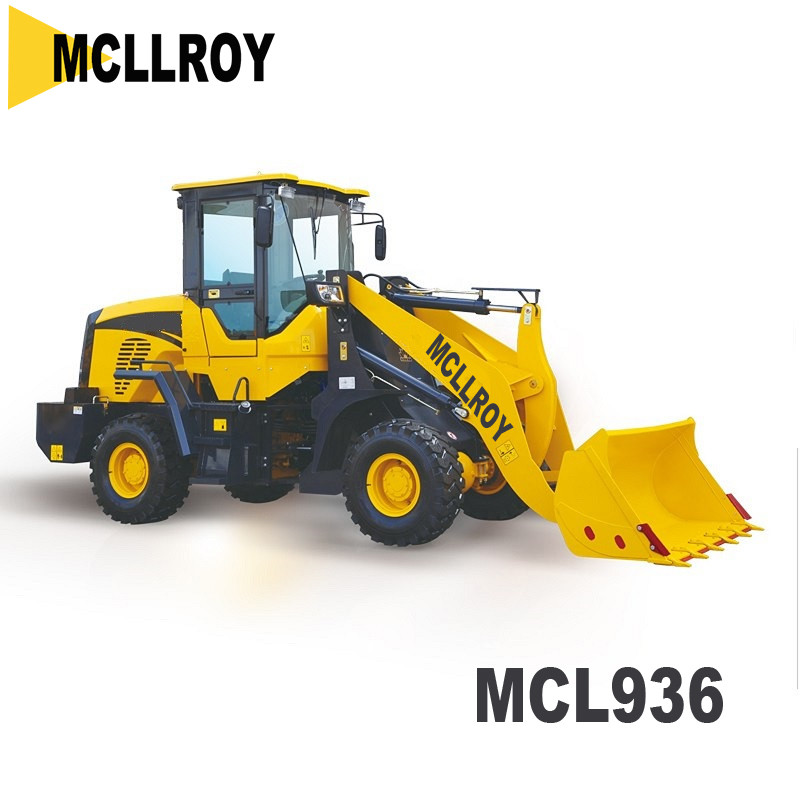

1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MODEL | MCL 936 | |
| ENGINE | Engine Model | Yun Nei 4100 Supercharged |
| RPM | 2400 | |
| Rated Power | 65 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 4880 kg |
| Rated Load | 2500 kg | |
| BUCKETS | Bucket Capacities | 1.1 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
|
| Alex | Middle hub | |
| Axle Base | 2220 mm | |
| Brake | Disc Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 410 mm |
| Wheel Base | 1510 mm | |
| Reach at Max.Dump Height | 3450 mm | |
| Dump Reach | 600 mm | |
| Overall Length - With Bucket | 5600 mm | |
| Overall Width | 2060 mm | |
| Overall Height | 2860 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 1670-20 |
| Breakout Force | ≥ 50 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 7000 mm | |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes | |
| Dual Hight&Low Speed Handle | Yes | |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option | |
| Multifunctional Attachment | Option | |
| Hydraulic Pilot | Option | |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The thickened frame has strong impact resistance and remarkable passing performance, enabling the loader to pass unimpeded in the difficult working environment.
3) Cab:Large space in the H-series cab The low-noise and shock-absorbing cab
4) The brake caliper is exposed to facilitate servicing.
5) The bucket with high wear-resistant material even is used for stone.
4. Inspection
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts, track width ,dashboard , electrical system and road testing , MCLLROY technicians usually need to inspect the followings(Parts IV) :
Document :the user manual, loader certificate, engine certificate maintenance guide and warranty, we put them inside the cab. The worker then put the stickers like safety warning signs and on the loader.
And now, loader is ready to deliver.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
